IP Control » LANKON-094
4 x Relay board v3 with DIN rail mount for Lan Controller
[LANKON-094]
Price: 13,65€
 Order or Qty  Price
 > 500€  5+   13,38€
 > 1000€  10+   13,10€
 > 2000€  20+   12,83€
 > 5000€  40+   12,56€
 > 10000€  100+   12,29€
Prices exclude VAT

4 x Relay board v3 with DIN rail mount for Lan Controller

In Stock: 4
Order Qty:

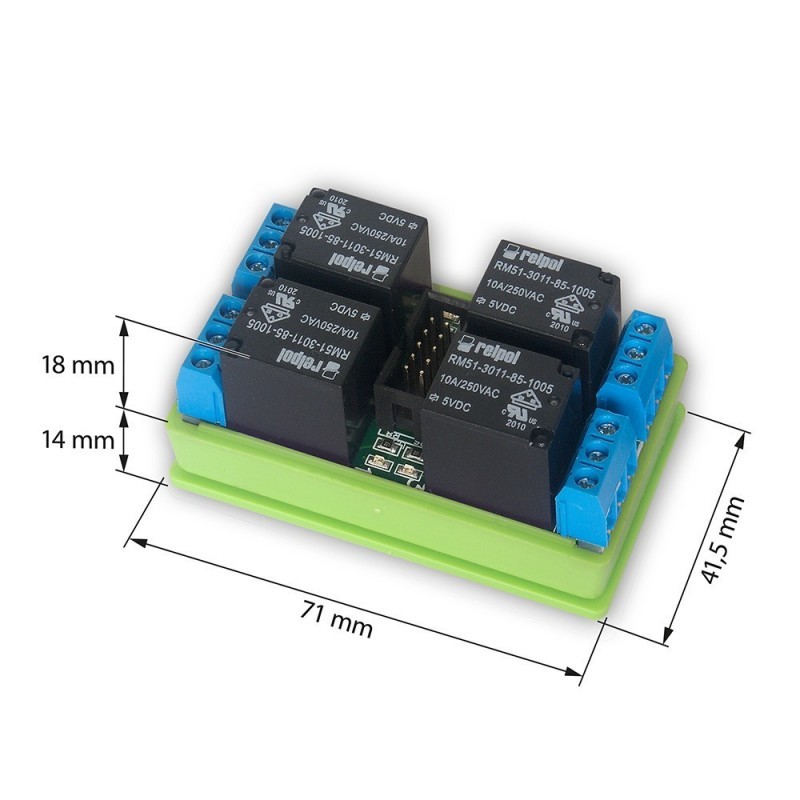

4 x Relay board 10A with DIN rail mount       ***Not compatible with Lan Controller v2 and older***

Once connected to either the Lan Controller v2.5 / v3.0 or GSM Controller v3.0  each relay can be independently turned on/off.

Main application is managing by up to four electric devices.

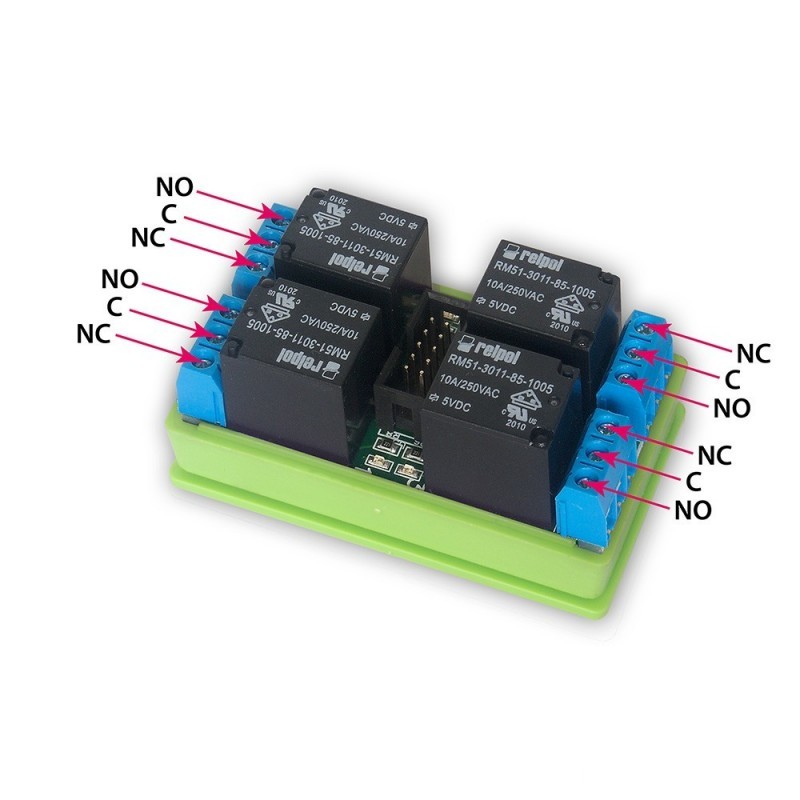

Present LED’s for state signalling. Relay have one switched output available on terminal: NO,COM, NC.

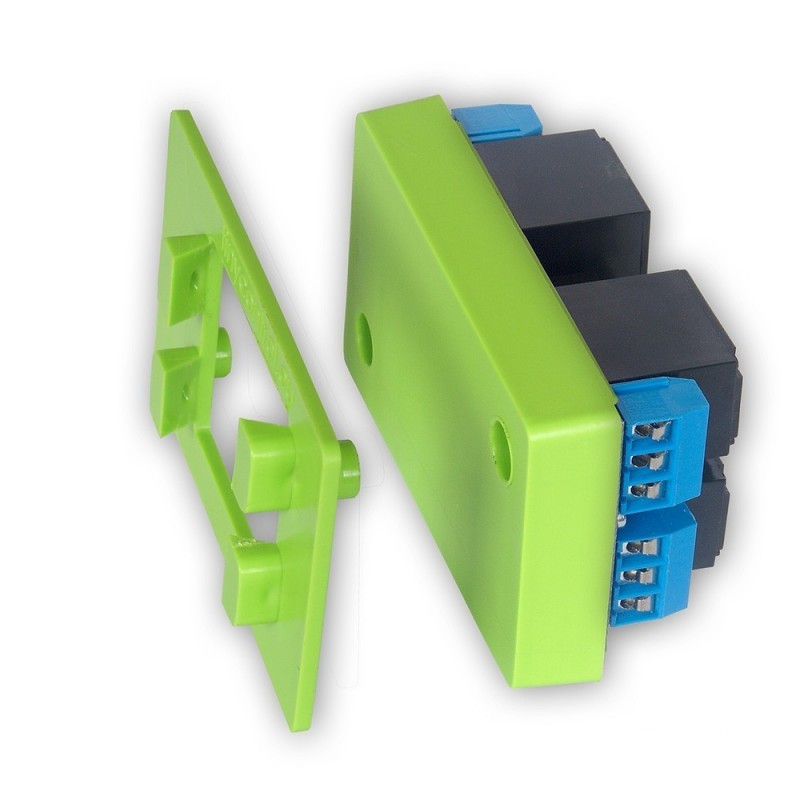

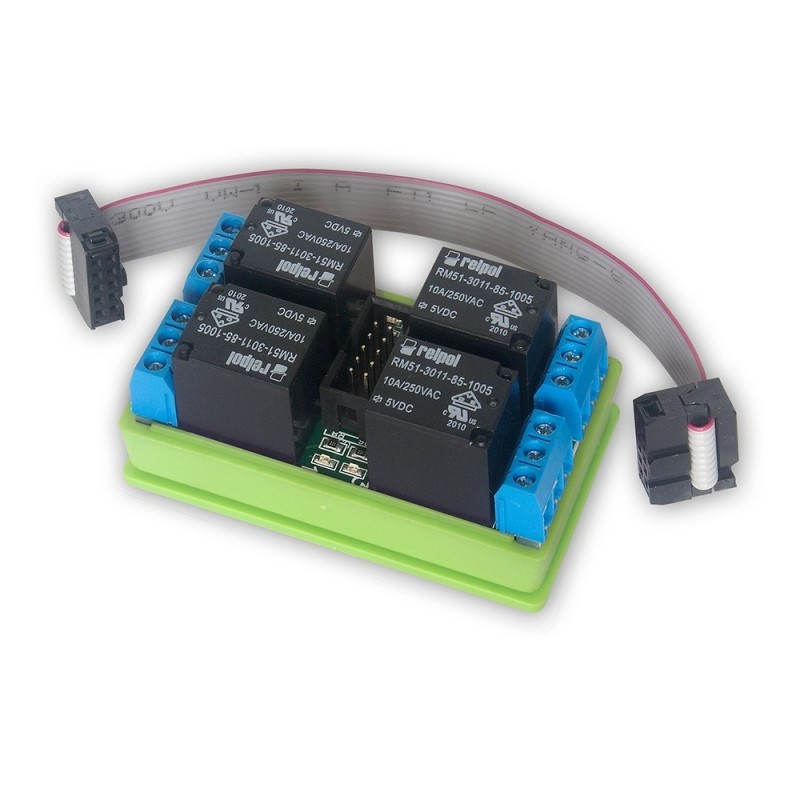

Board is offered on plastic support with DIN holder and 10cm long ribbon with connectors for connecting to Lan Controller.

Specifications:
Relays 4 x Relpol RM50
Max load @230VAC 10A
Max load @24VDC 15A
Coil voltage 5v
Contact plating AgSnO2
DIN mount Plastic Case


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
