Electronics » Relay » IOT-SSR-25DA
SSR-25DA FOTEK 25A Output AC24-380V Solid State Relay
[2005][IOT-SSR-25DA]
Price: 2,72€
 Order or Qty  Price
 > 500€  5+   2,67€
 > 1000€  10+   2,61€
 > 2000€  20+   2,56€
 > 5000€  40+   2,50€
 > 10000€  100+   2,45€
Prices exclude VAT

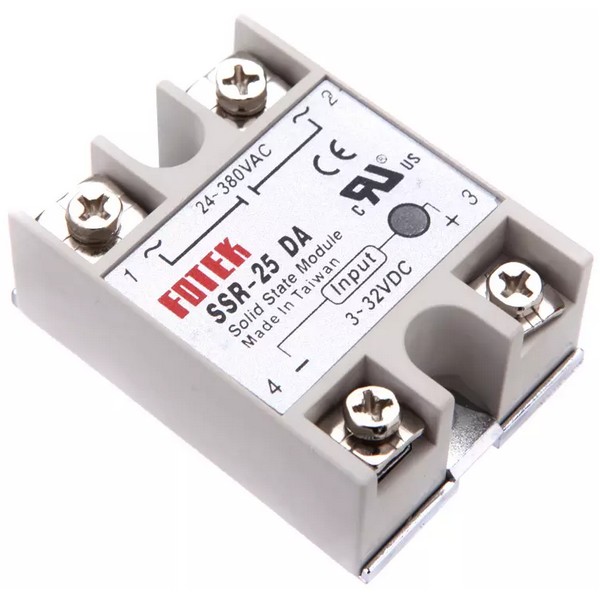

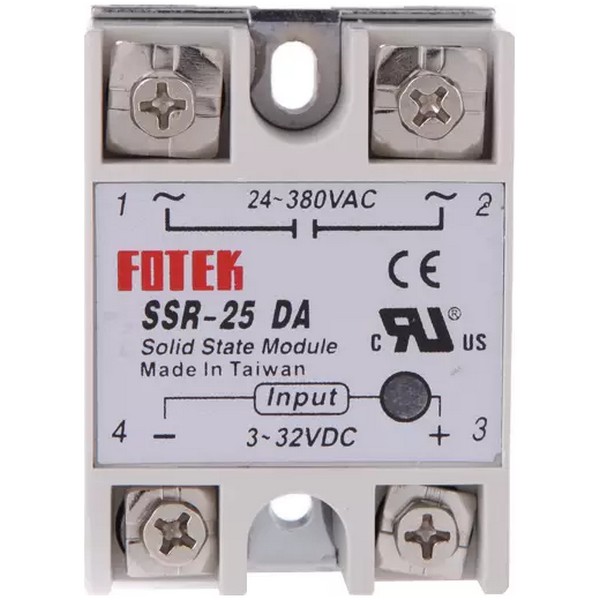

SSR-25DA FOTEK 25A Output AC24-380V Solid State Relay

No Stock
Order Qty:

SSR-25DA SSR Solid-state Solid State Relay 25A output AC24-380V

Features:

  • 25A Solid State Relay for PID Temperature Controller.
  • Long service life and high reliability.
  • Highly reliable, compact size designed to offer users maximum simplicity.
  • Fast switching.
  • Reduced electromagnetic interference.

Specifications
Control mode:  DC-AC
Loading current: 25A
Loading voltage: 24 - 380VAC
Control voltage: 3 - 32VDC
Control current:  3-25MaDC
On voltage: ≤1V
One-off Time:  ≤10ms
Off leakage Current: ≤2Ma
Dielectrics voltage-resistance: 2500VAC
Insulation resistance:  500MΩ/500VDC
Installation method:  Bolt fixation
Environment temperature:  -30℃-+75℃
Working indicator:  LED
Color:  Off White

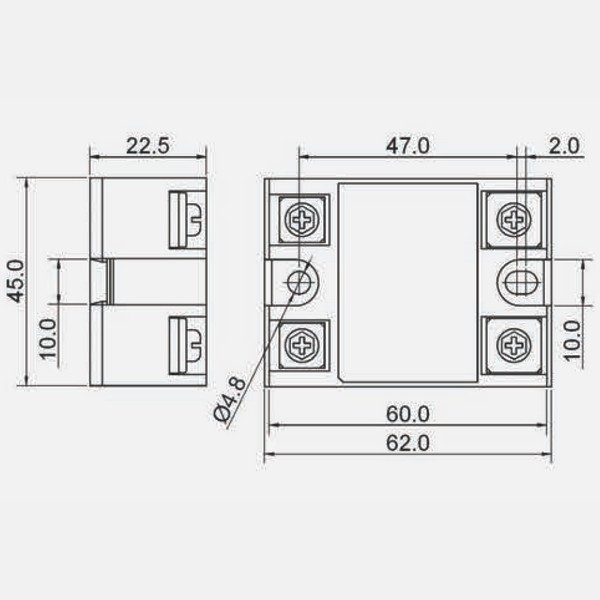

Item size:  60x45x23mm
Net weight:   97g


Additional Images:
