Internet of Things » Relay » IOT-SSR-40DA

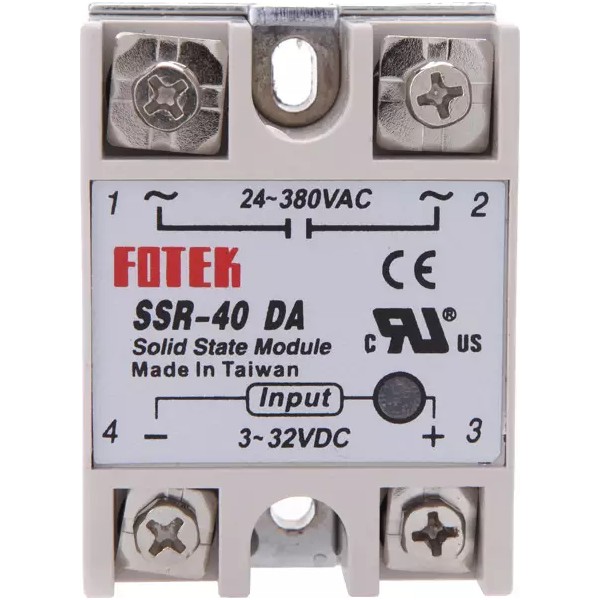

SSR-40DA FOTEK 40A Output AC24-380V Solid State Relay
[IOT-SSR-40DA]
Price: 3,44€
 Order or Qty  Price
 > 500€  5+   3,37€
 > 1000€  10+   3,30€
 > 2000€  20+   3,23€
 > 5000€  40+   3,16€
 > 10000€  100+   3,10€
Prices exclude VAT

SSR-40DA FOTEK 40A Output AC24-380V Solid State Relay
No Stock
Order Qty:

SSR-40DA SSR Solid-state Solid State Relay 40A output AC24-380V

Features:

  • 40A Solid State Relay for PID Temperature Controller.
  • Long service life and high reliability.
  • Highly reliable, compact size designed to offer users maximum simplicity.
  • Fast switching.
  • Reduced electromagnetic interference.

Product Links:
Product Page Product Page   Datasheet Datasheet

Specifications
Control mode:  DC-AC
Loading current: 40A
Loading voltage: 24 - 380VAC
Control voltage: 3 - 32VDC
Control current:  3-25MaDC
On voltage: ≤1V
One-off Time:  ≤10ms
Off leakage Current: ≤2Ma
Dielectrics voltage-resistance: 2500VAC
Insulation resistance:  500MΩ/500VDC
Installation method:  Bolt fixation
Environment temperature:  -30℃-+75℃
Working indicator:  LED
Color:  Off White

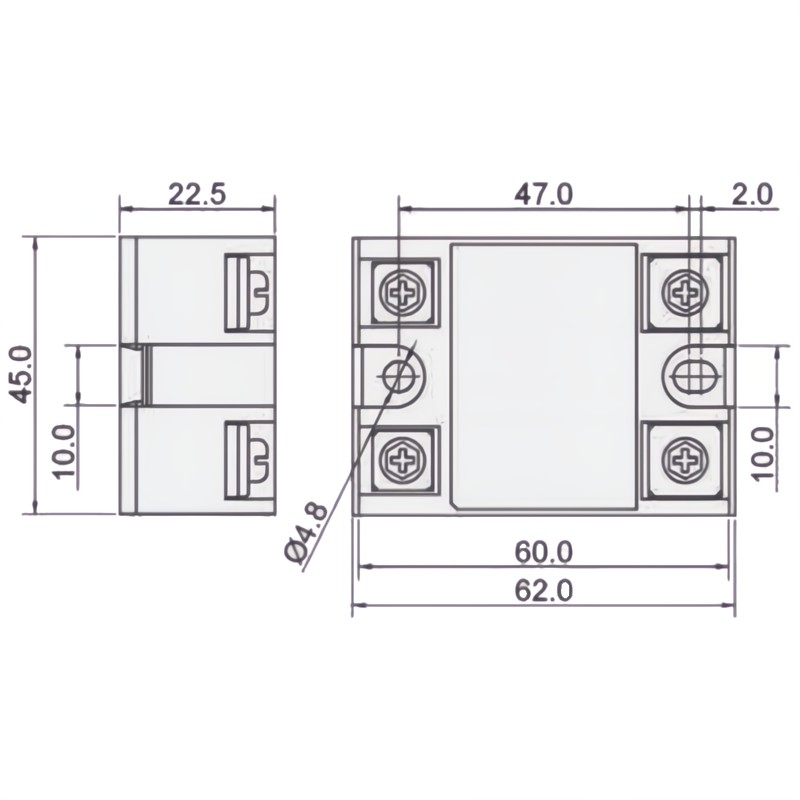

Item size:  60x45x23mm
Net weight:   97g

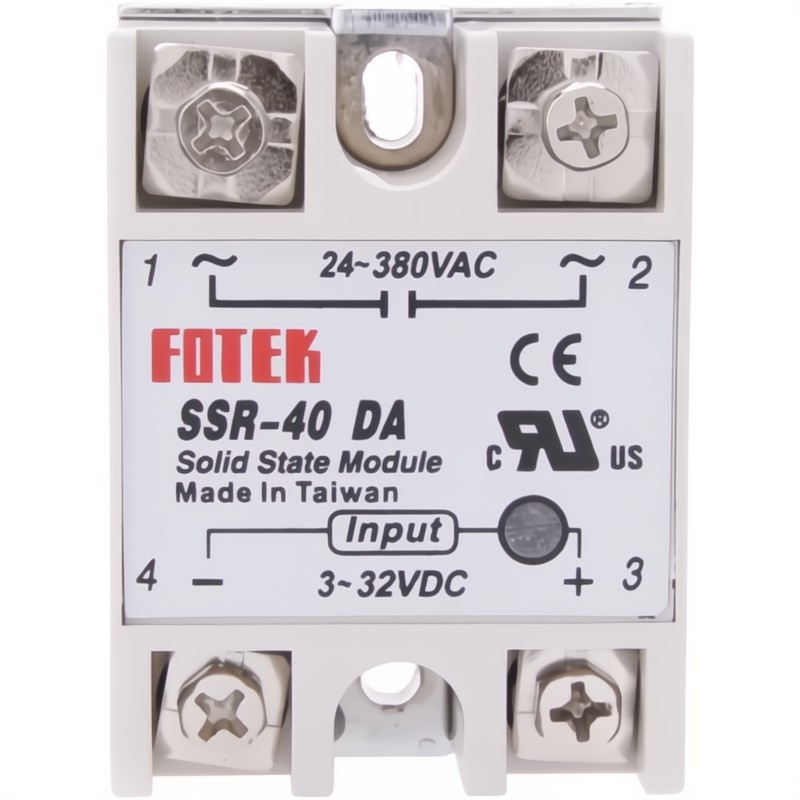

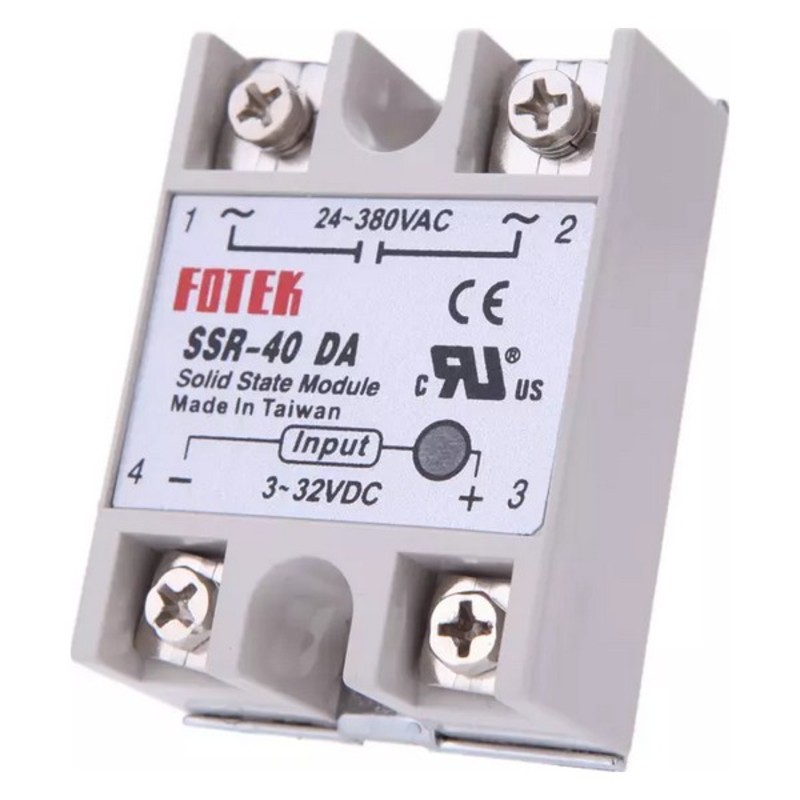

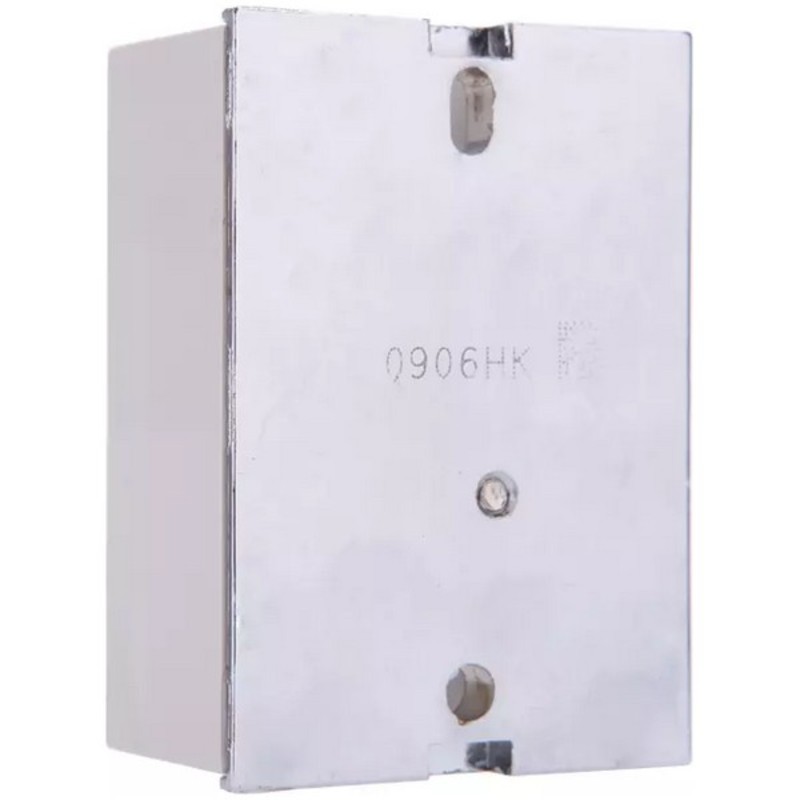

Additional Images:


Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
