Electronics » Relay » IOT-BEM-40DA
BEM-40DA BERME 40A Output AC24-380V Solid State Relay
[2097][IOT-BEM-40DA]
The product is
no longer available
Prices exclude VAT

BEM-40DA BERME 40A Output AC24-380V Solid State Relay

BEM-40DA

Features:

  • 40A Solid State Relay for PID Temperature Controller.
  • Long service life and high reliability.
  • Highly reliable, compact size designed to offer users maximum simplicity.
  • Fast switching.
  • Reduced electromagnetic interference.
Specifications
Control mode:  DC-AC
Loading current: 40A
Loading voltage: 24 - 380VAC
Control voltage: 3 - 32VDC
Control current:  3-25MaDC
On voltage: ≤1V
One-off Time:  ≤10ms
Off leakage Current: ≤2Ma
Dielectrics voltage-resistance: 2500VAC
Insulation resistance:  500MΩ/500VDC
Installation method:  Bolt fixation
Environment temperature:  -30℃-+75℃
Working indicator:  LED
Color:  Blue

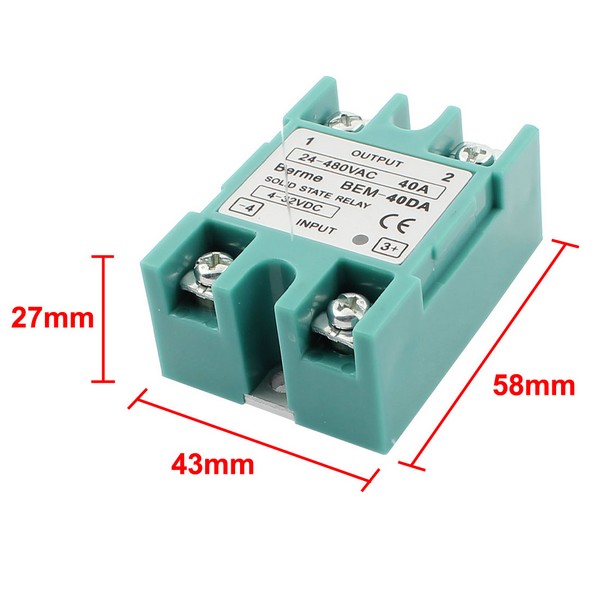

Item size:  60x45x23mm
Net weight:   97g

Package Contents:
1 x BEM-40DA

Additional Images:
Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
