Product Details
Code:3563
SKU:EARU-SSR-25DA
UPC:728615668933
Single unit:5×4×3cm, 15 g
Return Policy
Refund:20 days
Store Credit:40 days
Warranty:12 months
Package Contents:
1 x EARU SSR-25DA

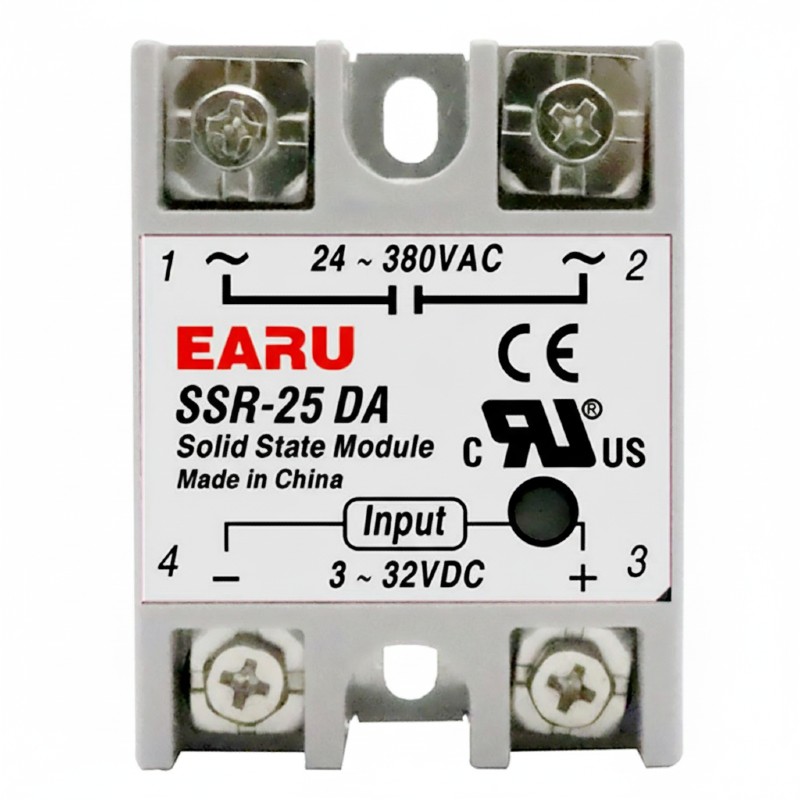

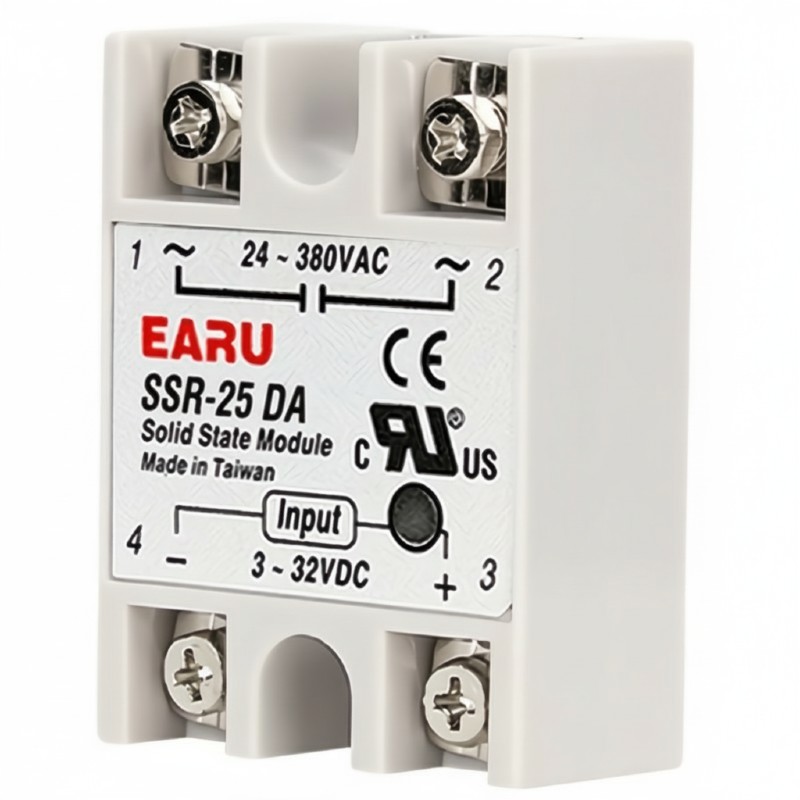

EARU SSR-25DA, 25A Output AC24-380V Solid State Relay

SSR-25DA SSR Solid-state Solid State Relay 25A output AC24-380V

Features:

  • 25A Solid State Relay for PID Temperature Controller.
  • Long service life and high reliability.
  • Highly reliable, compact size designed to offer users maximum simplicity.
  • Fast switching.
  • Reduced electromagnetic interference.

Specifications:
Control mode:  DC-AC
Loading current: 25A
Loading voltage: 24 - 380VAC
Control voltage: 3 - 32VDC
Control current:  3-25MaDC
On voltage: ≤1V
One-off Time:  ≤10ms
Off leakage Current: ≤2Ma
Dielectrics voltage-resistance: 2500VAC
Insulation resistance:  500MΩ/500VDC
Installation method:  Bolt fixation
Environment temperature:  -30℃-+75℃
Working indicator:  LED
Color:  Off White

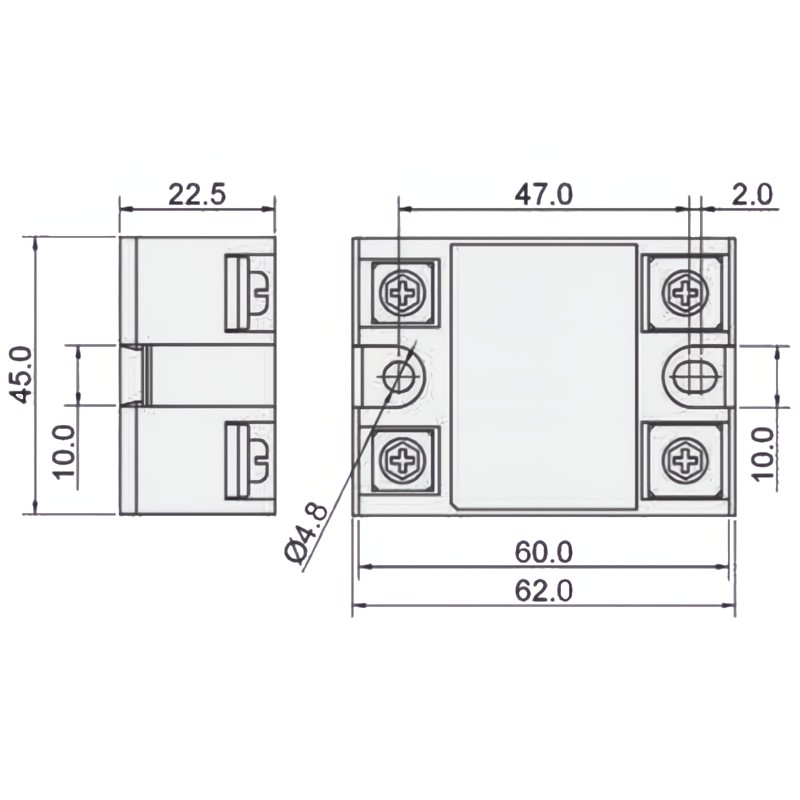

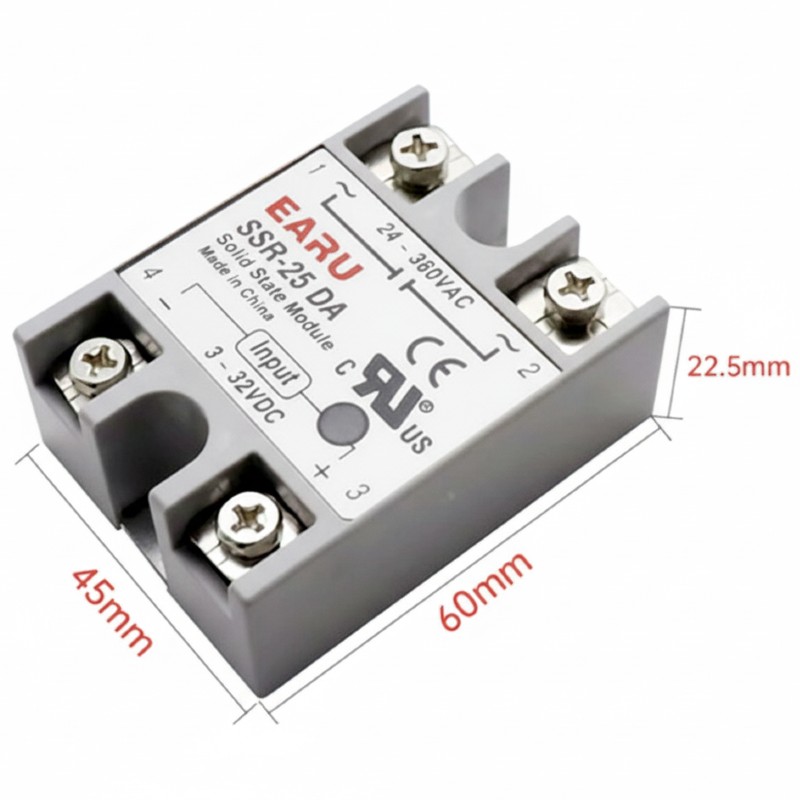

Item size:  60x45x23mm
Net weight:   97g
