DHT11 1-Wire PCB Temperature / Humidity Sensor
[1789][DHT11PCB]
Price: 1,50€
 Order or Qty  Price
 > 500€  5+   1,47€
 > 1000€  10+   1,44€
 > 2000€  20+   1,41€
 > 5000€  40+   1,38€
 > 10000€  100+   1,35€
Prices exclude VAT

DHT11 1-Wire PCB Temperature / Humidity Sensor

In Stock: 1
Order Qty:
UPC:8596425083862

DHT11 Temperature/Humidity Sensor

DHT11 output calibrated digital signal. It utilizes exclusive digital-signal-collecting-technique and humidity sensing technology, assuring its reliability and stability. Its sensing elements is connected with 8-bit single-chip computer.
Every sensor of this model is temperature compensated and calibrated in accurate calibration chamber and the calibration-coefficient is saved in OTP memory.

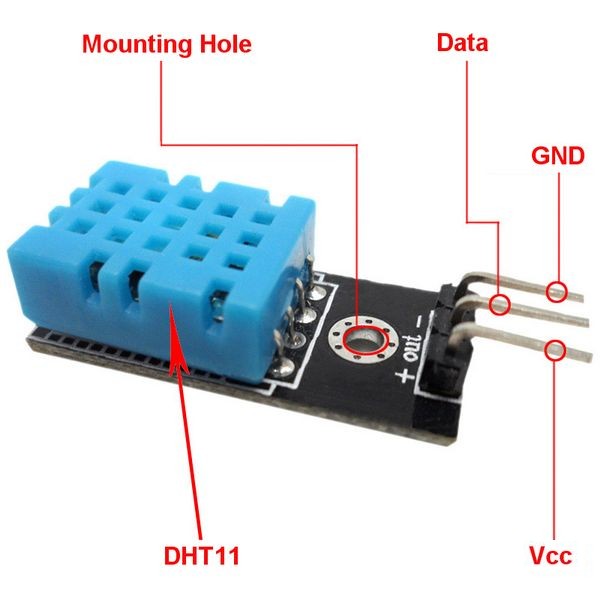

Small size & low consumption & long transmission distance(20m) enable DHT11 to be suited in all kinds of harsh application occasions. Single-row packaged with four pins, making the connection very convenient

Specifications
Sensor DHT11
Power supply
3-5.5V DC
Sensing element Polymer resistor
Measuring
range
humidity 20-90%RH
temperature0-50 Celsius
Sensing period
Average: 2s
Dimensions 32*15.5*6.5mm
