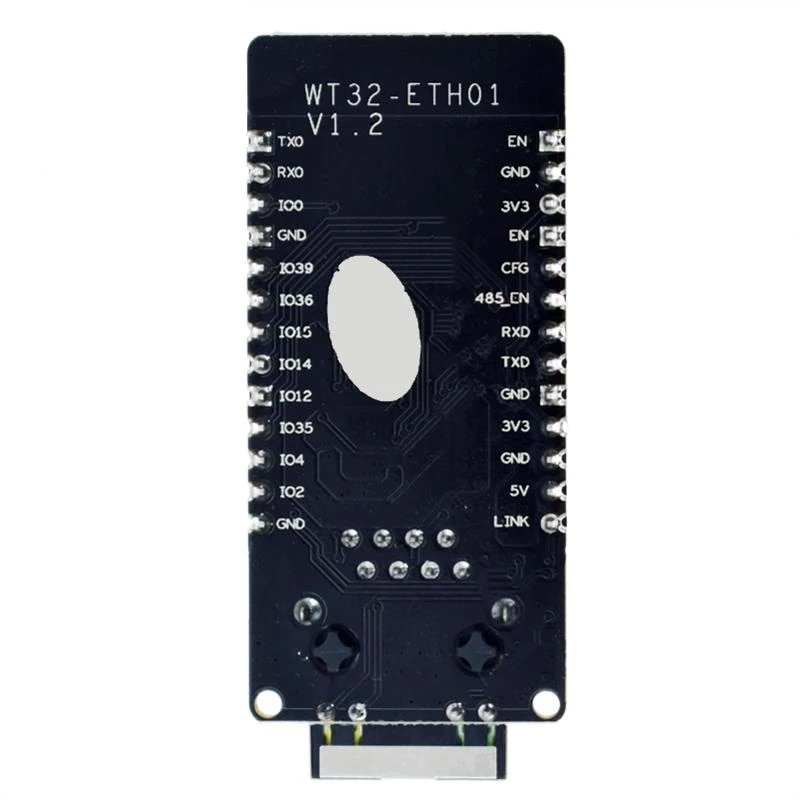

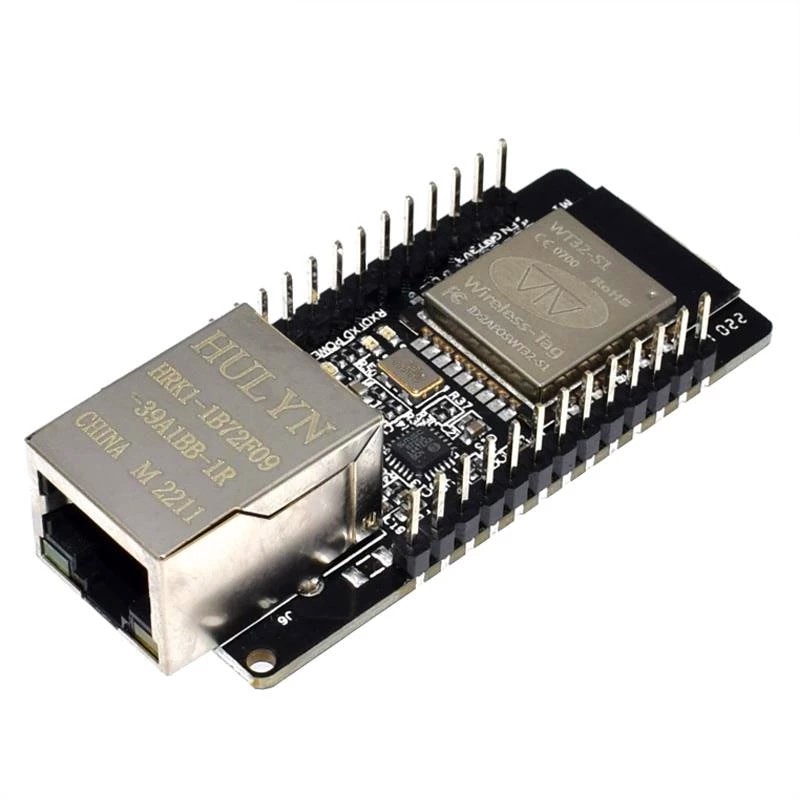

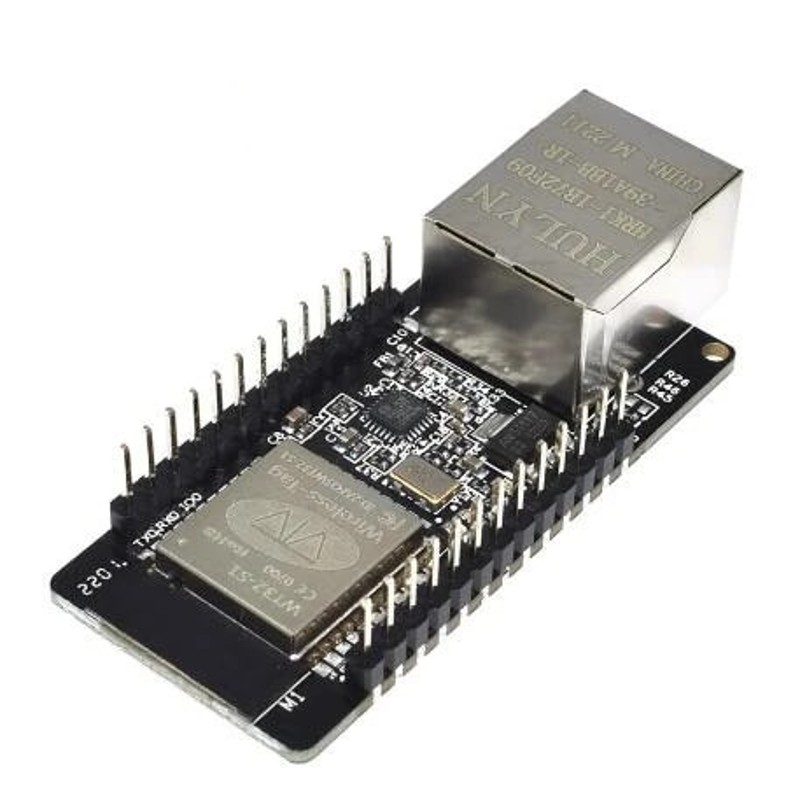

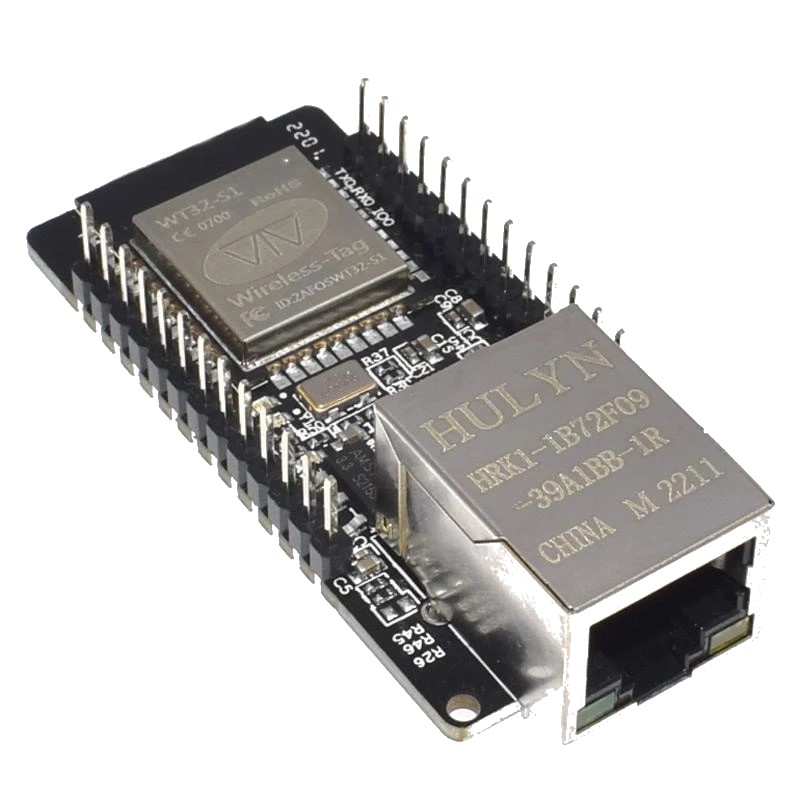

WT32-ETH01 is an embedded serial port to Ethernet module based on ESP32 series.
The module integrates an optimized TCP/IP protocol stack, which is convenient for users to easily complete the networking function of embedded devices.
In addition, the module is compatible with half-pad and connector through-hole design. The board width is a general width.
The module can be directly soldered on the board, or the connector can be soldered, and it can also be used on a breadboard, which is convenient for users to use in different scenarios. .
ESP32 series ICs are SOCs that integrate 2.4GHz Wi-Fi and Bluetooth dual-mode, with ultra-high RF performance, stability, versatility and reliability, as well as ultra-low power consumption.
|
Specifications: |
|
Part# |
WT32-ETH01 |
|
CPU |
ESP32 |
|
ETH |
LAN8720A |
|
WiFi |
2.4GHz - WiFi4 |
|
Bluetooth |
Yes |
|
PoE |
NO |
|

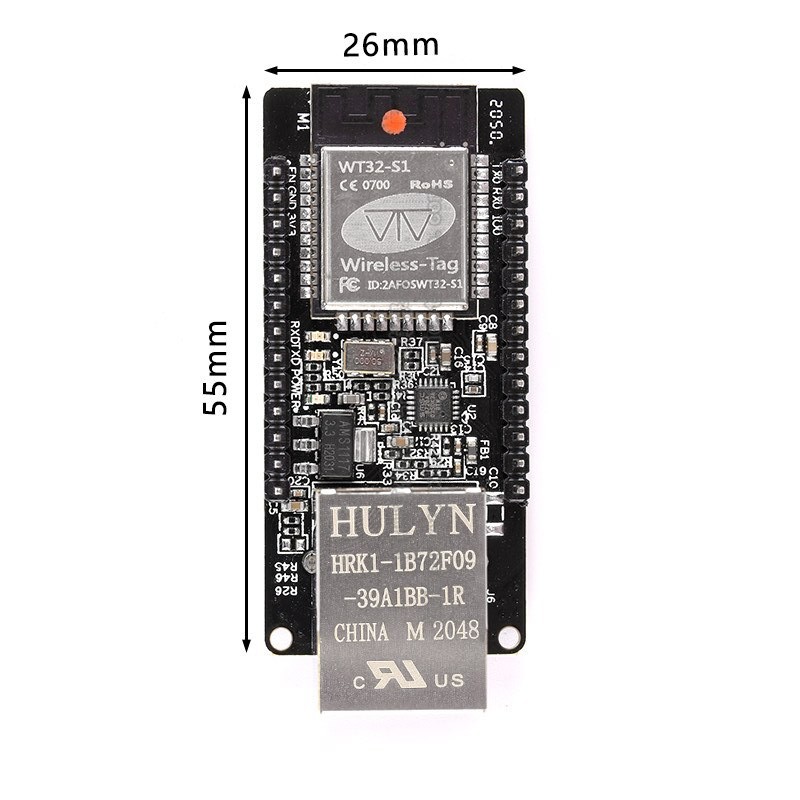

Dims |
55x26x18mm |
|
Weight |
100gr |
| Package Contents: |
|---|
| 1 x WT32-ETH01 - ESP32 ethernet board
|
| 2 x 13 PIN male header |
|
