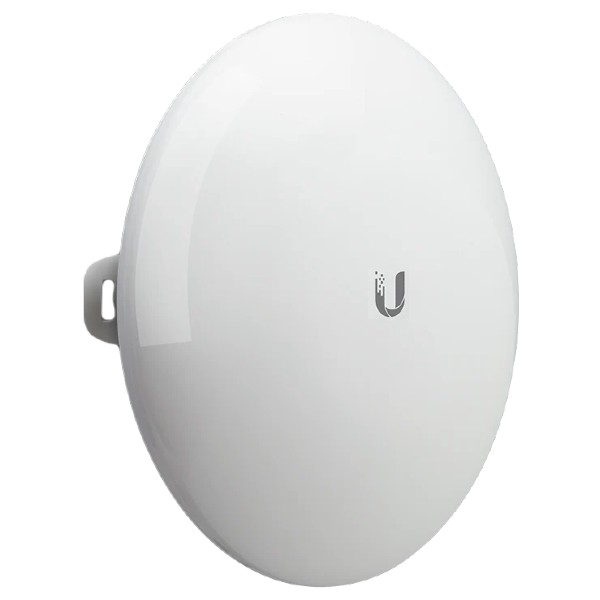

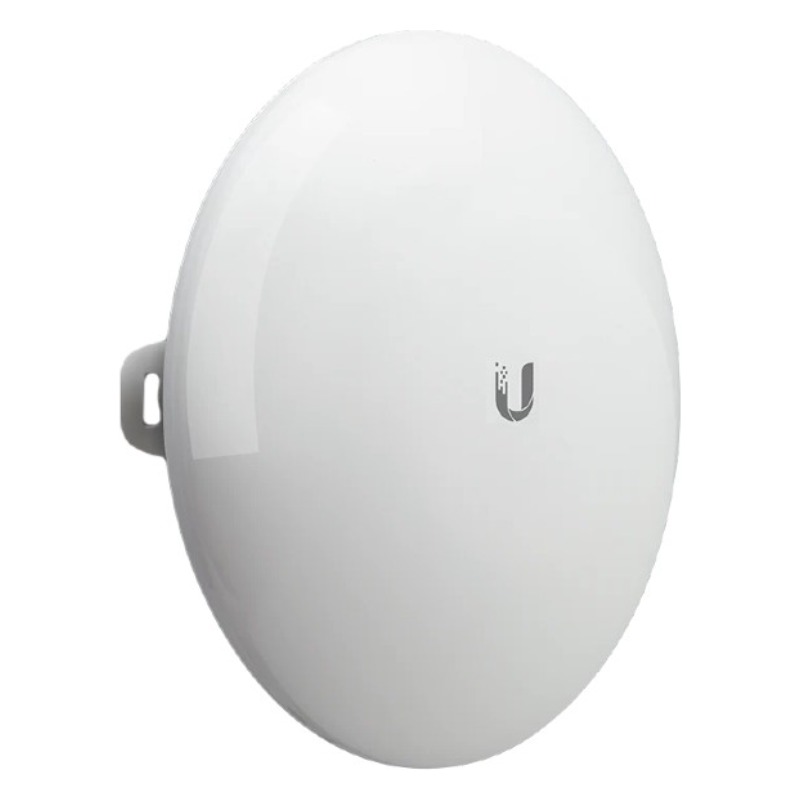

NBE-M5-16 - UISP airMAX NanoBeam M5 16 dBi
The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
All-in-one design The NanoBeam provides both the radio and antenna in the smallest possible footprint.

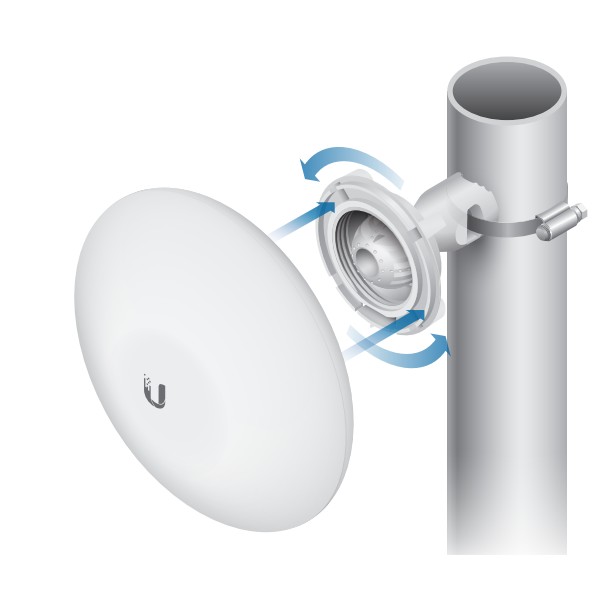

Quick and easy installation No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting.
Efficient footprint The radio and antenna are combined into a single body that takes up minimal space.
Versatile mounting The NanoBeam can be mounted in almost any position needed for line of sight.
|
Specifications |
|
Dimensions |
140 x 140 x 54 mm |
|
Weight |
320 g |
|
Enclosure material |
Outdoor UV-stabilized plastic |
|

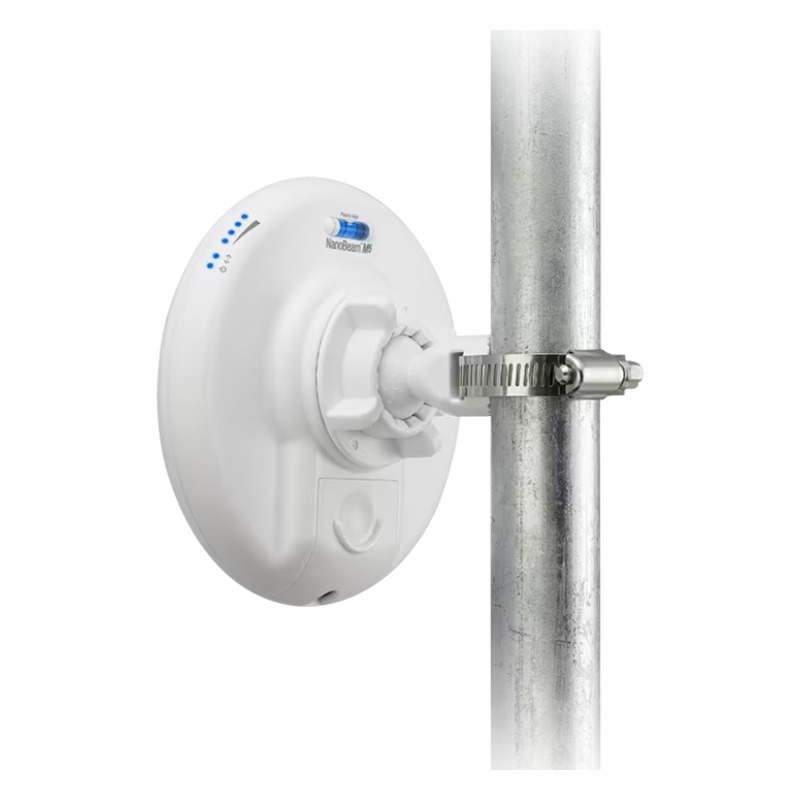

Mounting |
Pole-mount (Kit included), wall-mount |
|
Wind loading |
21.4 N @ 200 km/h |
|
Wind survivability |
200 km/h |
|
Hardware & Power |
|

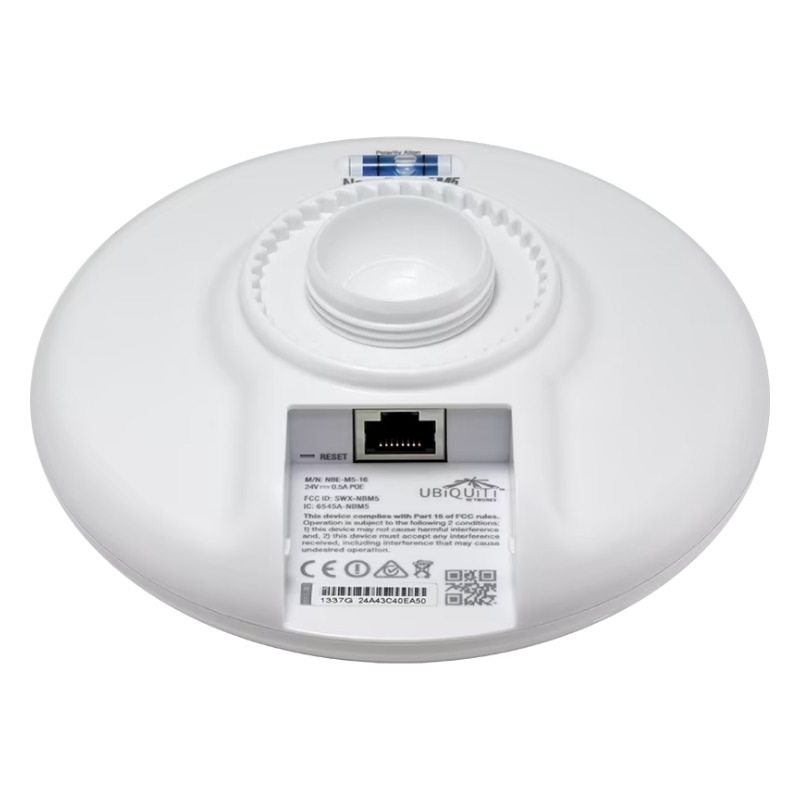

Networking interface |
(1) 10/100 MbE RJ45 port |
|
Power method |
Passive PoE 2-pair (4, 5+; 7, 8 return) |
|
Power supply |
24V, 0.5A PoE adapter (Included) |
|
Supported voltage range |
20–27V DC |
|
Max. power consumption |
6W |
|
ESD/EMP protection |
Air/contact: ± 24 kV |
|

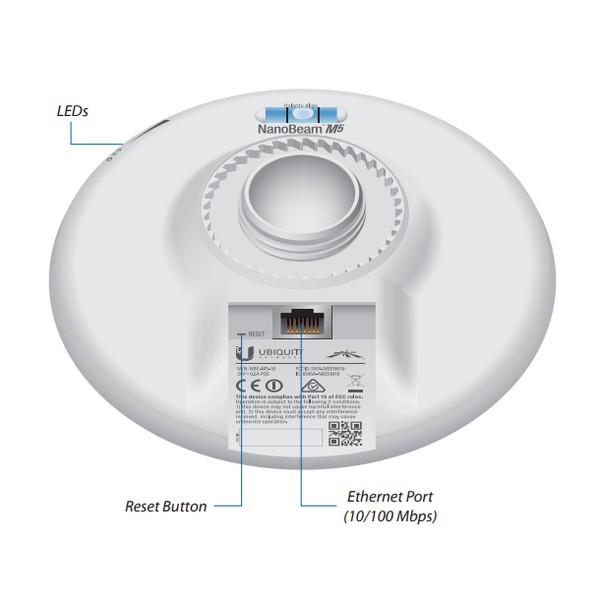

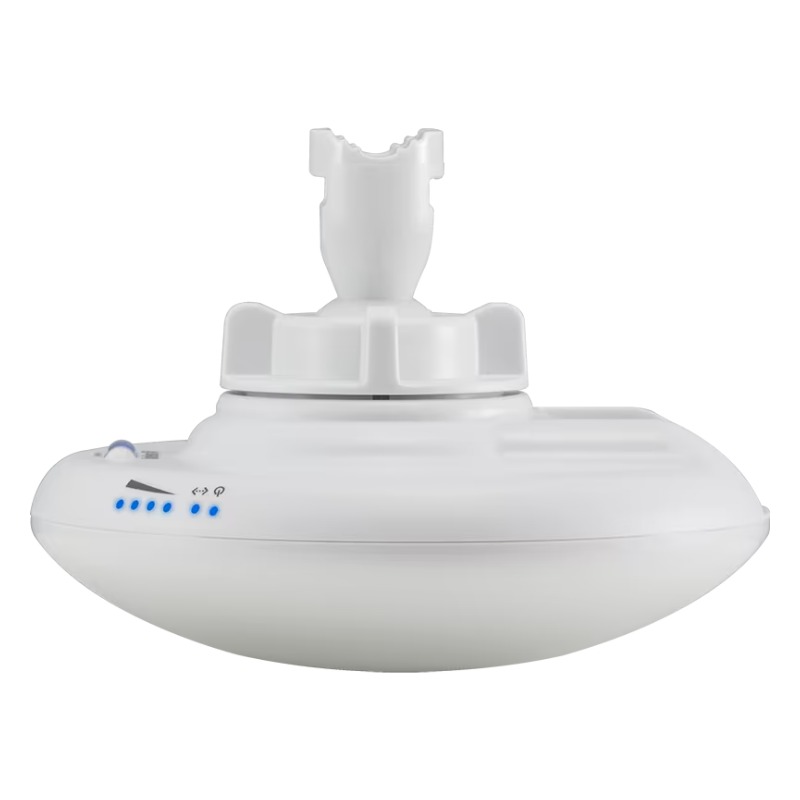

LEDs |
(1) Power, (1) LAN, (4) WLAN, signal strength |
|
Environmental & Compliance |
|
Ambient operating temperature |
-40 to 70° C |
|
Ambient operating humidity |
5 to 95% Noncondensing |
|
Salt fog test |
IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G Method 509.5 |
|
Vibration test |
IEC 68-2-6 |
|
Temperature shock test |
IEC 68-2-14 |
|
UV test |
IEC 68-2-5 at 40° C
Equivalent: ETS 300 019-1-4 |
|
Wind-driven rain test |
ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5 |
|
Certifications |
FCC, IC, CE, RoHS |
|
NDAA Compliant |
Yes |
|
System (Radio) |
|
Gain |
16 dBi |
|
Max. VSWR |
1.5:1 |
|
Polarization |
Dual linear |
|
Channel sizes |
5/8/10/20/30/40 MHz |
|
Operating Frequency (Worldwide) |
5150 - 5875 MHz |

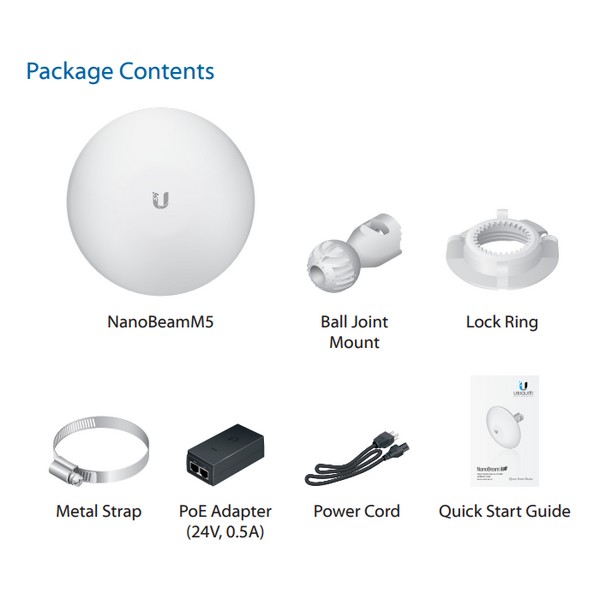

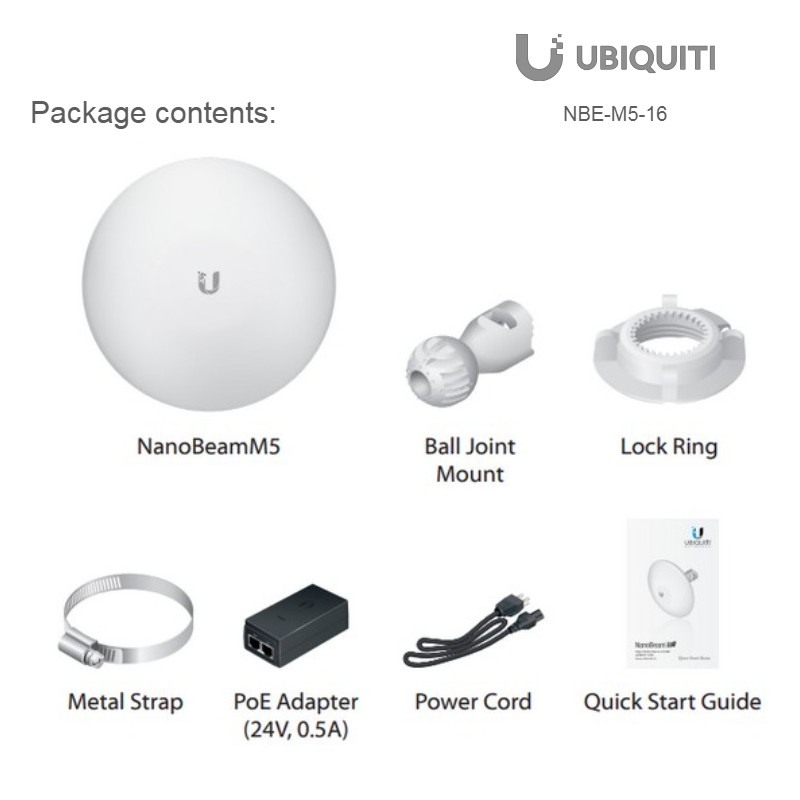

| Package Contents: |
|---|
| 1 x NBE-M5-16(EU) NanoBeamM5-16
|
| 1 x 24V PoE Adapter
|
| 1 x AC Cable EU
|
| 1 x Pole Mounting Kit |
|
