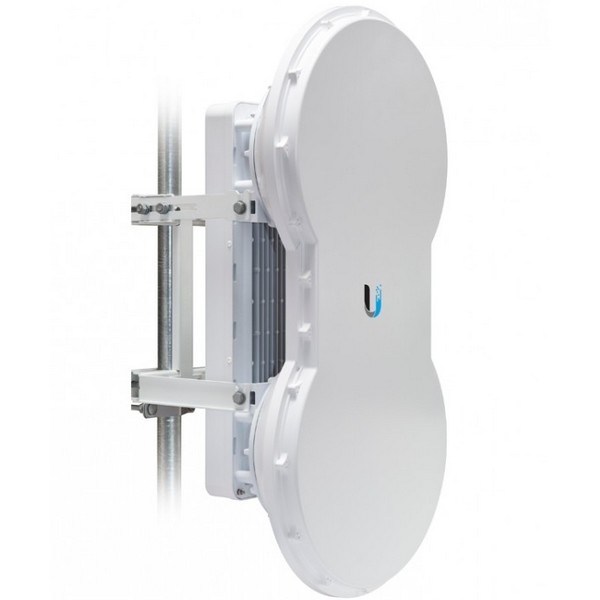

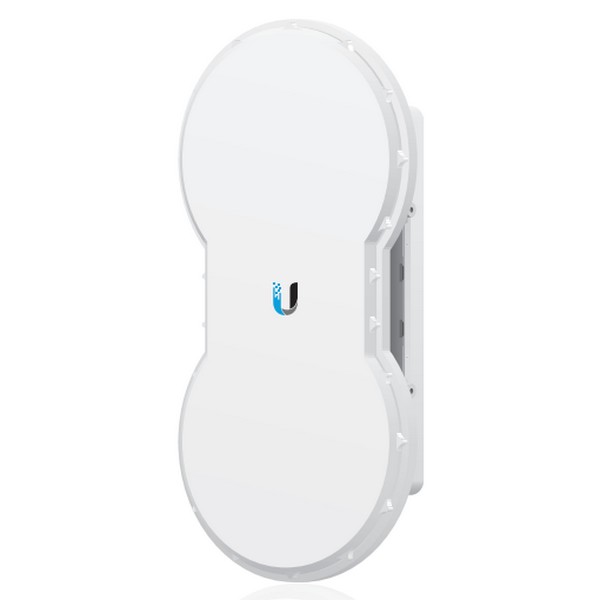

AF5U - AirFiber, 1Gbps+ Backhaul, 5.4-5.8GHz
Operating in the 5GHz band, airFiber 5 builds on the innovations in airFiber 24 to enable speeds up to 1Gbps and introduces new eXtended Range Technology to provide 100+Km maximum range.
Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range.
airFiber delivers gigabit performance at 1.0+ Gbps for airFiber AF5U.
Rivaling common broadband providers, airFiber download speed is up to 100x faster.
With speed and throughput surpassing conventional wired backhauls, airFiber prevails over expensive and labor-intensive wired infrastructures
|
Operating Frequency: |
|
FCC 15.247, 15.407, IC RSS 210: |
5725 - 5850 MHz |
|
ETSI EN 302 502: |
5725 - 5875 MHz |
|
Other Regions: |
5725 - 6200 MHz |
|
Dimensions: |
938.4 x 468.4 x 281.4 mm |
|
Weight: |
16 kg (Mount included) |
|
Max. Power Consumption: |
40 W |
|
Power Supply: |
50 V, 1.2A PoE GigE Adapter (Included) |
|
Power Method: |
Passive Power over Ethernet (42-58VDC) |
|
Certifications: |
CE, FCC, IC |
|

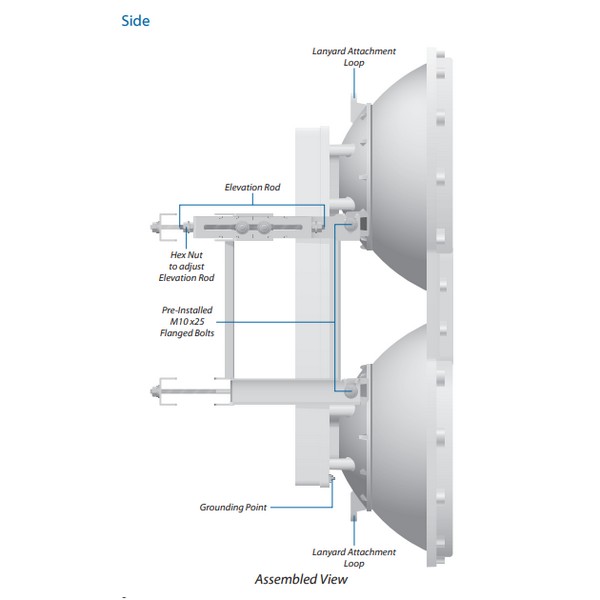

Mounting: |
Pole Mount Kit (Included) |
|
Wind Survivability: |
125 mph |
|
Operating Temperature: |
-40°C to 55°C |
|
LEDs: |
Status LEDs:
Data Port Link/Activity
Data Port Speed
Management Port Link/Activity
Management Port Speed
GPS Synchronization
Master/Slave
Link Status
Modulation Mode 0.25x to 4x, 6x, 8x, Overload
Remote and Local Displays (Calibrated Signal Strength) |
|
Interfaces: |
|
Data Port: |
10/100/1000 Ethernet Port |
|
Management Port: |
10/100 Ethernet Port |
|
Auxiliary Port: |
RJ-12, Alignment Tone Port |
|
System: |
|
Maximum Throughput: |
1.0+ Gbps |
|
Maximum Range: |
100+ km (Dependent on Regulatory Region) |
|
Packets per Second: |
1+ Million |
|
Encryption: |
128-Bit AES |
|
Forward Error Correction: |
164/205 |
|
Cyclic Prefix: |
1/16 Fixed |
|
Uplink/Downlink Ratio: |
50% Fixed |
|
Radio Frame Synchronization: |
GPS |
