Outdoor 5.xGHz » PBE-M5-300
Ubiquiti PBE-M5-300, UISP airMAX PowerBeam M5 300mm
[1498][PBE-M5-300]
Price: 70,03€
 Order or Qty  Price
 > 500€  5+   69,32€
 > 1000€  10+   68,62€
 > 2000€  20+   67,92€
 > 5000€  40+   67,22€
 > 10000€  100+   66,52€
Prices exclude VAT

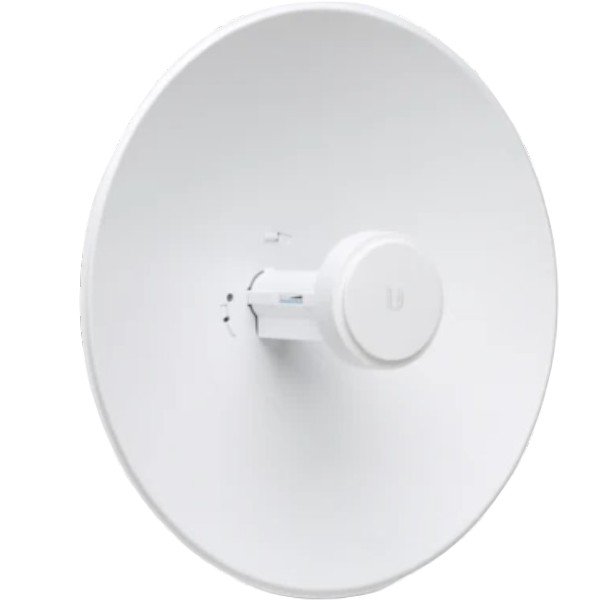

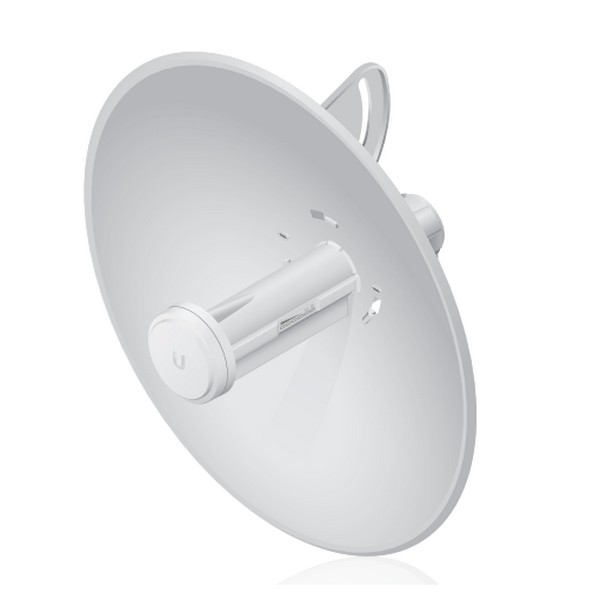

Ubiquiti PBE-M5-300, UISP airMAX PowerBeam M5 300mm

In Stock: 2

Available quantity within
3-5 working days: 100
Order Qty:
UPC:810354022616

PBE-M5-300

Incorporating a dish reflector design with advanced technology, the PowerBeam™is the latest generation of Ubiquiti Networks®airMAX®CPE for customer locations.

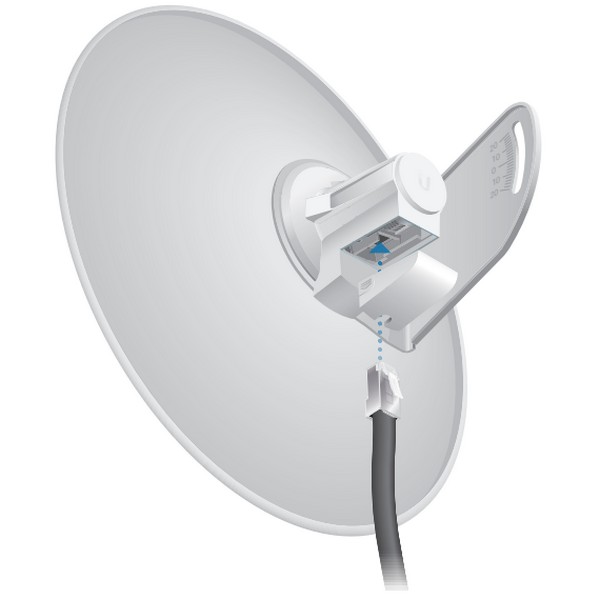

Ubiquiti’s InnerFeed™technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna.

This improves performance because it eliminates cable losses.

The PowerBeam’s excellent beam directivity provides the best performance in high-noise environments.

The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.


Specifications:
CPU Atheros MIPS 74KC, 560 MHz
Memory 64 MB DDR2, 8 MB Flash
Networking Interface (1) 10/100 Ethernet Port
Max TX 26 dBm
Operating frequency 5170 - 5875
Gain 22 dBi
Channel Sizes 5/8/10/20/30/40 MHz
Polarization Dual Linear
Dimensions  325 x 325 x 256 mm
Weight 1.203 kg
Power Supply 24V, 0.5A PoE
Power Method Passive PoE  (Pairs 4,5+7,8)
Wind Loading 45 lbf @ 125 mph
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount Kit Included
ESD/EMP Protection Air: ±24 kV, Contact:± 24 kV
Operating Temperature -40 to 70°C
Operating Humidity 5 to 95% Non-Condensing
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
