Outdoor 5.xGHz » C050910C201A

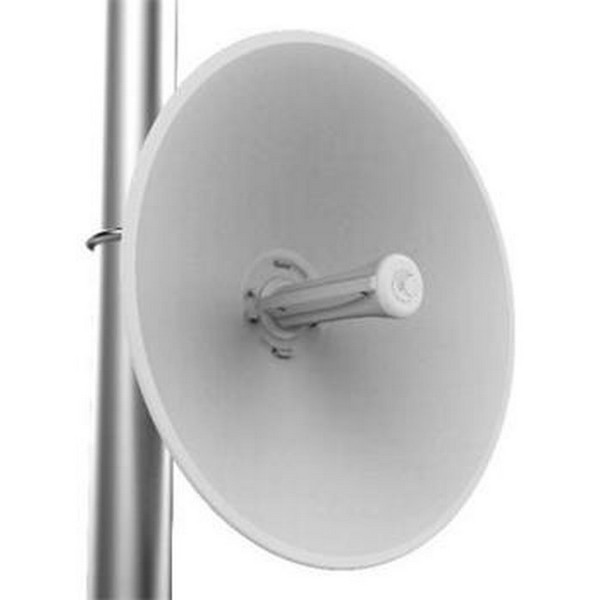

Cambium Networks ePMP 5 GHz Force 300-25 High Gain Radio (ROW EU-cord)
[C050910C201A]
Price: 143,02€
 Order or Qty  Price
 > 500€  5+   141,59€
 > 1000€  10+   140,16€
 > 2000€  20+   138,73€
 > 5000€  40+   137,30€
 > 10000€  100+   135,87€
Prices exclude VAT

Cambium Networks ePMP 5 GHz Force 300-25 High Gain Radio (ROW EU-cord)

Ships in:
3-5 working days
Order Qty:

ePMP 5 GHz Force 300-25 High Gain Radio (ROW EU-cord)

Cambium Networks’ ePMP™ Force 300-25 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.

The High-gain ePMP Force 300-25 802.11AC Wave 2 solution provides 500+ Mbps peak throughput and always-on spectrum analysis.

FEATURES

  • Cambium Networks’ ePMP Force 300-25 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.
  • The ePMP Force 300-25 supports channel size configuration from 20MHz up to 80MHz and modulates up to 256 QAM.
  • The ePMP Force 300-25 supports constant monitoring of the radio spectrum with a built-in always-on spectrum analyzer.
  • Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms.
  • QoS management offers an outstanding quality for triple play services – VoIP, video, and data – and provides three levels of traffic priority.
  • Long deployment range is enabled by a high gain antenna combined with 27dBm of transmit power.

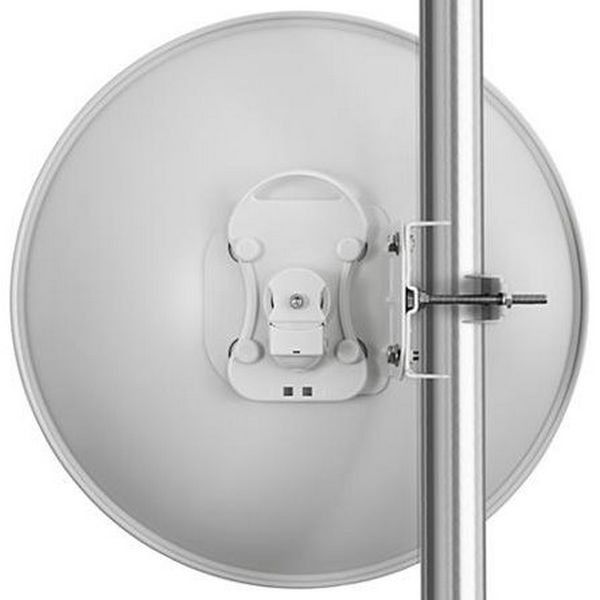

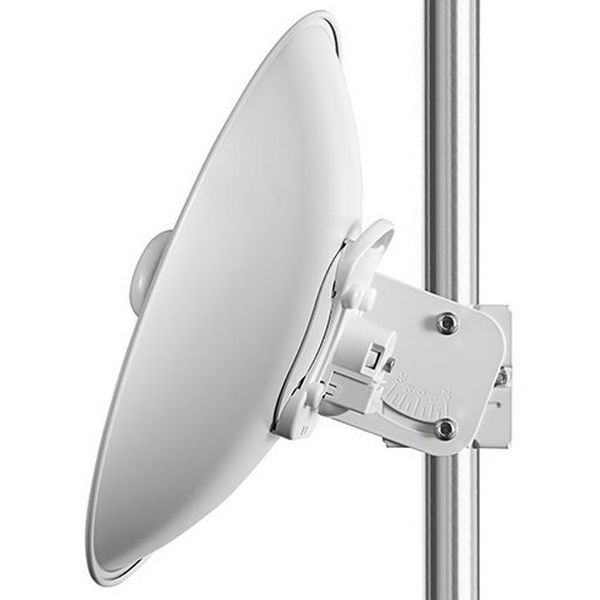

  • Installation is a breeze with the included wall and pole mounting bracket.

Specifications
Spectrum
Channel SpacingConfigurable in 5 MHz increments
Frequency RangeWide Band Operation 5.150 – 5.970 MHz (Note: Allowable frequencies
and bands are dictated by individual country regulations.)
Channel Width 20 | 40 | 80 MHz
Interface
Proprietary Physical Layer 2x2 MIMO/OFDM
Ethernet Interfaced 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Performance
Nominal Receive Sensitivity (w/FEC) @20 MHz Channe MCS0 = -87 dBm to MCS8 (256 QAM-3/4) = -63 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel MCS0 = -85 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel MCS0 = -82 dBm to MCS9 (256QAM-5/6) = -56 dBm (per chain)
Physical
Environmental IP55
Temperature -30°C to +60°C
Weight 2.4 kg
Dimensions (Dia x Depth) 47 cm x 31 cm
Security
Encryption 128-bit AES (CCMP mode)


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 36 month(s)
