Outdoor 5.xGHz » 100-00107

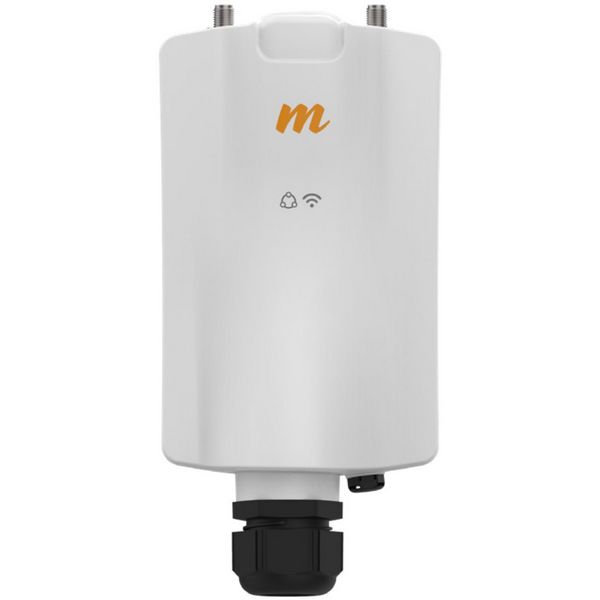

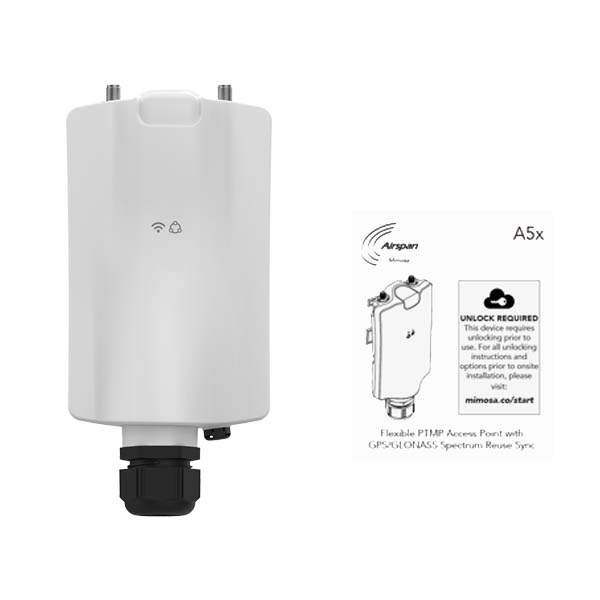

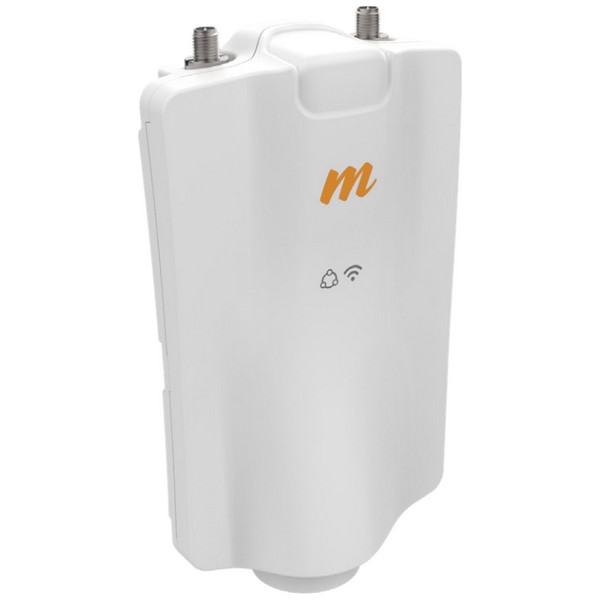

Mimosa A5x, PTMP access point, 2x RSMA female
[2544][100-00107]
Price: 248,30€
 Order or Qty  Price
 > 500€  5+   245,82€
 > 1000€  10+   243,34€
 > 2000€  20+   240,85€
 > 5000€  40+   238,37€
 > 10000€  100+   235,89€
Prices exclude VAT

Mimosa A5x, PTMP access point, 2x RSMA female

Ships in:
3-5 working days
Quantity: 43
Order Qty:
UPC:708747439083
EAN:10000107

Compact and powerful, the A5x is built for short to long-range pole and tower point-to-multipoint (PTMP) applications. In situations where the power and range of the 4x4 A5c access point isn't needed, the connectorized, 2x2 A5x is the perfect solution.

Breaking the barriers to entry, the A5x is a connectorized, 2x2 access point that delivers fiber-like speeds of up to 700 Mbps (IP).

With new spectrum becoming available in both 4.9 and 6 GHz, the wide frequency of the A5x (4.9–6.4 GHz) will allow affordable access to more low-noise spectrum for increased speeds and reliability—especially paired with SRS (GPS sync) for channel reuse.

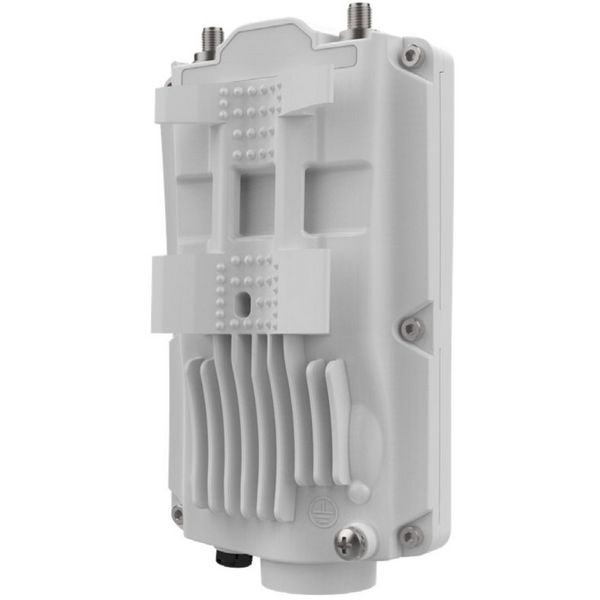

The A5x, with its die-cast aluminum metal backing, is designed and built to withstand the harshest outdoor elements.

Connectors and Interfaces
RF connectors:  (2) RSMA female
LAN speed:  (1) 10/100/1000Mbps
Gigabit LAN:  Yes
GPS modul:  Yes
Physical characteristics
Purpose:  Outdoor
Operating temperature [°C]:  -40 up to 55
Weight [g]:  300
Depth [mm]:  44
Width [mm]:  75
Height [mm]:  188
Power
Power over Ethernet:  24 .. 56V DC
PoE type: PoE-In (only)
Max. power consumption [W]:  13
Software
Operating mode:  Access Point
IPv6 support:  Yes
Wireless features
Wireless frequency:  5 GHz
WiFi standards:  Mimosa SRS, WiFi Interop
Transmission speed - WiFi 5GHz [Mb/s]:  866
Tx power 5GHz [dBm]:  27
5GHz MIMO:  2 x 2
Type of antenna:  Detachable
Detachable antennas:  2
