Outdoor 5.xGHz » AP3000 Outdoor
Cudy AP3000 Outdoor, AX3000 High-Power Wi-Fi 6 Gigabit AP/Repeater/Router/WISP
[3223][AP3000 Outdoor]
Price: 62,94€
 Order or Qty  Price
 > 500€  5+   62,31€
 > 1000€  10+   61,68€
 > 2000€  20+   61,05€
 > 5000€  40+   60,42€
 > 10000€  100+   59,79€
Prices exclude VAT

Cudy AP3000 Outdoor, AX3000 High-Power Wi-Fi 6 Gigabit AP/Repeater/Router/WISP

In Stock: 1
Order Qty:
EAN:6971690792992

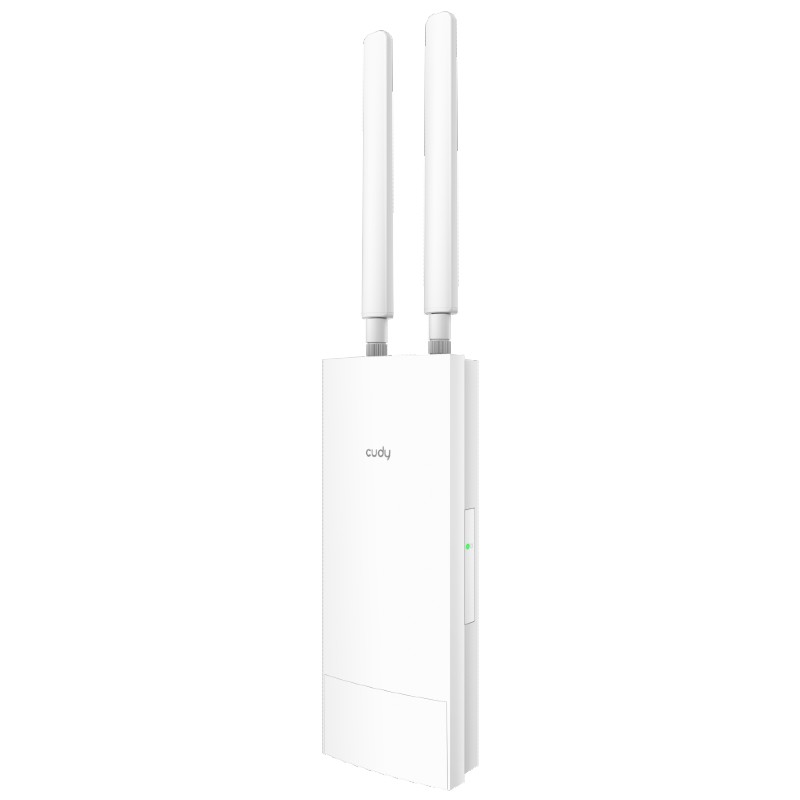

AP3000 Outdoor - Indoor/Outdoor AX3000 High-Power Wi-Fi 6 Access Point

A pole/wall-mounted WiFi 6 AP featuring eFEM providing exceptional range performance. The IP65 casing, PoE, and Cudy Mesh features, ideal for high-density park, farm, and parking lot environments.
  • IP65, -40°C~70°C, 6kV Surge
  • 4-Stream Dual-Band Wi-Fi 6
  • 2402 Mbps + 574 Mbps Wi-Fi 1
  • 1× Shielded GbE PoE In
  • 802.3at, 48~57V Passive PoE
  • Watchdog, Schedule Reboot
  • Max 320 m
  • 200 Connected Devices

Specifications:
Chipset MT7981BA
CPU Details 1.3 GHz Dual-Core CPU
Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 256 MB (2 Gbit) DDR3
5 GHz Wi-Fi Speed 2402Mbps
2.4 GHz Wi-Fi Speed 574Mbps
5 GHz Wi-Fi Streams 3T3R (3×3 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 1× Internal+2× External
5 GHz Antenna Gain Max 6 dBi
2.4 GHz Antenna Gain Max 4 dBi
FEM or PA/LNA 5 GHz: 3× High-Power
2.4 GHz: 2× High-Power
Detachable Wi-Fi Antennas Connector RP-SMA Female
Beamforming True
Range Performance Max: 320 m
Park: 280 m
Street: 70 m
Woods: 40 m

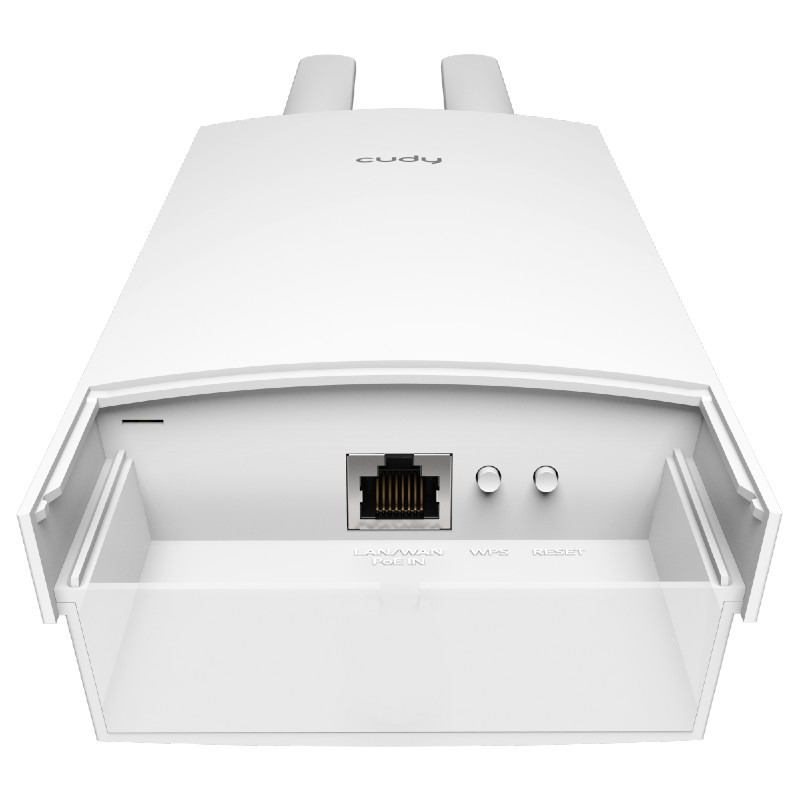

Gigabit RJ45 Ports 1
Ethernet Notes Accepts PoE powering
LED System
Physical Buttons WPS Button
Reset Button
Power Input PoE via Ethernet Port
Power Methods 802.3at PoE
Passive PoE
Passive PoE 48 ~ 57V
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 48V Passive PoE
Max Power Consumption (W) 18 W
Idle Power Consumption (W) 5 W
Advanced Hardware Watchdog
Lightning/Surge Protection 6kV
ESD Contact Protection 4kV
ESD Air Protection 8kV
Operating Temperature -40℃ ~ 65℃
Operating Humidity 0% ~ 100% non-condensing
Ingress Protection Rating IP65 When devices is installed vertically
Certifications FCC, CE

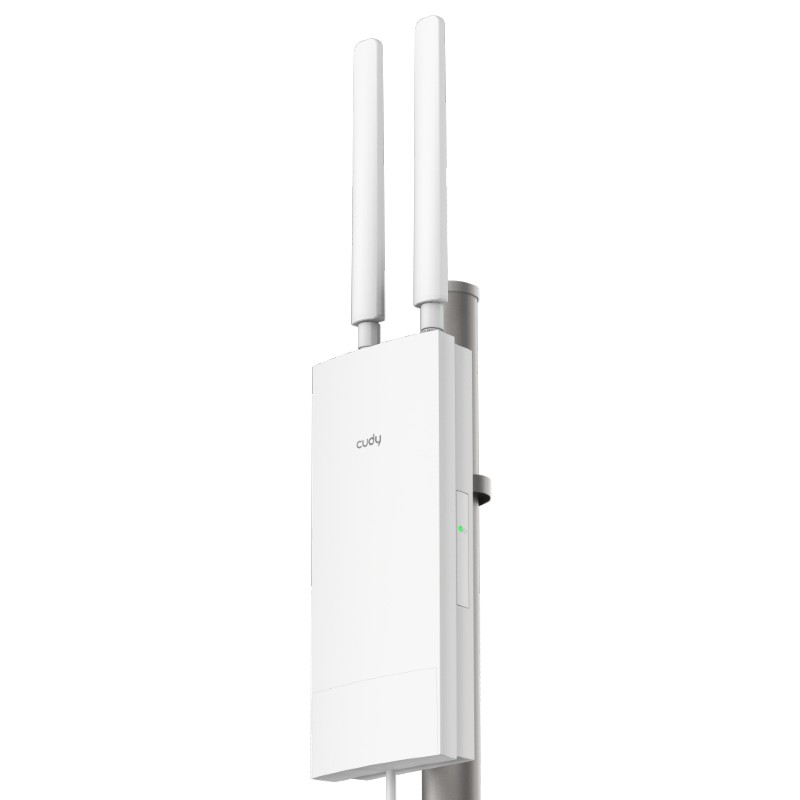

Installation Wall-mount
Pole-mount
Device Body Dimension 240×100×53.7 mm
Each Antenna Dimension 197.5×21.6×15.5 mm
Product Weight 455 g


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
