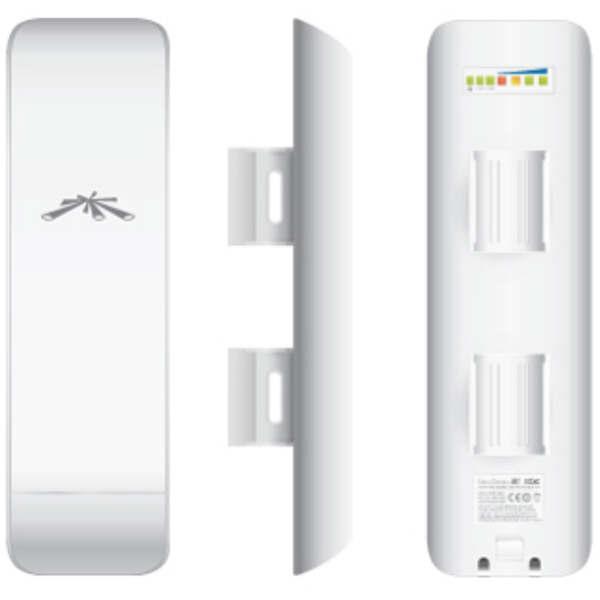

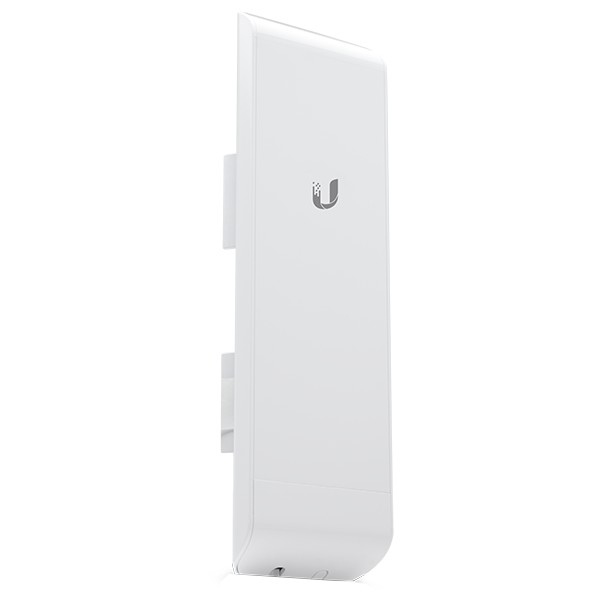

NSM5
150+ Mbps real outdoor throughput and up to 15km+ range; featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before.
New antenna array designs featuring 16dBi dual-polarity gain at 5GHz and 11dBi dual-polarity 11dBi at 2.4GHz; both with optimized cross-polarity isolation and in a compact form-factor.

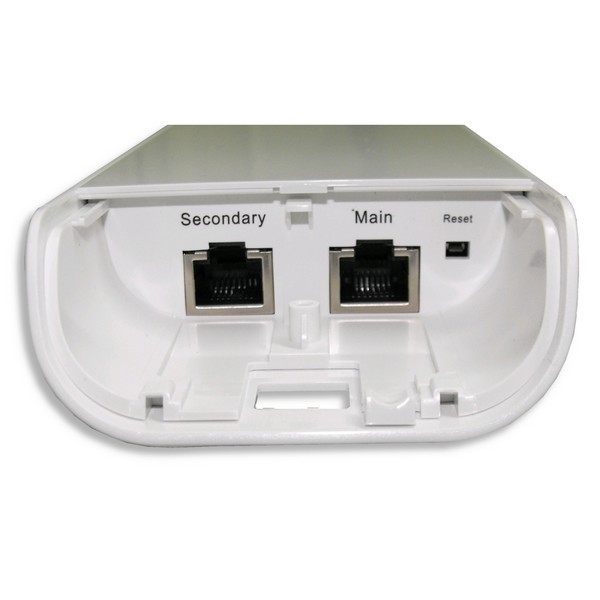

The New NanoStation M provides a secondary ethernet port with software enabled POE output for seamless IP Video integration.
Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location.
In addition, any NanoStation can easily become 802.3af 48V compliant through use of Ubiquiti's Instant 802.3af adapter.
|
System Information : |
|
Processor Specs |
Atheros MIPS 24KC, 400MHz |
|
Memory Information |
32MB SDRAM, 8MB Flash |
|
Networking Interface |
2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface |
|
Regulatory / Compliance information : |
|
Wireless Approvals |
FCC Part 15.247, IC RS210, CE |
|
RoHS Compliance |
YES |
|
Physical - Electrical - Environmental : |
|
Enclosure Size |
29.4 x 8 x 3 cm |
|
Weight |
0.4 kg |
|
Mounting Kit |
Pole Mounting Kit included |
|
Max Power Consumption |
8 W |
|
Power Supply |
15V, 0.8A surge portection integrated POE adapter included |
|
Power Method |
Passive Power over Ethernet (pairs 4,5+; 7,8 return) |
|
Operating Temperature |
-30°C to +80°C |
|
Operating Humidity |
5 to 95% Condensing |
|

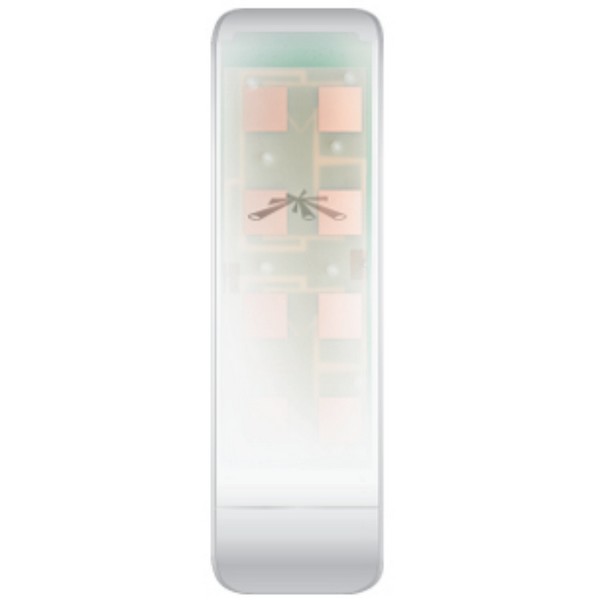

INTEGRATED 2x2 MIMO ANTENNA : |
|
Frequency Range |
4.9-5.9 GHz |
|
Gain |
14.6-16.1dBi |
|
Polarization |
Dual Linear |
|
Cross-pol Isolation |
22dB minimum |
|
Max VSWR |
1.6:1 |
| Package Contents: |
|---|
| 1 x NSM5
|
| 2 x Plastic Straps
|
| 1 x PoE Adapter 24v, 0.5A
|
| 1 x AC Cable EU |
|
