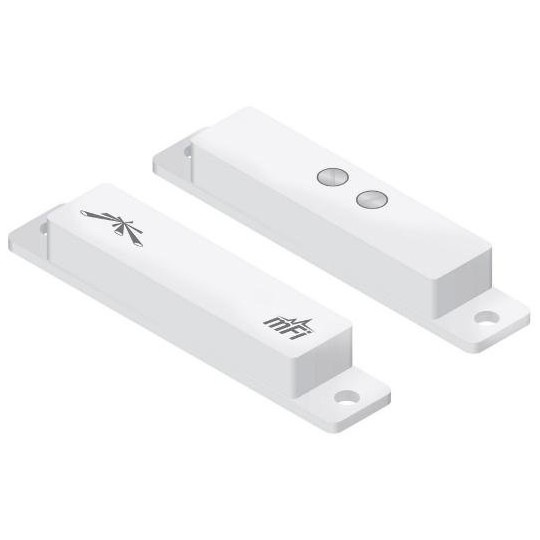

mFi-DS
mFi is a Machine-to-Machine management system from Ubiquiti Networks.
The mFi hardware can be managed and monitored from the mFi Controller software.
The mFi Controller software allows you to create rules that trigger actions based on data from your mFi sensors.
The mFi platform is compatible with third-party devices, making the options unlimited.

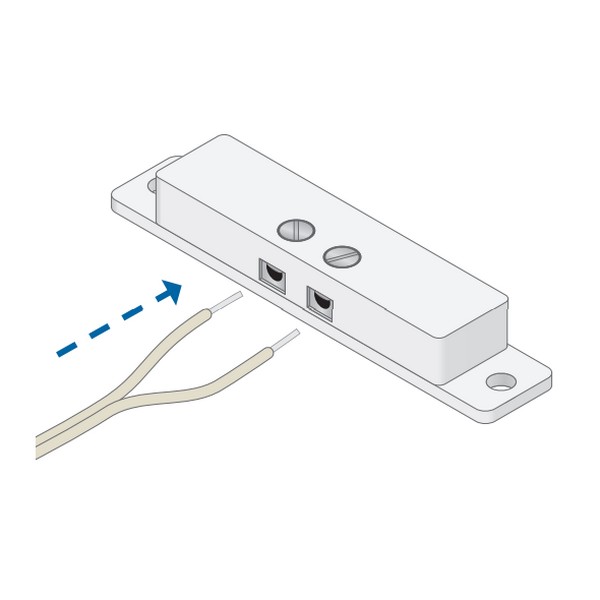

These sensors connect to the mPort using a standard RJ45 cable, except for the mFi-DS, which connects using a terminal block connector.
|
Specifications: |
|
Dimensions: |
50 x 9.5 x 7.7 mm (Magnet)
50 x 9.5 x 7.7 mm (Switch) |
|
Weight: |
350 g (Magnet and Switch) |
|
Contact Form: |
Form A (SPST) |
|
Maximum Rating: |
1.0A @ 28VDC |
|
Initial Contact Resistance: |
0.3 Ω Maximum |
|
Operating Range: |
20 mm (Typical) |
|
Wiring: |
Screw Terminal |
|
Mounting: |
Adhesive or Screws (Included) |
|
Operating Temperature: |
-10°C to 60°C |
|
Operating Humidity: |
≤80% Condensing |
