UP-Sense - Protect Sensor
A battery-powered smart sensor capable of detecting motion, lighting, and environmental changes.
Features:
-
Motion detection range: up to five meters
-
Temperature, light, humidity, and water-level* detection
-
Built-in accelerometer and magnetic entry sensor for detecting door/window openings
-
Detection alarm system**
Note: This sensor must be connected to an up-to-date Bluetooth-supported UniFi Access Point.
*Water sensor sold separately.
**Based on UL217 and UL2034 alarm patterns.
|

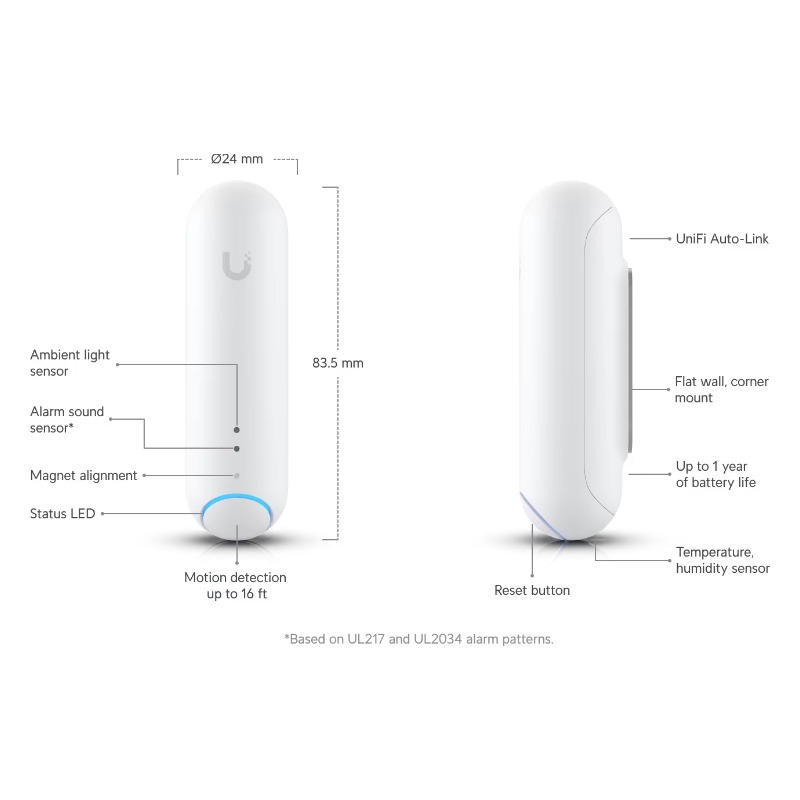

Mechanical |
|
Dimensions |
Ø24 x 83.5 mm |
|
Weight |
50.2 g |
|
Enclosure material |
Polycarbonate |
|
Mount materials |
Flat wall mount: polycarbonate, adhesive
Corner mount: polycarbonate, adhesive |
|
Additional gear |
Magnet
Water sensor adapter (Only available in the 3-pack.) |
|
Hardware |
|
Processor |
MCU Processor at 40 MHz |
|
Networking interface |
Bluetooth 5.0, BLE |
|
Max. TX power |
5 dBm |
|
Max. power consumption |
77mW |
|
Power method |
Lithium battery CR123A |
|
Sensor features |
Motion sensor (5 m/16 ft max. range)
Magnetic entry sensor for door or window open/close
Accelerometer for garage door open/close
Temperature sensor
Humidity sensor
Ambient light sensor
Alarm sound sensor
Water sensor for detecting leaks and floods
BLE connectivity from access point in indoor setting |
|
Antenna |
2.4GHz |
|
Antenna gain |
0.5 dBi |
|
LEDs |
R/B/W |
|
Button |
Factory reset |
|
Operating temperature |
0°C to 45°C |
|
Operating humidity |
10 to 90% noncondensing |
|
Certifications |
FCC, IC, CE |
|
Software |
|
UniFi OS application |
UniFi Protect |
|
Mobile app |
UniFi Protect iOS™ and Android™ |

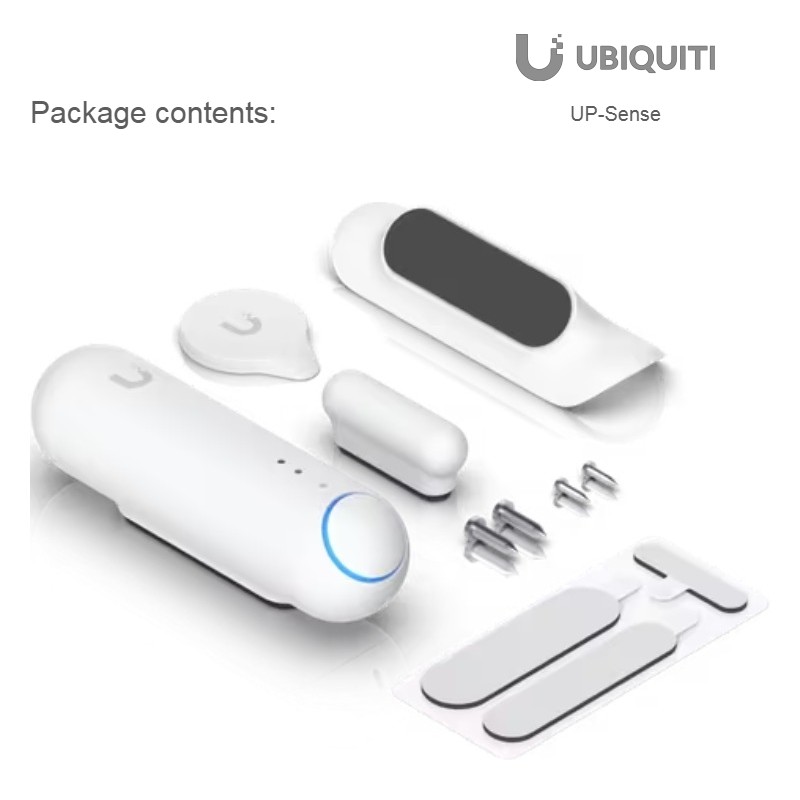

| Package Contents: |
|---|
| 1 x UP-Sense
|
| 1 x Flat Wall Mount
|
| 1 x Corner Wall Mount
|
| 1 x Magnetic entry sensor |
|
