UVC-G5-Dome-Ultra - G5 Dome Ultra
Ultra-compact and tamper-resistant 2K HD PoE camera with night vision designed for low-profile indoor security.
A compact 2K dome security camera with advanced smart detections, 20 m IR night vision, wide 120.6° diagonal field of view, and weather/impact resistance (IK06).
Ideal for indoor and outdoor surveillance with PoE power and UniFi Protect integration.
|
Overview |
|
Dimensions |
Ø63.6 x 68.2 mm |
|
IR Night Vision |
20 m |
|
Smart Detections (People, Vehicles, Animals) |
✓ |
|
Resolution |
2K |
|
Field of View |
H: 102.4°, V: 54.9°, D: 120.6° |
|
Tamper Resistance |
IK06 |
|
Mounting |
Surface mount (Included)
Junction box, Ultra Flush mount (Optional) |
|
Performance |
|
Networking Interface |
10/100 MbE RJ45 port |
|
Image Settings |
Color, brightness, sharpness, contrast, white balance, exposure control
2DNR, 3DNR, NR by motion, masking, text overlay |
|
Max. Frame Rate |
30 FPS |
|
Resolution |
4MP 2688 x 1512 (16:9) |
|
Sensor |
1/2.4" CMOS |
|
Lens |
Fixed focal length |
|
Night Mode |
Built-in IR LED illumination and IR cut filter |
|
Hardware |
|
Max. Power Consumption |
4.2W |
|
Supported Voltage Range |
37—57V DC |
|
Power Method |
PoE |
|
Processor |
Dual-core Arm® Cortex®-A7 based chip |
|
Weight |
175 g |
|
Enclosure Material |
Aluminum alloy, polycarbonate |
|
Mount Material |
Stainless steel |
|

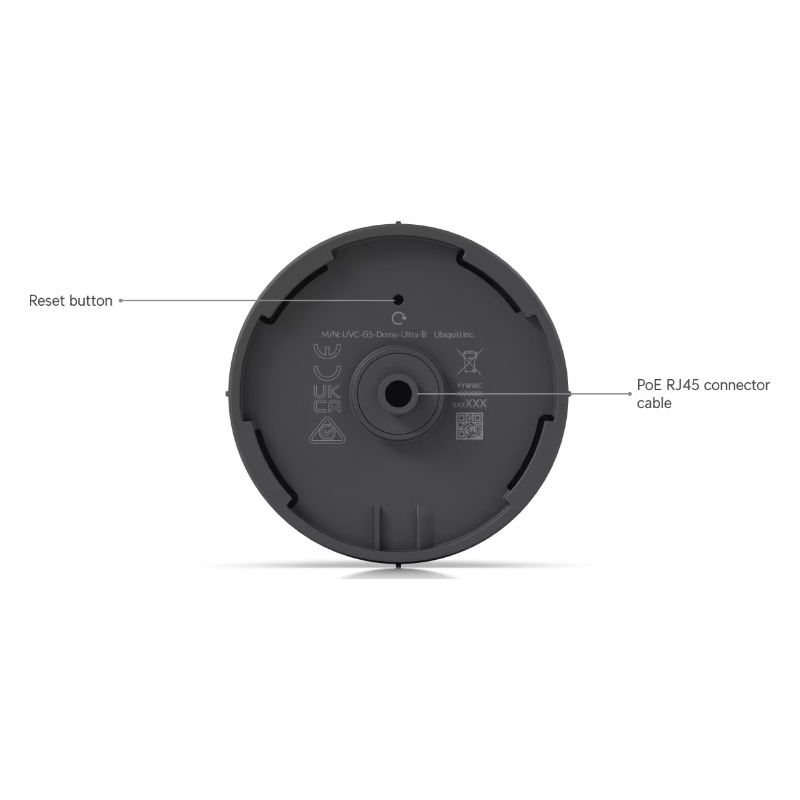

Button |
(1) Factory-reset |
|
Ambient Operating Temperature |
-20 to 40° C |
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
NDAA Compliant |
✓ |
|
Certifications |
CE, FCC, IC |

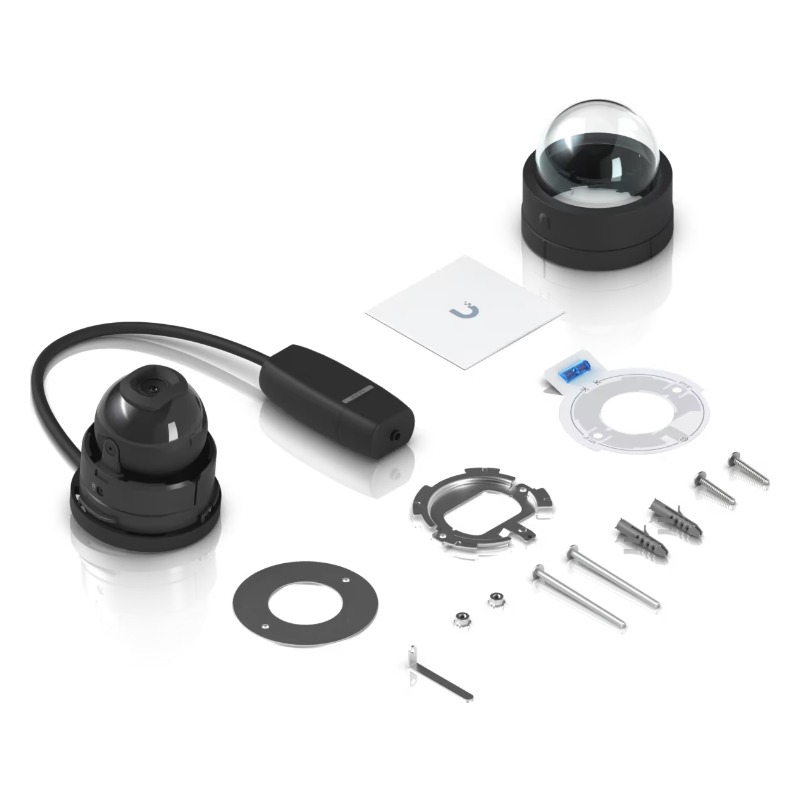

| Package Contents: |
|---|
| 1 x UVC-G5-Dome-Ultra Black
|
| 1 x Wall / Ceiling Mount Black
|
| 1 x Kit screws
|
| 1 x Drilling template
|
| 1 x Security pin |
|
