IS-5AC
The IsoStation 5ac delivers throughput speeds of up to 450+ Mbps.

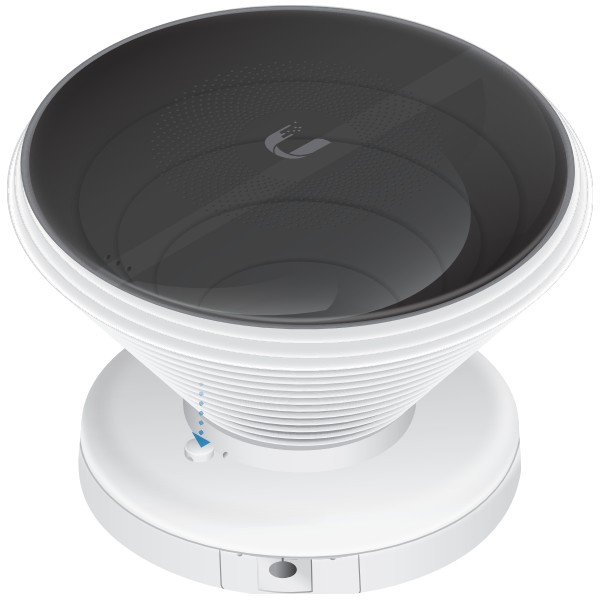

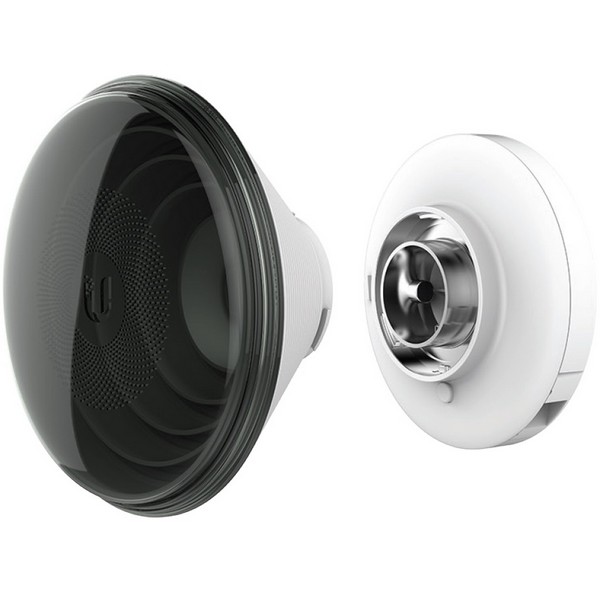

The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs.
Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.
IsoStationTM blocks or spatially filters out noise, so noise immunity is improved.
High MAC efficiency provides ±80% PHY RATE throughput.
|
Connectors and Interfaces: |
|
LAN speed: |
(1) 10/100/1000Mbps |
|
Gigabit LAN: |
Yes |
|
Hardware: |
|
RAM: |
64 MB |
|
RAM memory size: |
64 MB |
|
CPU: |
MIPS 74Kc |
|
CPU frequency: |
560 MHz |
|
Physical characteristics: |
|
Max. operating humidity: |
95% |
|
Purpose: |
Outdoor |
|
Buttons: |
Reset |
|
Operating temperature: |
-40°C up to 70°C |
|
Weight: |
726 g |
|
Depth: |
150 mm |
|
Width: |
174 mm |
|
Height: |
174 mm |
|
Power: |
|
Max. power consumption: |
6,5 W |
|
Power over Ethernet: |
24V DC |
|
Power type: |
PoE |
|
PoE type: |
Input |
|
Software: |
|
IPv6 support: |
Transparent (bridge mode) |
|
Operating mode: |
Client, Repeater, AP Router, Access Point, Client Router (wisp) |
|
Operating system: |
airOS |
|
Default IP address: |
192.168.1.20 |
|
Default login and password: |
ubnt / ubnt |
|
Wireless features: |
|
Sensitivity: |
-96 dBm |
|
Frequency range: |
5150 - 5875 MHz |
|
Maximum modulation |
256QAM |
|
Beam angle - H. pol.: |
45° |
|
Beam angle - V. pol.: |
45° |
|
Wireless frequency: |
5 GHz |
|
Transmission speed - WiFi 5GHz: |
866 |
|
WiFi standards: |
airMAX ac |
|
Tx power 5GHz: |
25 dBm |
|
Security: |
WPA2 AES |
|
5GHz MIMO: |
2 x 2 |
|
Type of antenna: |
Detachable |
|
Detachable antennas: |
1 |
|
Antenna gain: |
14 dBi |
