| Product Details |
|---|
| PID: | 2992 |
| SKU: | UBB-XG |
| UPC: | 817882029674 |
| Weight: | 5.00 Kgs |
| Return Policy |
|---|
| Refund: | 20 days |
| Store Credit: | 40 days |
| Warranty: | 24 months |

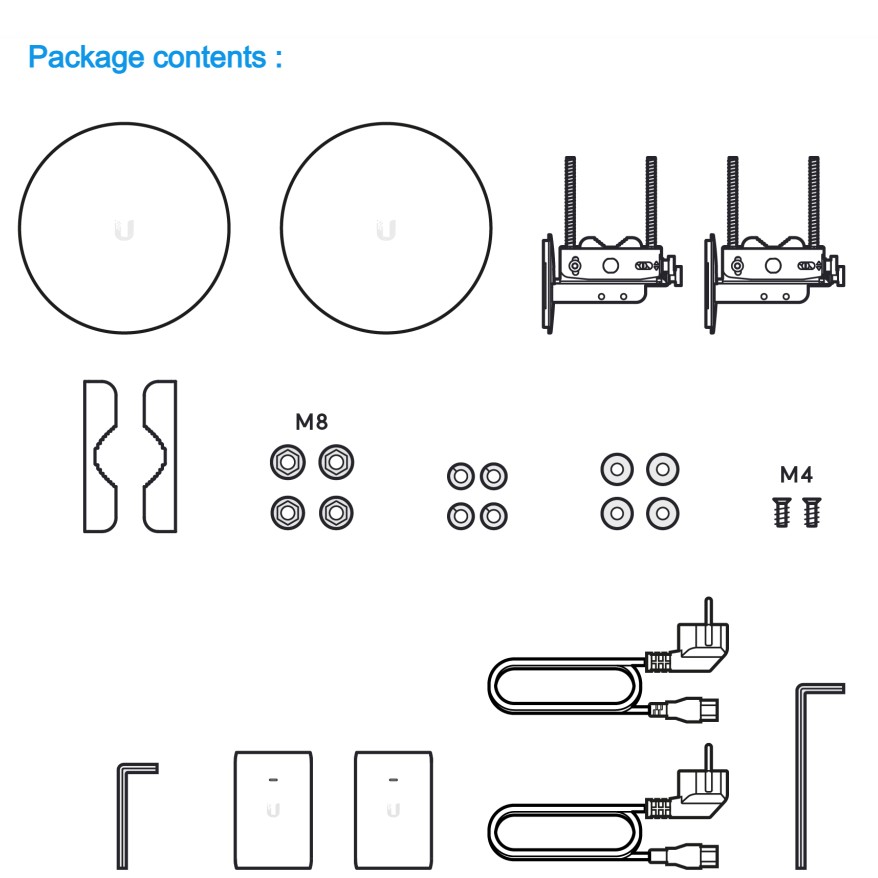

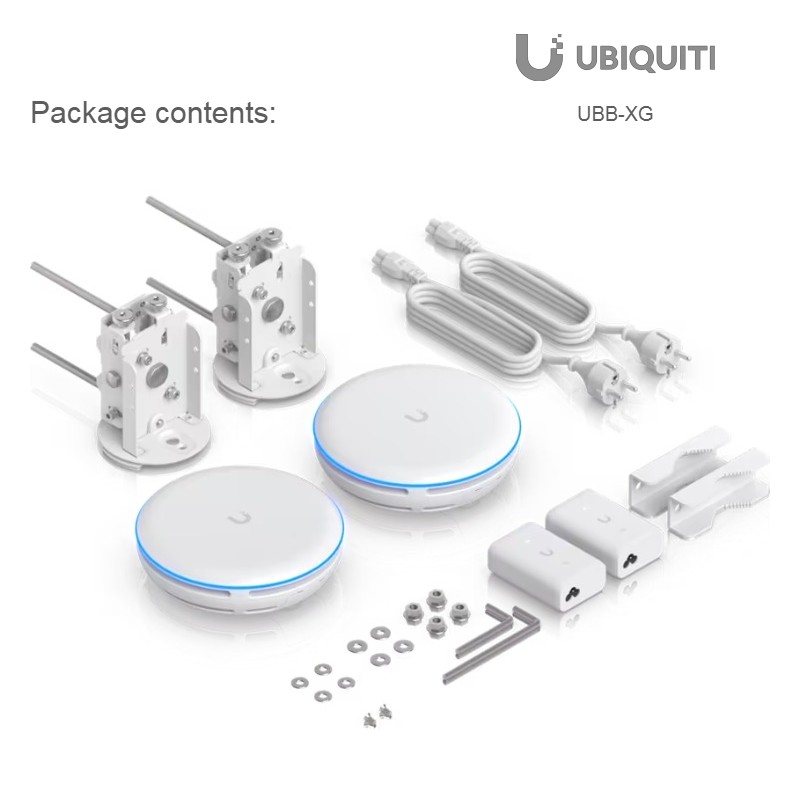

| Package Contents: |
|---|
| 2 x UBB-XG |
| 2 x Mount bracket |
| 2 x Screw kit |
| 2 x 48V/0.65A Gigabit PoE adapter |
| 2 x Power cable |
|

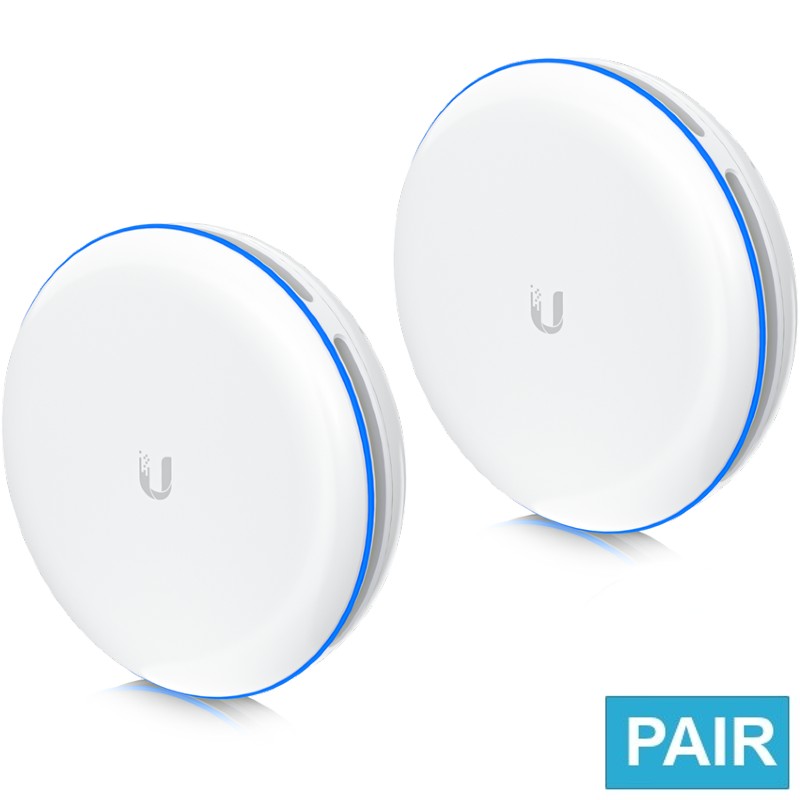

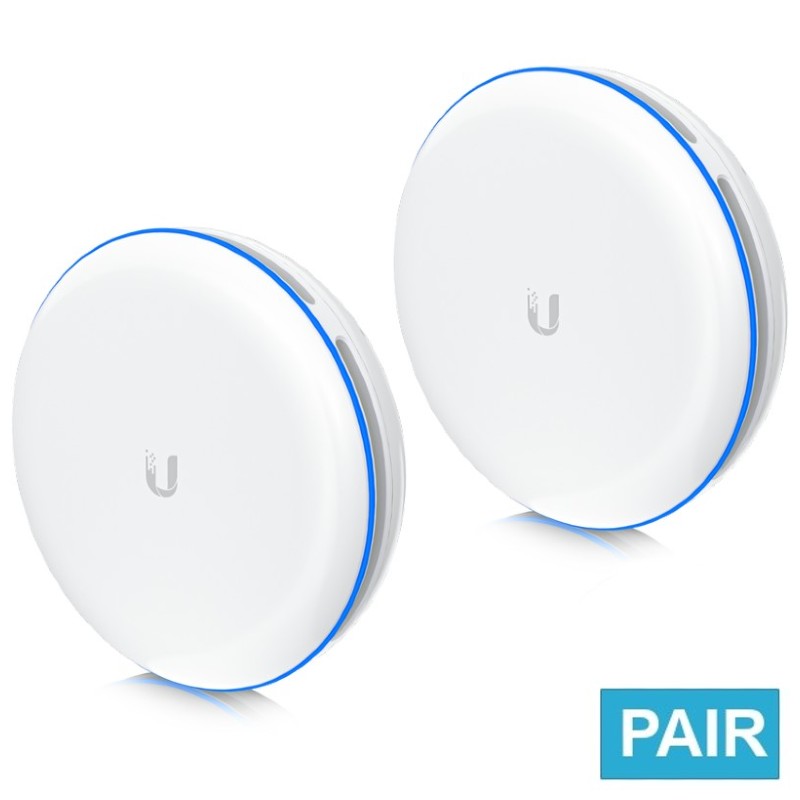

Ubiquiti UBB-XG, UniFi Building to Building Bridge XG
UBB-XG - Building-to-Building Bridge XG
60 GHz wireless bridge with a 10 Gbps SFP+ interface.
Features:
-
5 GHz backup radio
-
Operational range of up to 500 meters
-
6 Gbps throughput rate
-
Additional GbE RJ45 port with PoE++
-
Integrated outer diameter alignment LED for easy setup
|
Overview |
|

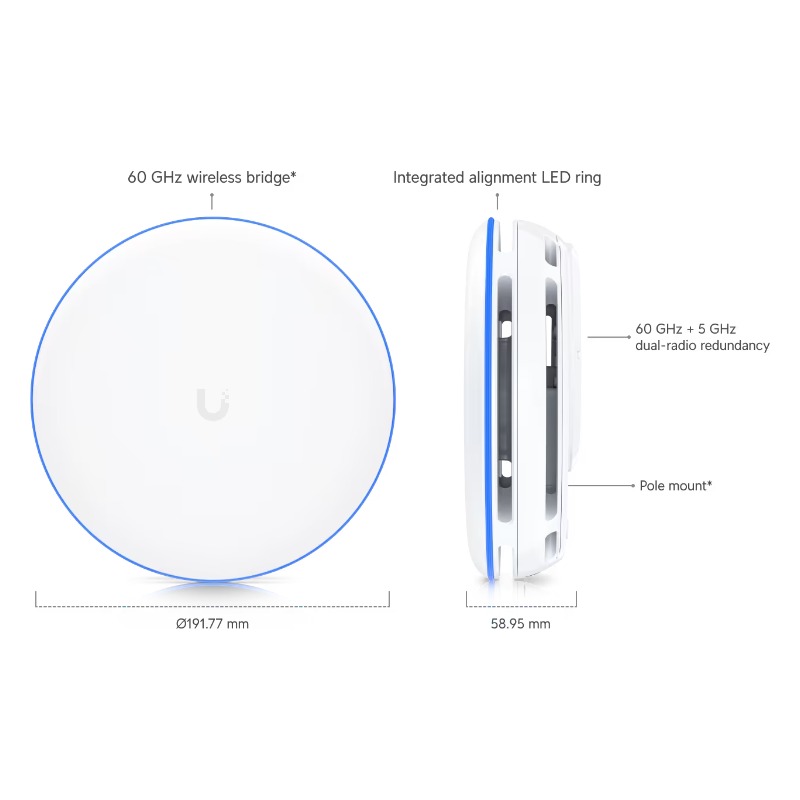

Dimensions |
Ø191.8 x 59 mm |
|
WiFi Standard |
WiFi 5 |
|
Spatial Streams |
2 |
|
Coverage Area |
500 m |
|
Mounting Locations |
Wall, pole |
|
Weatherproofing |
IPX6 |
|
Performance |
|
MIMO 5 GHz |
2 x 2 (DL MU-MIMO) |
|
Max. Data Rate 60 GHz |
6 Gbps |
|
Max. Data Rate 5 GHz |
866.6 Mbps (BW80) |
|
Antenna Gain 60 GHz |
21 dBi |
|
Antenna Gain 5 GHz |
14 dBi |
|
Antenna Gain 2.4 GHz (BLE) |
2 dBi |
|
Max. TX Power 60 GHz |
16 dBm |
|
Max. TX Power 5 GHz |
23 dBm |
|
Channel Bandwidth Main radio (60 GHz) |
2,160/4,320 (MHz) |
|
Channel Bandwidth Backup radio (5 GHz) |
HT 20/40, VHT 20/40/80 (MHz) |
|
Operating Frequency Main radio (60GHz) |
57 - 66 GHz |
|
Operating Frequency Backup radio (5GHz) Worldwide |
5150 - 5725 MHz |
|
Operating Frequency Bluetooth |
2,400 - 2,483.5 MHz |
|
Supported Data Rates 802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
Supported Data Rates 802.11b |
1, 2, 5.5, 11 Mbps |
|
Supported Data Rates 802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
|
Supported Data Rates 802.11n |
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
|
Supported Data Rates 802.11ac (WiFi 5) |
6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
|
Wireless Security |
WPA2 AES |
|

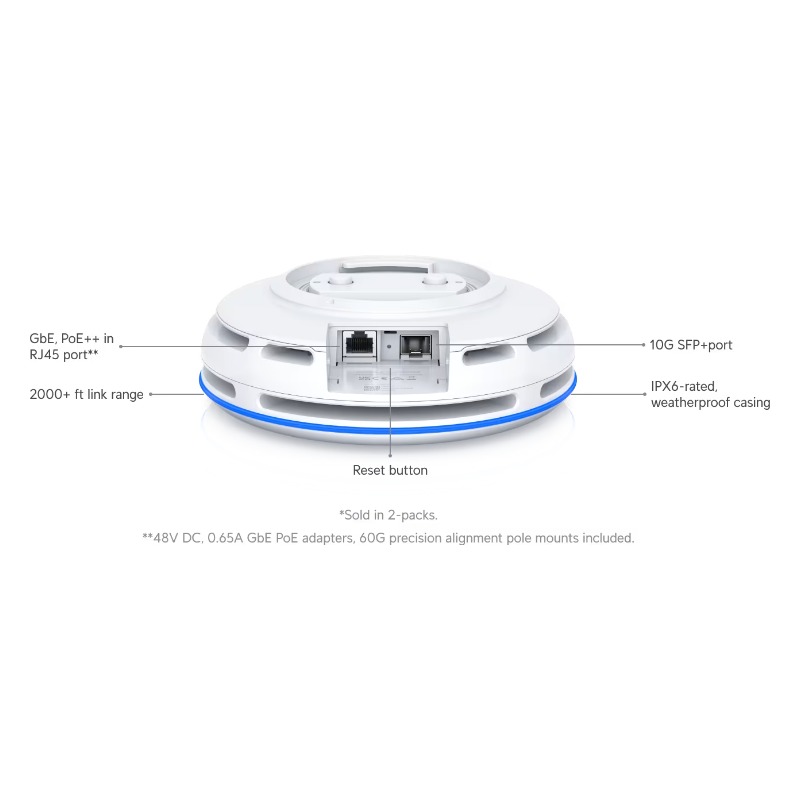

Hardware |
|
Networking Interface |
(1) GbE RJ45 port
(1) 1/10G SFP+ port |
|
Management |
Ethernet, Bluetooth |
|
Max. Power Consumption |
29W |
|
Power Method |
PoE++
Passive PoE |
|
Supported Voltage Range |
48V DC ± 10% |
|
Includes PoE Adapter |
✓ |
|
Button |
(1) Factory-reset |
|
LEDs |
System R/G/B |
|
Weight |
Device: 1.7 kg
With mount: 2.9 kg |
|
Enclosure Material |
Aluminum alloy, UV-resistant polycarbonate |
|
Mount Material |
Stainless steel |
|
Pole Mount Diameter |
25–63.5 mm |
|
Wind Loading |
56 N at 200 km/h |
|
Operating Modes |
PtP |
|
Environmental & Compliance |
|
Ambient Operating Temperature |
-40°C to 55°C |
|
Ambient Operating Humidity |
5 to 95% non-condensing |
|
NDAA Compliant |
✓ |
|
Certifications |
CE, FCC, IC, Terragraph |
|
