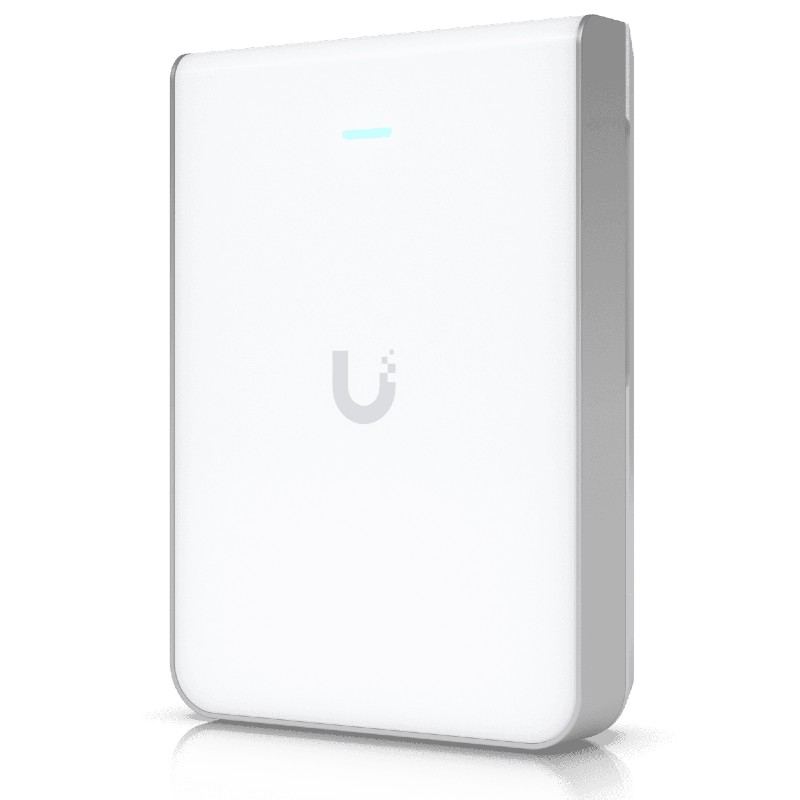

U7-Pro-Wall - UniFi AP U7-Pro-Wall
Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.
-
WiFi 7 with 6 GHz support
-
6 spatial streams
-
140 m² coverage
-
300+ connected devices
-
Powered using PoE+
-
2.5 GbE uplink
-
Versatile deployment with optional Flush Mount and Table Stand accessories (sold separately)
6 GHz operation is supported in these countries.
Multi-Link Operation (MLO) capability is coming soon and will be provided via software update.
|
Overview |
|

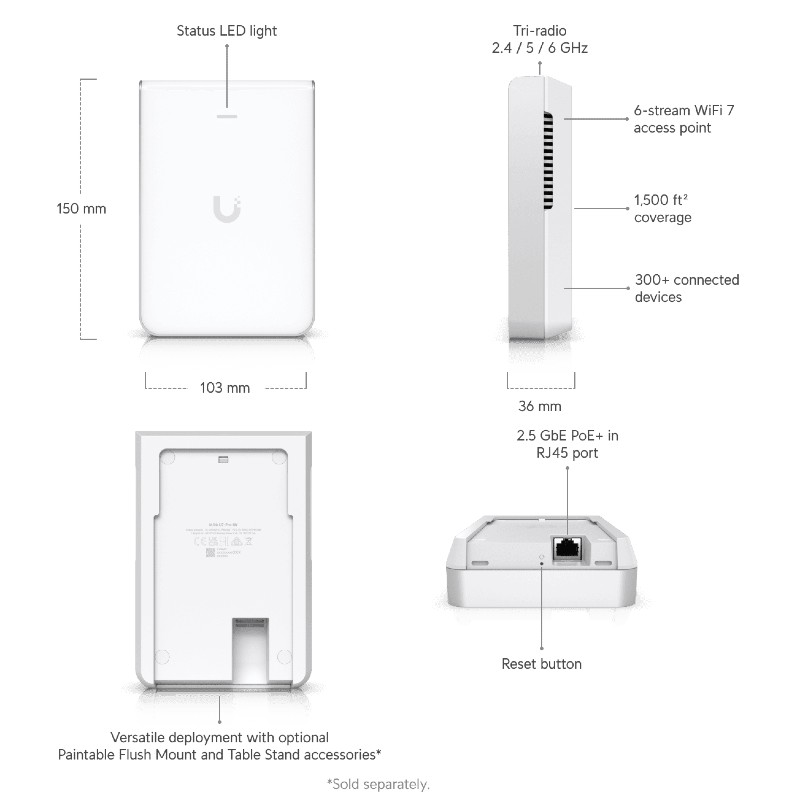

Dimensions |
150 x 103 x 36 mm |
|
WiFi Standard |
WiFi 7 |
|
Spatial Streams |
6 |
|
Coverage Area |
140 m² |
|
Max. Client Count |
300+ |
|
Uplink |
2.5 GbE |
|
Mounting |
Wall (Mount Included) |
|
Power Method |
PoE+ |
|
Performance |
|
MIMO |
-
6 GHz: 2 x 2 (DL/UL MU-MIMO)
-
5 GHz: 2 x 2 (DL/UL MU-MIMO)
-
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
|
|
Max. Data Rate |
-
6 GHz: 5.8 Gbps (BW320)
-
5 GHz: 4.3 Gbps (BW240)
-
2.4 GHz: 688 Mbps (BW40)
|
|
Antenna Gain |
-
6 GHz: 6 dBi
-
5 GHz: 5 dBi
-
2.4 GHz: 4 dBi
|
|
Max. TX Power |
-
6 GHz: 23 dBm
-
5 GHz: 26 dBm
-
2.4 GHz: 22 dBm
|
|
Max. BSSIDs |
8 per Radio |
|
Supported Data Rates |
-
802.11be (WiFi 7): 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
-
802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
-
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
-
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
|
|
Features |
|
Wireless Meshing |
✓ |
|
Band Steering |
✓ |
|
802.11v BSS Transition Management |
✓ |
|
802.11r Fast Roaming |
✓ |
|
802.11k Radio Resource Management (RRM) |
✓ |
|
Advanced Radio Management |
✓ |
|
Passpoint (Hotspot 2.0) |
✓ |
|
Captive Hotspot Portal |
-
Custom Branding Landing Page: ✓
-
Voucher Authentication: ✓
-
Payment-Based Authentication: ✓
-
External Portal Server Support: ✓
-
Password Authentication: ✓
|
|
Guest Network Isolation |
✓ |
|
Private Pre-Shared Key (PPSK) |
✓ |
|
WiFi Speed Limiting |
✓ |
|
Client Device Isolation |
✓ |
|
WiFi Schedules |
✓ |
|
RADIUS over TLS (RadSec) |
✓ |
|
Dynamic RADIUS-assigned VLAN |
✓ |
|
Hardware |
|
Max. Power Consumption |
22W |
|
Supported Voltage Range |
44—57V DC |
|

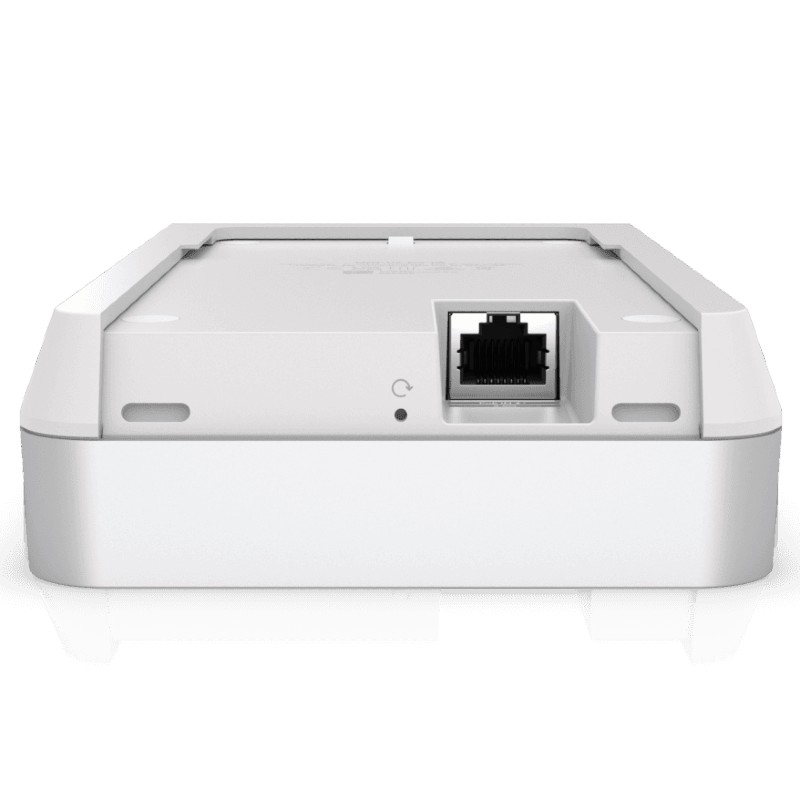

Networking Interface |
(1) 1/2.5 GbE RJ45 port |
|
Weight |
580 g |
|
Management |
Ethernet |
|
Enclosure Material |
Polycarbonate, aluminum |
|
Mount Material |
Aluminum |
|
LEDs |
System: White/Blue |
|
Channel Bandwidth |
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
|
NDAA Compliant |
✓ |
|
Certifications |
CE, FCC, IC, Anatel |
|
Operating Frequency |
Worldwide: 2400 - 2483.5 MHz, 5150 - 5725 MHz, 5925 - 7125 MHz
|
|
Ambient Operating Temperature |
-30 to 60° C |
|
Ambient Operating Humidity |
5 to 95% noncondensing |
| Package Contents: |
|---|
| 1 x U7-Pro-Wall
|

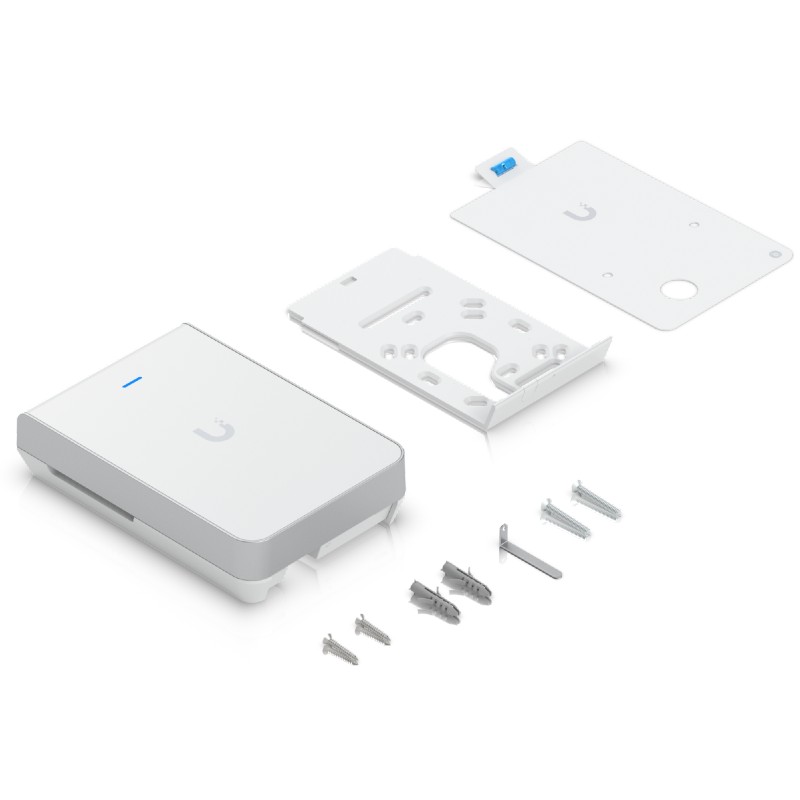

| 1 x Wall Mounting Kit
|
| 0 x Without PoE |
|
