UMR - UniFi Mobile Router LTE White
Managed mobile WiFi router that brings plug-and-play connectivity to any environment.
Bring your own nano-SIM for LTE data.
The UMR series is a standalone mobile router, manageable via WiFi, Ethernet, or remotely with an optional Mobility Cloud subscription (mobility.ui.com), no UniFi Console required.
Basic management, such as WiFi configuration, is always available with local access through the UniFi mobile app when connected to a Mobile Router’s WiFi.
PoE+ input required for PoE passthrough.
Note:
1. Mobility Cloud offers secure remote access and full management through the UniFi Mobility Portal for €2/month per Mobile Router. Mobility Cloud is not required when using your own nano-SIM.
|
Overview |
|
Dimensions |

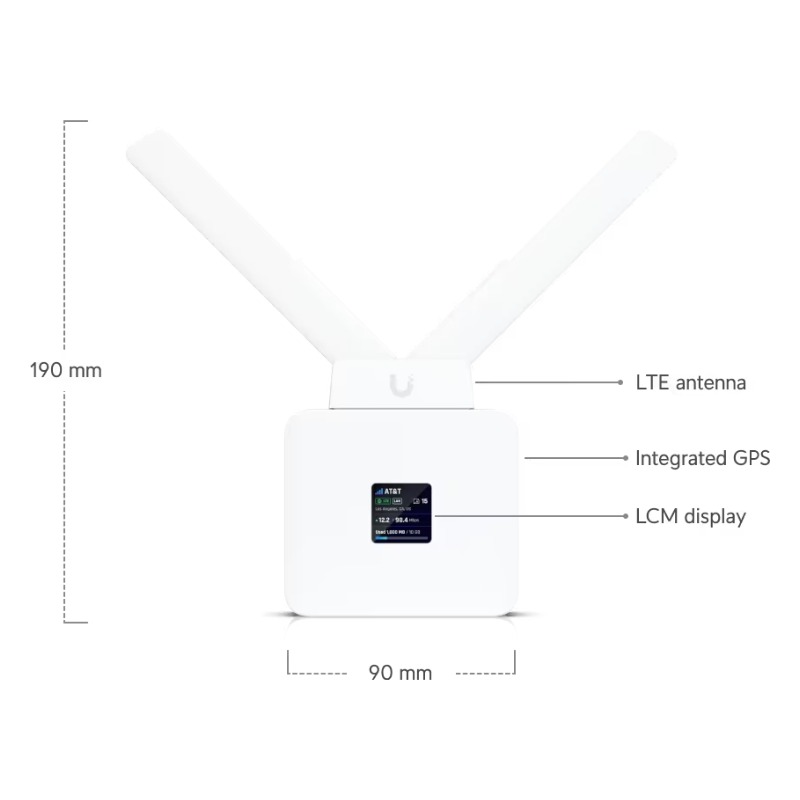

190 x 89.8 x 28.8 mm |
|

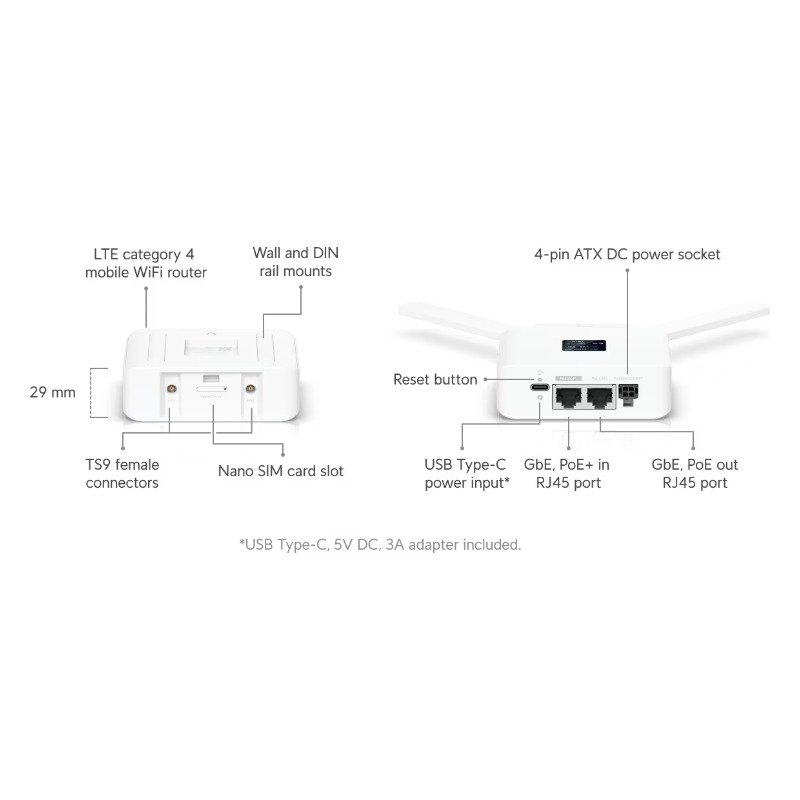

Networking Interface |
(2) GbE RJ45 ports, LTE Cat 4 radio, WiFi 4 |
|
SIM |
Nano SIM |
|
LTE Bands |
B1, B3, B7, B8, 20, B28 |
|
PoE Interface |
(1) PoE input
(1) PoE output (Max. 10W, requires PoE+ switch) |
|
Mounting |
DIN rail, Wall (Mounts Included) |
|
Mechanical |
|
Weight |
Without mount: 257 g
With mount: 303 g |
|
Enclosure Material |
Polycarbonate, aluminum alloy |
|
Mount Material |
Polycarbonate |
|
Features |
|
WAN |
Priority & Fallback ✓
Cellular ✓
Ethernet ✓ |
|
LTE Passthrough mode |
✓ |
|
Ethernet Bridge Mode |
✓ |
|
VPN Client |
OpenVPN ✓
WireGuard ✓ |
|
Site-to-Site VPN |
IPsec ✓
WireGuard ✓ |
|
WiFi Standard |
WiFi 4 |
|
Port Forwarding |
✓ |
|
Firewall |
✓ |
|
Static Routes |
✓ |
|
Networking |
|
Supported Data Rates |
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40) |
|
Hardware |
|
Management |
Ethernet
WiFi
LTE Throughput Speed: Download 150 Mbps / Upload 50 Mbps
GPS: ✓ |
|
Antennas |
Ports: (1) External LTE antenna (TS9 male)
Type: (1) External LTE antenna (TS9 male)
(1) Internal WiFi
(1) Internal GPS |
|
Max. TX Power |
19 dBm |
|
WiFi MIMO |
1 x 1 |
|
Max. Power Consumption |
9W |
|
Power Method |
PoE+ (48-54V DC)
USB Type-C (5V DC, 3A)
4-pin ATX DC (9V DC, 1A) |
|
Power Supply |
USB Type-C, 5V DC, 3A (Adapter included) |
|
Display |
1.3" touchscreen |
|
Ambient Operating Temperature |
-20 to 45° C |
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
Certifications |
CE, UKCA, GCF |
| Package Contents: |
|---|
| 1 x UniFi UMR
|
| 1 x Stand
|
| 1 x Wall mount
|
| 1 x Screws |
|
