U-Cable-C6-CMP - UniFi Indoor Cable CMP
Category 6 Ethernet cable for high-speed deployments located in environments that require plenum-rated cabling
The U-Cable-C6-CMP is a Category 6 UTP cable that supports speeds up to 1Gbps with its 23 AWG solid copper, twisted pair conductor.
The conductor's small diameter, combined with the cable's anti-crosstalk divider, isolates and protects signals from interference.
The U-Cable-C6 is also a CMP cable with a fire-resistant jacket that ensures full fire prevention, which is especially critical in plenum spaces where air is circulated to facilitate building HVAC.
Category 6 Ethernet connectors are recommended to accommodate the conductor's size and optimize its performance.
|
Specifications: |
|
Box Dimensions |
474 x 346 x 458 mm |
|
Box Weight |
14.75 kg |
|
Cable Length |
305 m |
|
Cable Color |
White |
|
Cable Type |
Category 6 |
|
Shielding Type |
UTP |
|
Flame Rating |
CMP |
|
Conductor Wire Gauge |
23 AWG |
|
Conductor Type |
Solid Bare Copper |
|
Jacket Material |
Low Smoke Flame Retardant PVC |
|
Jacket Diameter |
5.6 ± 0.2 mm |
|
Bend Radius |
Min. 22.4 mm |
|
Pulling Tension |
Max. 110 N |
|
Storage Temperature |
-20°C to 75°C |
|
Installation Temperature |
0°C to 60°C |
|
Operation Temperature |
-20°C to 60°C |
|
Anti-Crosstalk Divider |
Yes |
|
Ripcord |
Yes |
|
Data Rate |
10/100/1000 Base-T |
|
Reference Bandwith |
Up to 600 MHz |
|
Electrical Transmission:
|
ANSI/TIA-568-C.2 (2009)
ISO/IEC 11801 (Edition 2.2)
IEC 61156-5 (Edition 2.1) |
|
Flame Test:
|
NFPA 262 (CMP)
|
|
Material and Construction:
|
EU Directive 2011/65/EU (RoHS2)
EU Directive 2006/95/EC (LVD)
|
| Package Contents: |
|---|

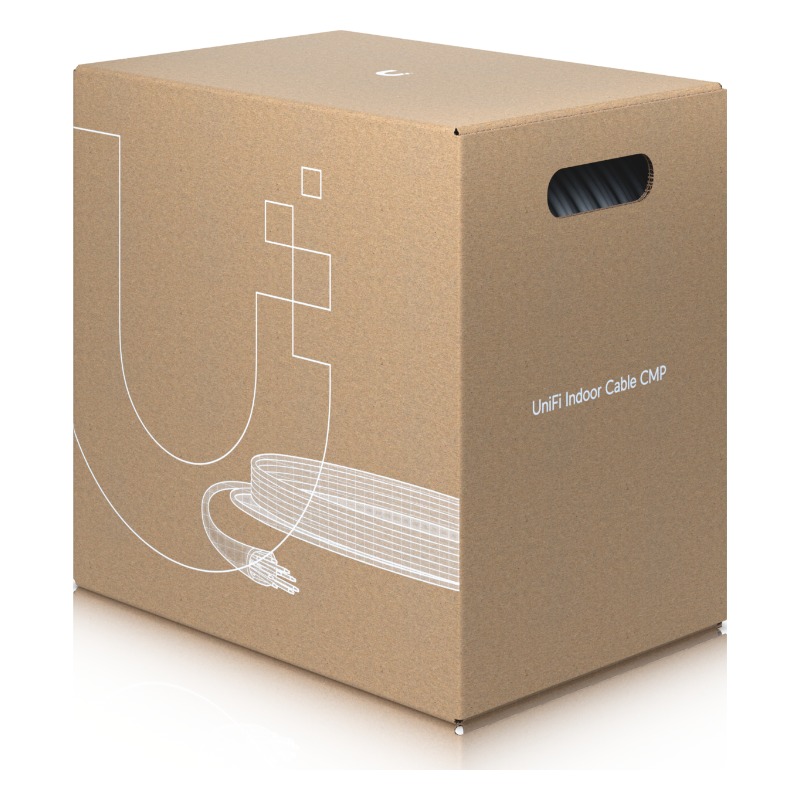

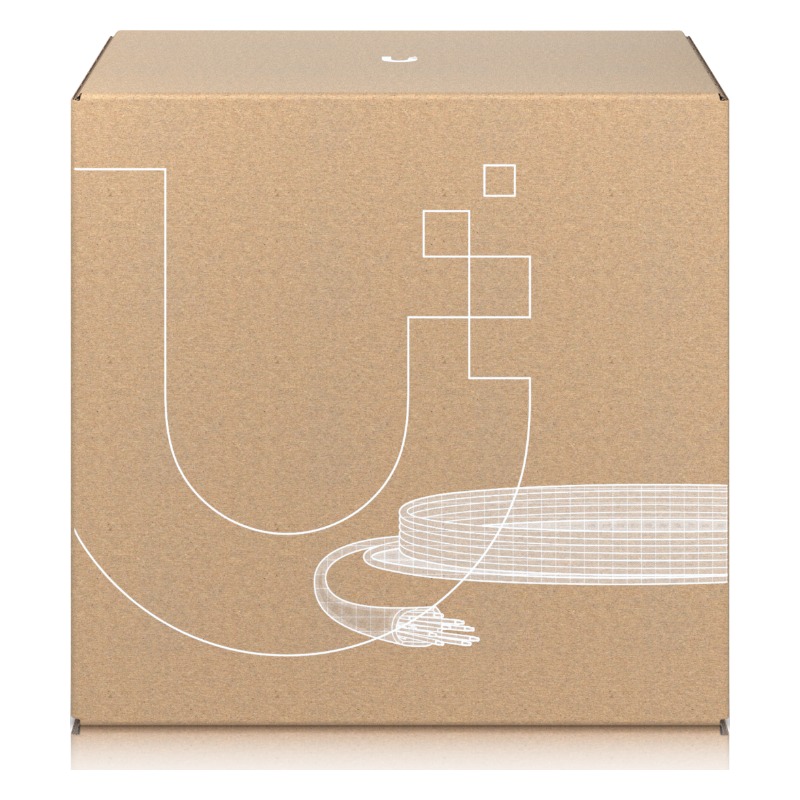

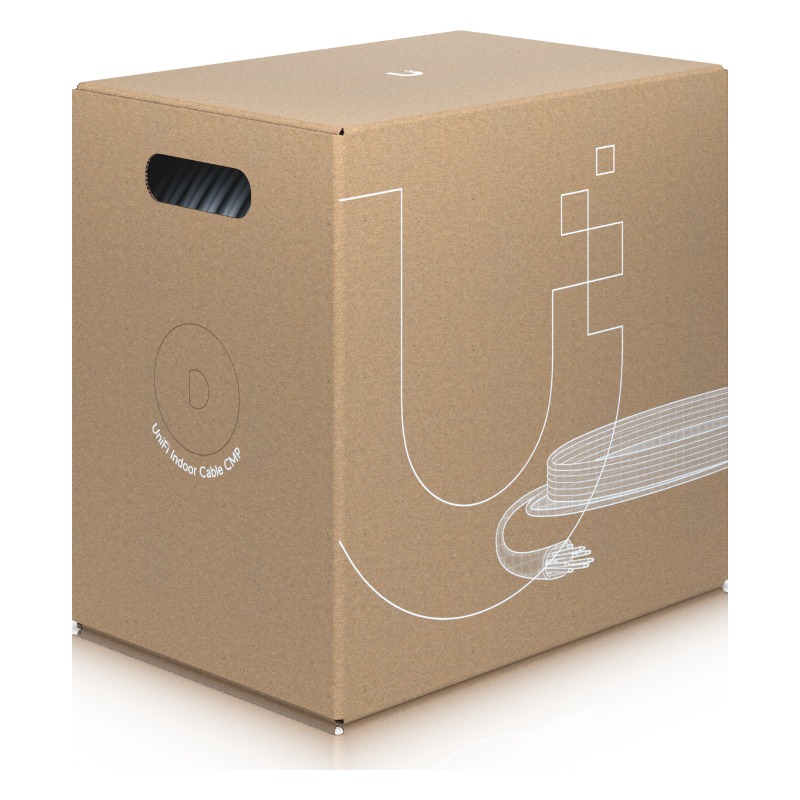

| 1 x U-Cable-C6-CMP 305m spool |
| Additional Images: |
|---|
 |
 |
|
