Ubiquiti » PoE & Power » UACC-Retrofit-PoE-2Wire
Ubiquiti UACC-Retrofit-PoE-2Wire, PoE Over 2-Wire Retrofit Extender
[3542][UACC-Retrofit-PoE-2Wire]
Price: 84,40€
 Order or Qty  Price
 > 500€  5+   83,56€
 > 1000€  10+   82,71€
 > 2000€  20+   81,87€
 > 5000€  40+   81,02€
 > 10000€  100+   80,18€
Prices exclude VAT

Ubiquiti UACC-Retrofit-PoE-2Wire, PoE Over 2-Wire Retrofit Extender
No Stock
Order Qty:
UPC:810177161660

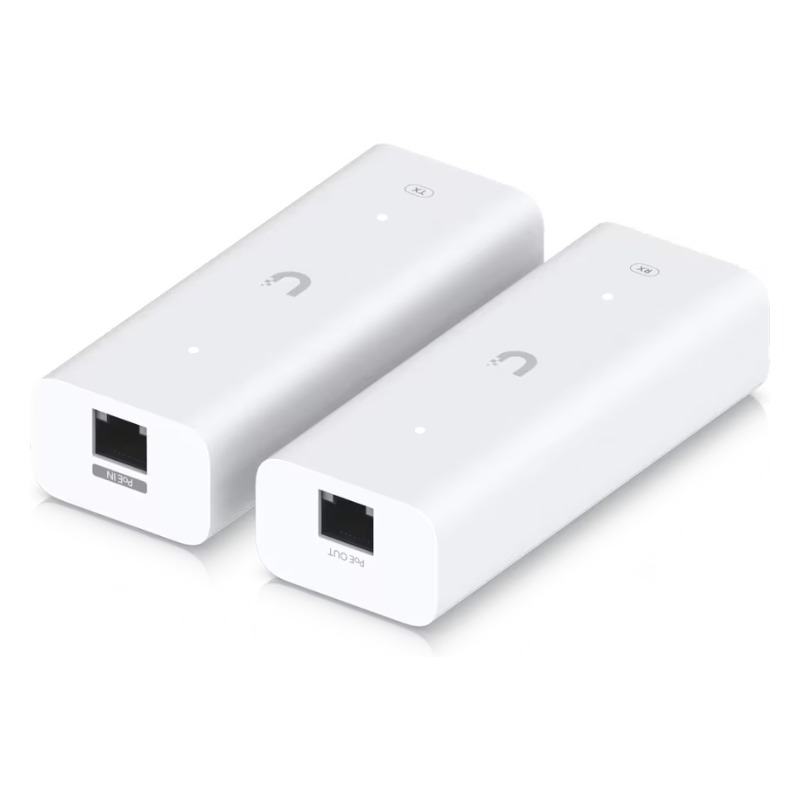

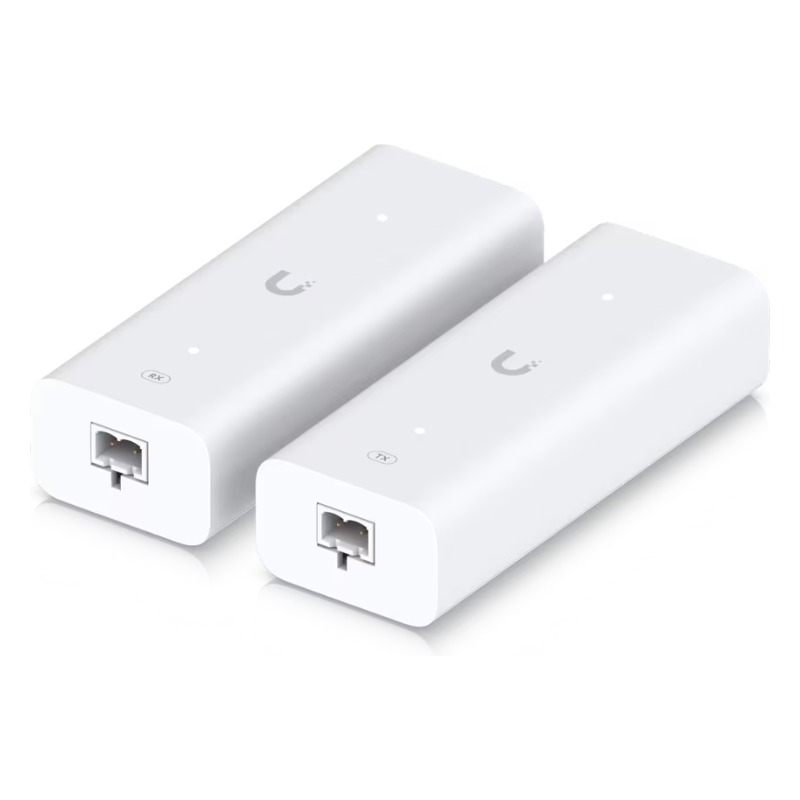

UACC-Retrofit-PoE-2Wire - PoE Over 2-Wire Retrofit Extender

A pair of extenders that extends PoE over twisted-pair or coaxial cables, ideal for retrofit scenarios.

Transmitter
  (1) PoE++ input
  ‎(1) 2-wire output

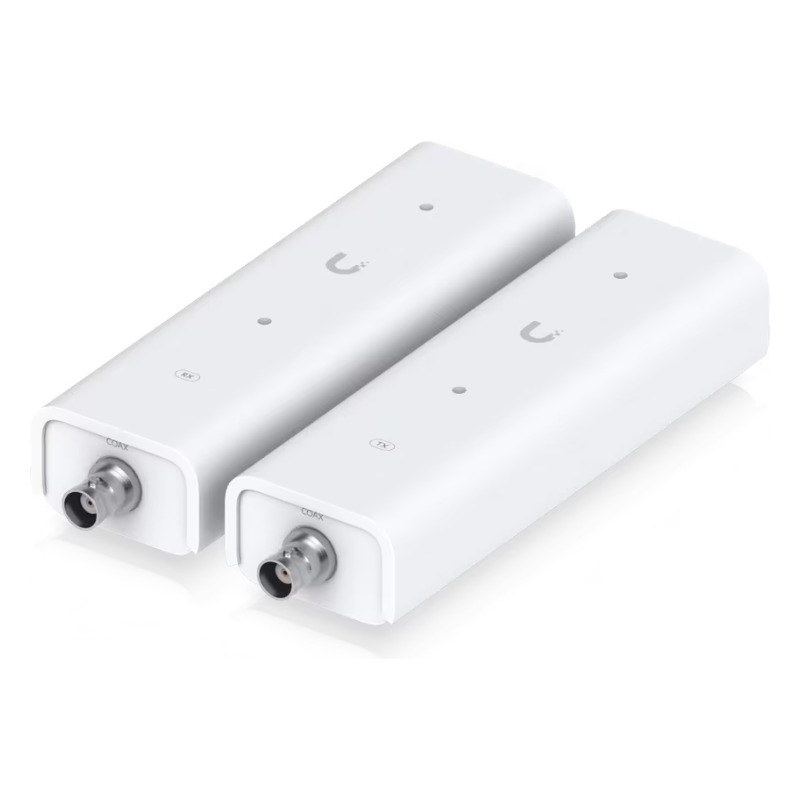

  (1) 2-wire to BNC adapter
Receiver

‎ (1) PoE/PoE+ output

‎ (1) 2-wire input

‎ (1) 2-wire to BNC adapter

Product Links:
Datasheet Datasheet   Installation Installation

Mechanical
Dimensions PoE in/out: 40 x 105 x 25 mm
Adapter: 43.5 x 138 x 30 mm
Weight PoE in: 77 g
PoE out: 79 g
Adapter: 140 g
Enclosure material Polycarbonate
Mounting material Polycarbonate
Coaxial connector BNC female
Hardware
Networking interface 1 10/100 MbE
1 Homeplug AV
Power method PoE++
PoE input 1 PoE++, 50V DC, 1.2A
PoE output 1 PoE+, 48V DC, 0.6A
Max. power consumption 3W (Without PoE output)
ESD/EMP protection Air: ±8kV, contact: ±4kV
Cable length UTP 24AWG
0.18 ohm / meter 		 RG-6
0.14 ohm / meter
Bandwidth Max output Bandwidth Max output
50 m 85 Mbps 25W 85 Mbps 25W
100 m 85 Mbps 13W 85 Mbps 20W
150 m 85 Mbps 9W 85 Mbps 13W
200 m 85 Mbps 6W 85 Mbps 9W
250 m 80 Mbps 4W 85 Mbps 7W
300 m 75 Mbps  3W 85 Mbps 6W
350 m 70 Mbps 0W 85 Mbps 4W
400 m 65 Mbps 0W 82 Mbps 3W
450 m 60 Mbps 0W 80 Mbps 0W
500 m 55 Mbps  0W 75 Mbps 0W
550 m 50 Mbps  0W 70 Mbps 0W
600 m —  — 65 Mbps 0W
650 m —  — 60 Mbps 0W
700 m — — 55 Mbps 0W
750 m — — 50 Mbps 0W
LED White
Ambient temperature -10 to 40° C
Ambient  humidity 5 to 90% noncondensing
Certifications CE, FCC, IC

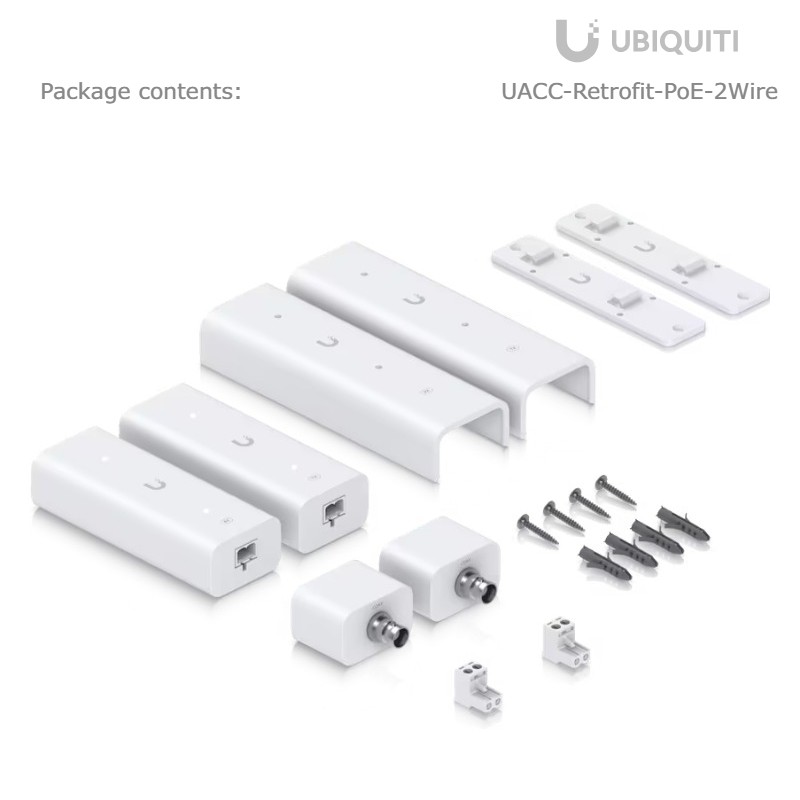

Package Contents:
1 x PoE Transmitter (PoE++)
1 x PoE Receiver (PoE+)
2 x 2-Wire header
2 x 2-wire to BNC adapter
2 x Wall mount bracket
1 x Screw kit
