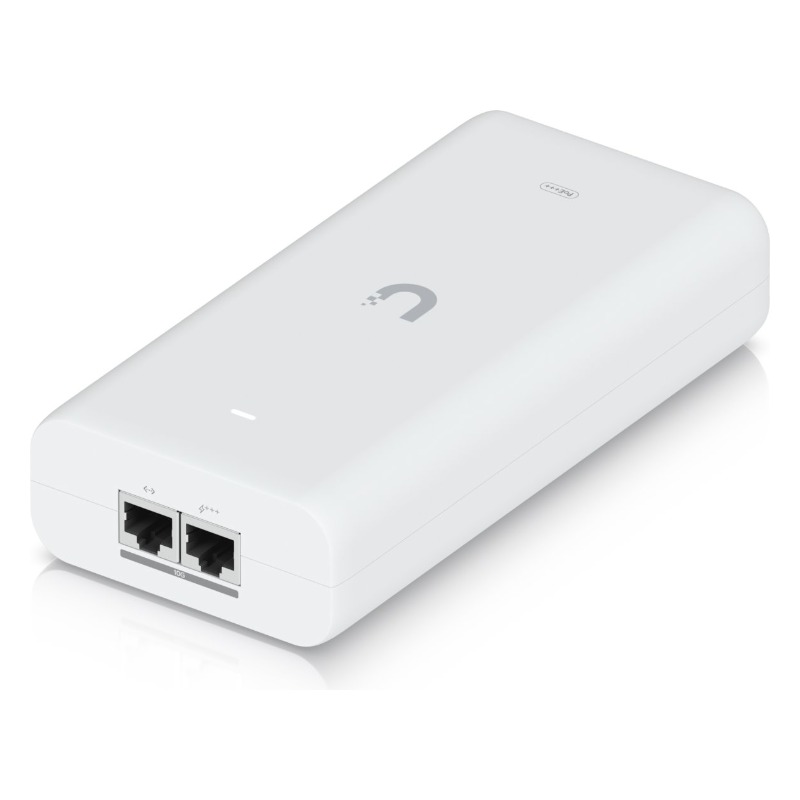

UACC-PoE+++-10G - 10G PoE+++ Adapter (90W)
An adapter that can power UniFi PoE+++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
 |
Delivers up to 90W of PoE+++ |
 |
Surge, peak pulse, and overcurrent protection |
 |

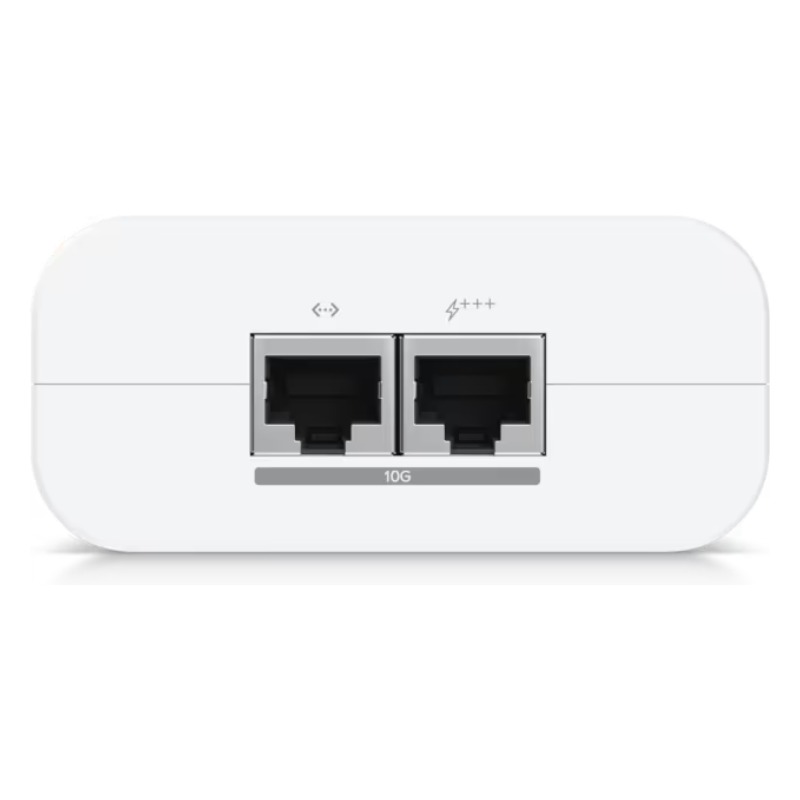

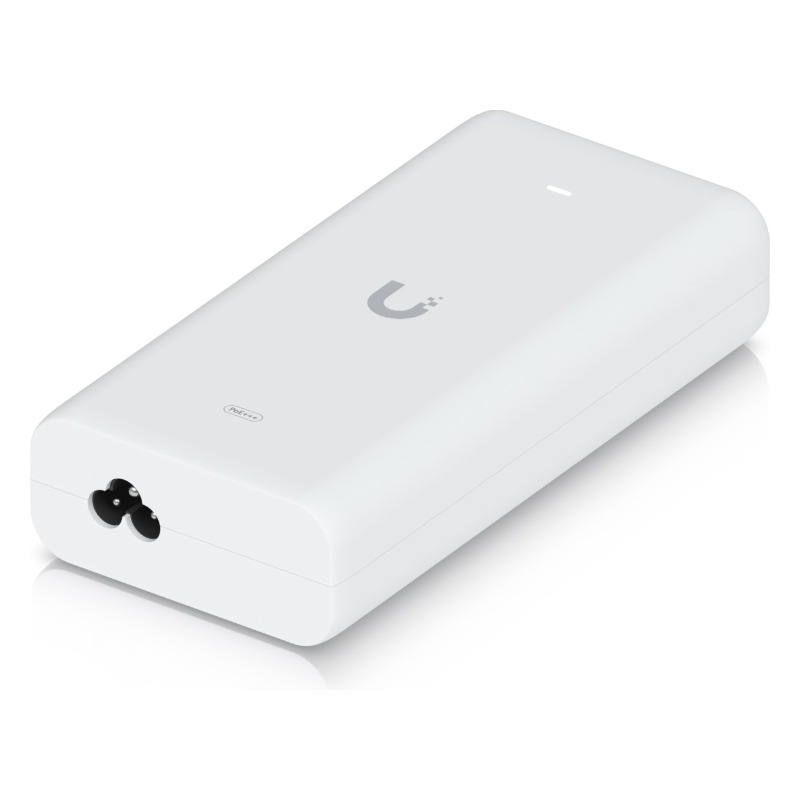

Contains RJ45 data input, AC cable with earth ground, and PoE+++ output |
 |
LED indicator for status monitoring |
 |
Supports wall mount, DIN rail and floating mount* |
*DIN rail and floating mount sold separately
Compatibility: USW-Flex-2.5G-8-PoE
|
Powering |
Mode |
(+)Pins |
(-)Pins |
|
4-Pair |
A + B |
1,2,4,5 |
3,6,7,8 |
|
Overview |
|
Dimensions |
164.5 x 71 x 42 mm |
|
Weight |
372 g |
|
Power Specifications |
|
Output Voltage |
54V DC @ 1.67A |
|
Max. PoE+ Wattage per Port by PSE |
90W |
|
Rated Voltage (Input) |
100—240V AC at 50/60Hz |
|
Input Current |
1.5A Max. |
|
Inrush Current |
<120A peak @ 230V AC |
|
4-pair Powering |
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
|
Efficiency |
>88% |
|
Switching Frequency |
65 kHz |
|
Output Ripple |
1% Max. |
|
Line Regulation |
≤ 2% |
|
Load Regulation |
≤ 5% |
|
Networking & Interfaces |
|
Gigabit LAN Port |
✓ |
|
Data In / PoE |
RJ45 shielded socket |
|
LAN Activity Indicator |
— |
|
Remote Reset Capability |
— |
|
Reset Button |
— |
|
Surge Protection |
|
Clamping Protection |
11V data, 60V power |
|
Max. Surge Discharge |
1500A (8/20 μs) power |
|
Peak Pulse Current |
36A (10/1000 μs) data |
|
Response Time |
<1 ns |
|
Shunt Capacitance |
<5 pF data |
|
Surge Protection |
Difference and common mode |
|
Environmental & Compliance |
|
Ambient Operating Temperature |
0 to 40° C |
|
Ambient Storage Temperature |
-30 to 70°C |
|
Ambient Operating Humidity |
10 to 95% noncondensing |
|
NDAA Compliant |
✓ |
|
Certifications |
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |

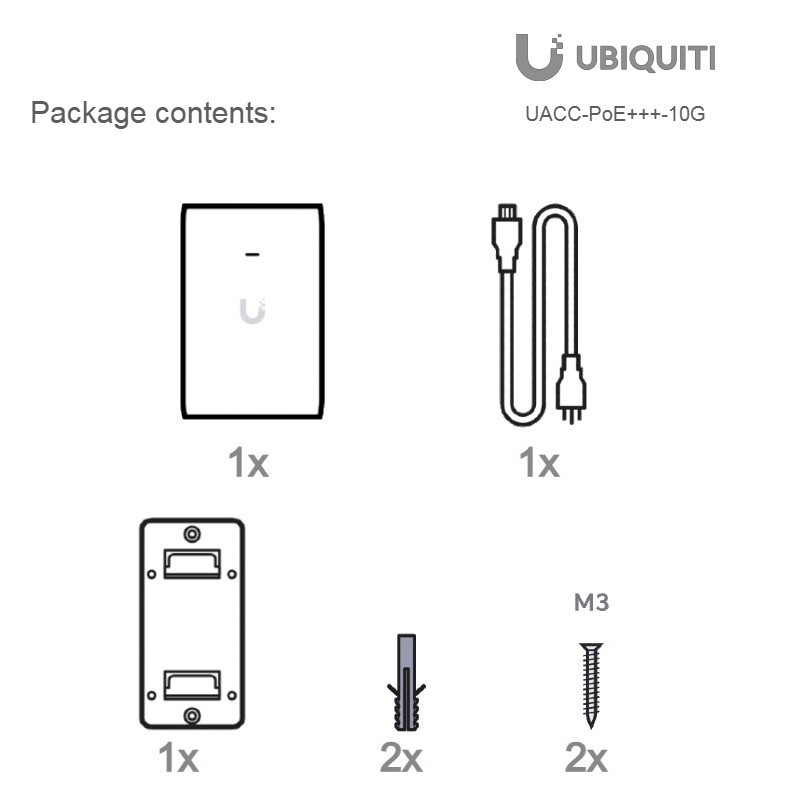

| Package Contents: |
|---|
| 1 x UACC-PoE+++-10G
|
| 1 x AC Cable EU
|
| 1 x Μount bracket
|
| 1 x Screw ΚΙΤ |
|
