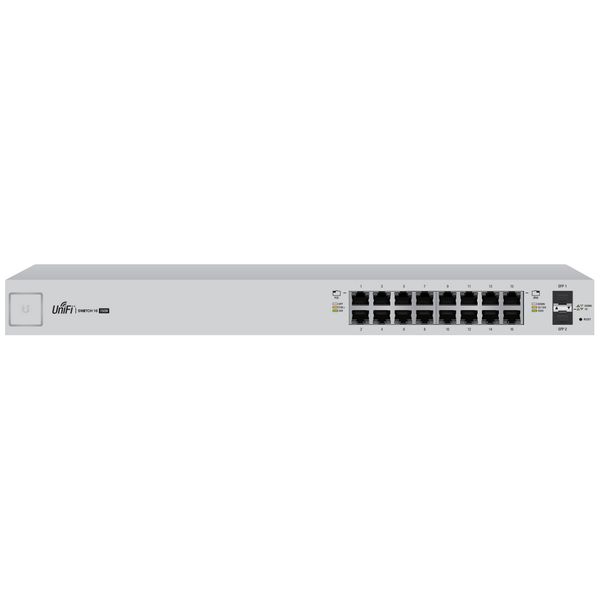

Unifi Switch 16 150W
The UniFi Switch delivers robust performance over its 18 independent switching ports.
Two SFP ports offer optical connectivity, and 16 Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE sharing a total of 150W PoE.
The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.
The UniFi Switch integrates with the UniFi Controller software for centralized management of your UniFi devices.
The UniFi Switch supports 802.1X authentication, dynamic and static VLAN tagging, port isolation, storm control, and guest control.
|
Specifications: |
|
Dimensions: |
443 x 43 x 221 mm |
|
Weight: |
2.80 kg |
|
Total Non-Blocking Throughput: |
18Gbps |
|
Switching Capacity: |
16 Gbps |
|
Forwarding Rate: |
26.78 Mpps |
|
Max. Power Consumption: |
150W |
|
Power Method: |
100-240VAC/50-60Hz, Universal Input |
|
Power Supply: |
AC/DC, Internal, 150W DC |
LEDs Per Port:
RJ45 Data Ports
SFP Data Ports |
PoE, Speed/Link/Activity
Speed/Link/Activity |
|
Networking Interfaces: |

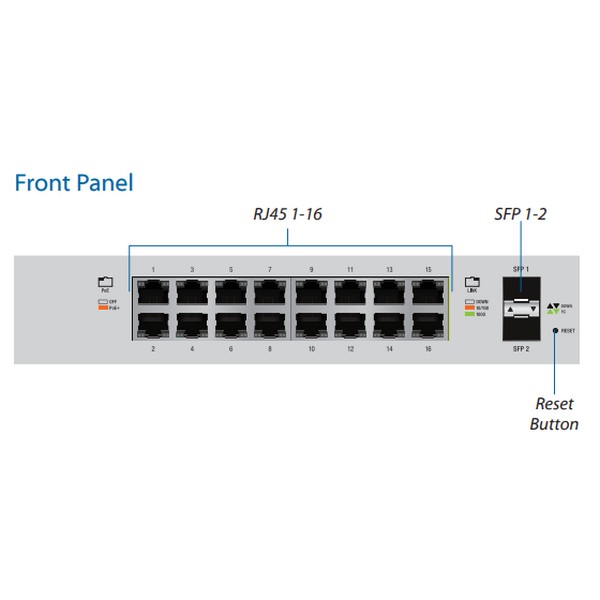

16x 10/100/1000Mbps RJ45 Ethernet Ports
2x 1Gbps SFP Ethernet Ports |
|
Management Interface: |
Ethernet In/Out of Band |
|
Certifications: |
CE, FCC, IC |
|
Rackmount: |
yes, 1U |
|
ESD/EMP Protection: |
Air: ±24kV, Contact: ±24kV |
|
Operating Temperature: |
-5°C to 40°C |
|
Operating Humidity: |
5 to 95% Noncondensing |
|
Shock and Vibration: |
ETSI300-019-1.4 Standard |
|
PoE Per Port: |
|
PoE Interfaces: |
POE+ IEEE 802.3af/at (Pins 1,2+, 3, 6-)
24VDC Passive PoE (Pins 4,5+,7,8-) |
|
Max. PoE+ Wattage per Port by PSE: |
34.2W |
|
Voltage Range 802.3at Mode: |
50-57V |
|
Max. Passive PoE Wattage per Port: |
17W |
|
24V Passive PoE Voltage Range: |
20-27V |

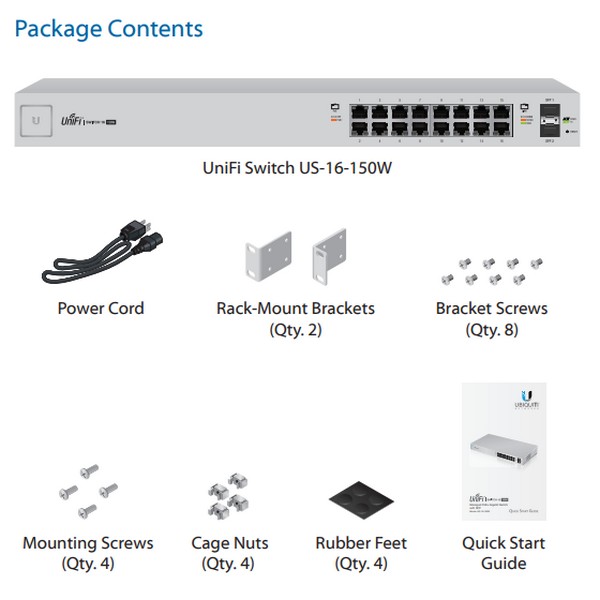

| Package Contents: |
|---|
| 1 x US-16-150W
|
| 1 x Rack Mounting Kit
|
| 1 x Power Cord
|
| 4 x Rubber Feet |
|
