USW-WAN-RJ45 - WAN Switch RJ45
10 GbE WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
The USW-WAN-RJ45 is a managed Layer 3 switch with four Gigabit RJ45 Ethernet ports, designed for high-availability WAN deployments.
It enables the connection of multiple UniFi Gateways to a single ISP using wired infrastructure, supporting Shadow Mode and automatic failover.
Fully integrates with the UniFi Network platform for centralized management and monitoring.
|
Specifications: |
|
Dimensions |
442.4 x 120 x 43.7 mm |
|

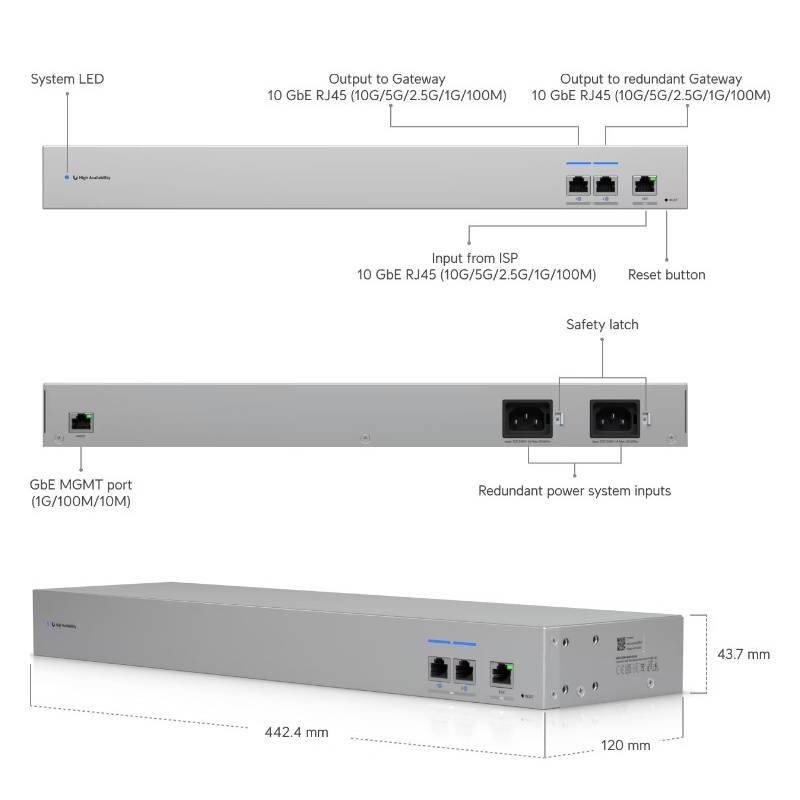

Port Layout |
1× GbE RJ45 (1G/100M/10M)
3× 10 GbE RJ45 (10G/5G/2.5G/1G/100M) |
|
Redundancy |
2× AC inputs |
|
Form Factor |
Rack mount (1U) |
|
Switching Capacity |
20 Gbps |
|
Total Non-Blocking Throughput |
10 Gbps |
|
Forwarding Rate |
15 Mpps |
|
Max. Power Consumption |
18W |
|
Power Method |
2× Universal input, 100—240V AC, 50/60 Hz |
|
Power Input Method |
AC input |
|
Power Supply |
2× AC/DC, internal, 36W |
|
Supported Voltage Range |
100—240V AC |
|
Management |
Ethernet |
|
Weight |
Without mounting brackets: 2.3 kg
With mounting brackets: 2.4 kg |
|
Enclosure Material |
SGCC steel |
|
Mount Material |
SGCC steel |
|
ESD/EMP Protection |
Air: ±16kV, Contact: ±10kV |
|
Ambient Operating Temperature |
-5°C to 40°C |
|
Ambient Operating Humidity |
10 to 90% non-condensing |
|
LEDs |
Ethernet: ✓
System: ✓ |
|
Certifications |
CE, FCC, IC |
|
NDAA Compliant |
✓ |
|
Application Requirements |
UniFi Network version 9.1.120 and later |

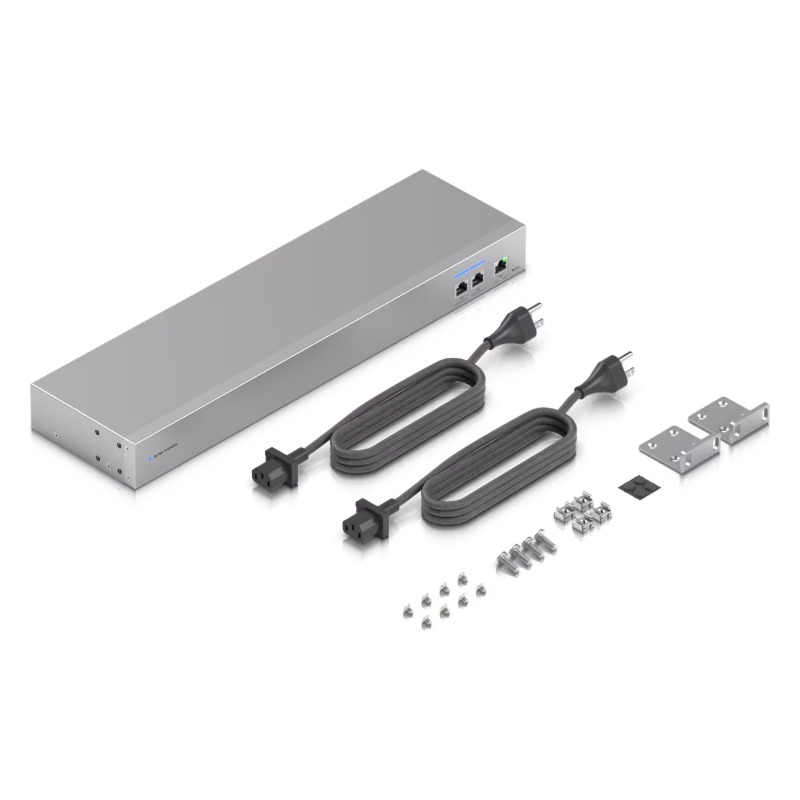

| Package Contents: |
|---|
| 1 x USW-WAN-RJ45
|
| 1 x Mountign KIT
|
| 2 x AC Cable |
|
