Overview |
|

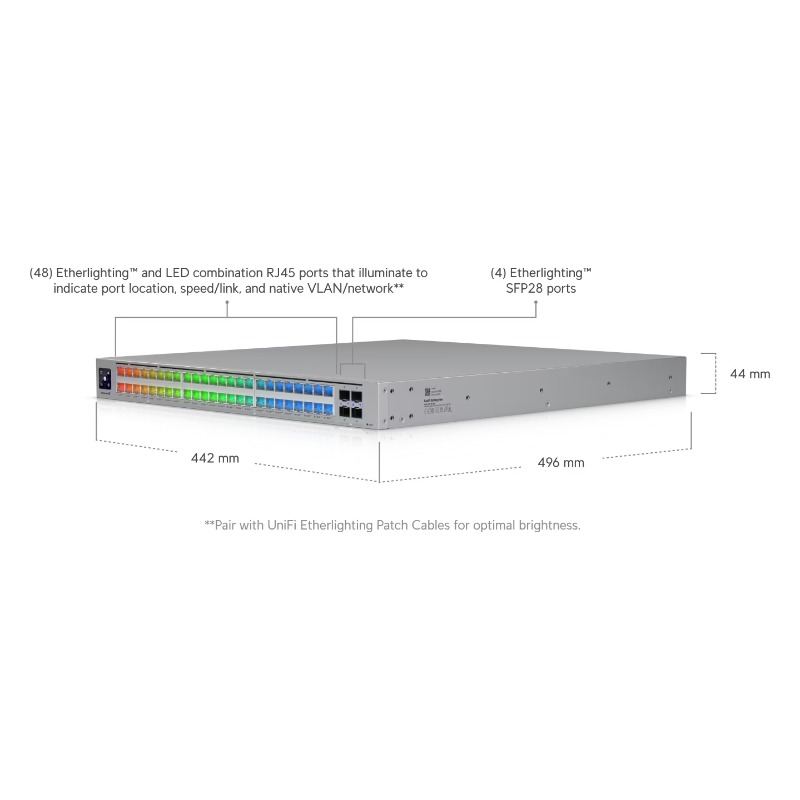

Dimensions |
442.4 x 43.7 x 496 mm |
|

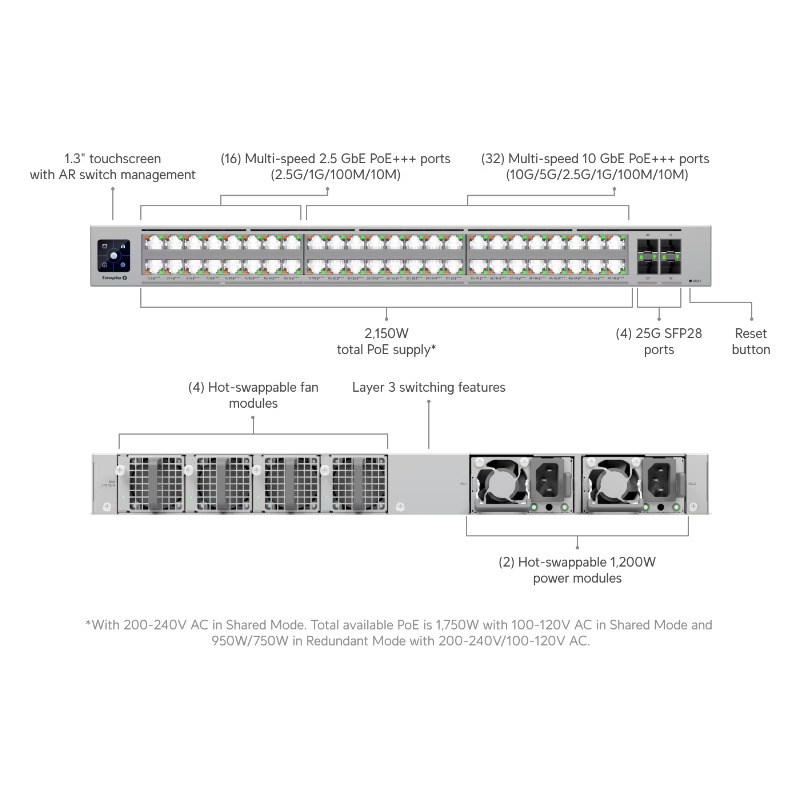

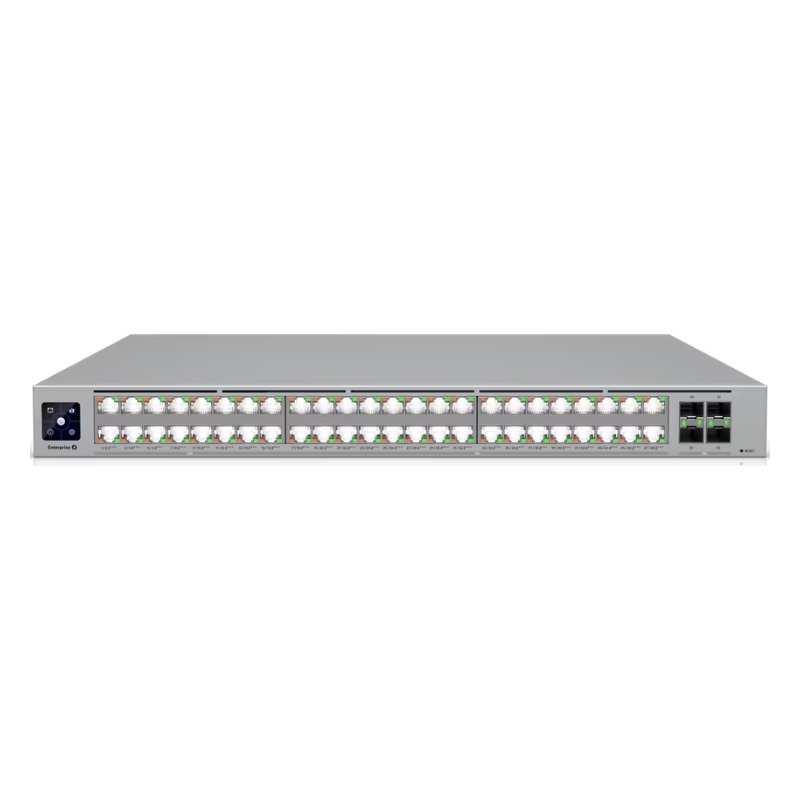

Port Layout |
2.5 GbE RJ45: 16 (All PoE+++)
(2.5G/1G/100M/10M)
10 GbE RJ45: 32 (All PoE+++)
(10G/5G/2.5G/1G/100M/10M)
25G SFP28: 4 (25G/10G/1G)
100G QSFP28: 2 (100G) |
|
Max. PoE Output |
Up to PoE+++ |
|
Total PoE Availability |
200-240V AC Shared Mode: 2,150W
100-120V AC Shared Mode: 1,750W
200-240V AC Redundant Mode: 950W
100-120V AC Redundant Mode: 750W |
|
Redundancy |

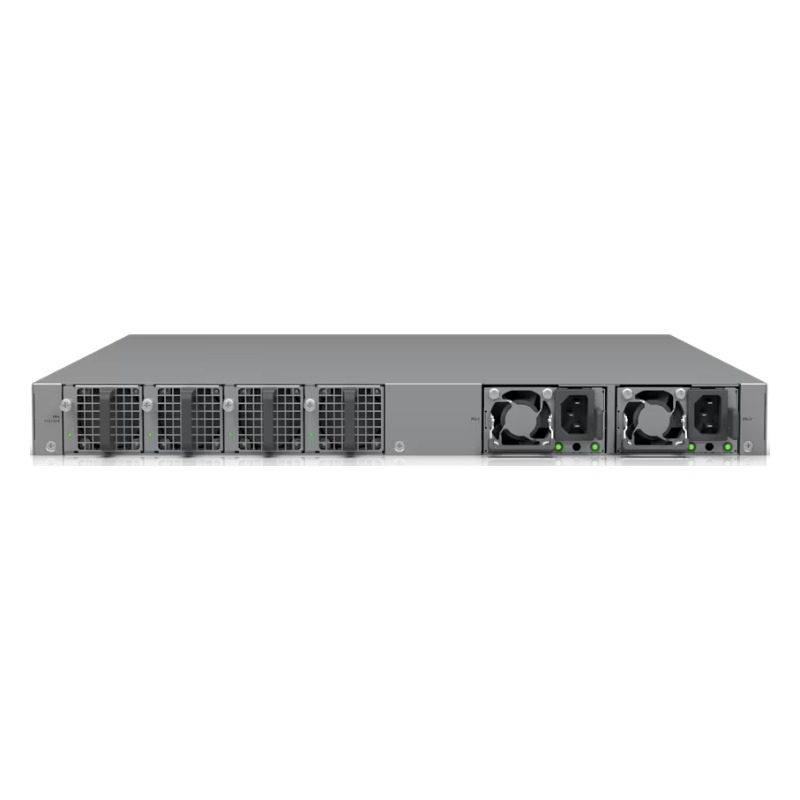

(2) Hot-Swappable PSUs
(4) Hot-Swappable Fans |
|
Layer 3 |
✓ |
|
Form Factor |
Rack mount (1U, Full-Depth) |
|
Etherlighting™ |
✓ |
|
Performance |
|
Switching Capacity |
920 Gbps |
|
Total Non-Blocking Throughput |
460 Gbps |
|
Forwarding Rate |
684 Mpps |
|
Supported VLANs |
1,000 |
|
MAC Address Table Size |
128,000 |
|
L3 Table Size |
ARP Entries: 128,000
IPv4 Routes: 256,000 |
|
Packet Buffer Size |
8 MB |
|
Access Lists |
IPv4: 256
MAC: 256 |
|
Layer 3 Features |
|
DHCP Server (Local Networks) |
✓ |
|
DHCP Relay |
✓ |
|
Inter-VLAN Routing (Local Networks) |
✓ |
|
Static Routing (Local Networks) |
✓ |
|
Layer 2 Features |
|
LACP Port Aggregation |
✓ |
|
STP & RSTP |
✓ |
|
QoS (DSCP) |
✓ |
|
Pro AV Profiles |
Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron |
|
Advanced IGMP Configuration |
Querier, Fast Leave, Router Port |
|
IGMP Snooping |
✓ |
|
802.1X Control |
✓ |
|
MAC-Based ACLs & Device Isolation |
✓ |
|
DHCP Snooping & Guarding |
✓ |
|
Egress Rate Limit |
✓ |
|
Flow Control |
✓ |
|
Storm Control |
✓ |
|
Multicast & Broadcast Rate Limiting |
✓ |
|
MAC Address Blocking |
✓ |
|
IP-Based ACLs & Network Isolation |
✓ |
|
MAC-Based Port Restriction |
✓ |
|
Port Isolation |
✓ |
|
Port Mirroring |
✓ |
|
Jumbo Frames |
✓ |
|
LLDP-MED |
✓ |
|
Voice VLAN |
✓ |
|
Loop Protection |
✓ |
|
Hardware |
|
PoE Ports |
PoE+++: 48 |
|
Max. PoE Wattage per Port by PSE |
PoE: 15.4W
PoE+: 30W
PoE++: 60W
PoE+++: 90W |
|
Max. Power Consumption |
250W (Excluding PoE Output)
2400W (Including PoE Output) |
|
Power Method |
(2) Universal input, 100—240V AC, 50/60 Hz |
|
Power Input Method |
(2) AC input, Hot-swappable power modules |
|
Power Supply |
(2) Hot-swappable AC/DC 1,200W power modules |
|
Supported Voltage Range |
100—240V AC |
|
Management |
Ethernet
AR |
|
Weight |
Without mounting brackets: 9.46 kg
With mounting brackets: 9.56 kg |
|
Enclosure Material |
SGCC steel |
|
Mount Material |
SGCC steel |
|
Supported Rack Depth |
482.6 mm four-post racks
Posts depths ranging from 650 to 1,000 mm |
|
LCM Display |
1.3" touchscreen |
|
Fan Method |
(4) hot-swappable fan modules |
|
ESD Protection |
Air: ± 30kV, contact: ± 19kV |
|
Ambient Operating Temperature |
-5 to 40° C |
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
Etherlighting™ |
Ethernet ✓
SFP28 ✓ |
|
NDAA Compliant |
✓ |
|
Certifications |
CE, FCC, IC |
|
Software |
|
Application Requirements |
UniFi Network: Version 9.0.114 and later |
