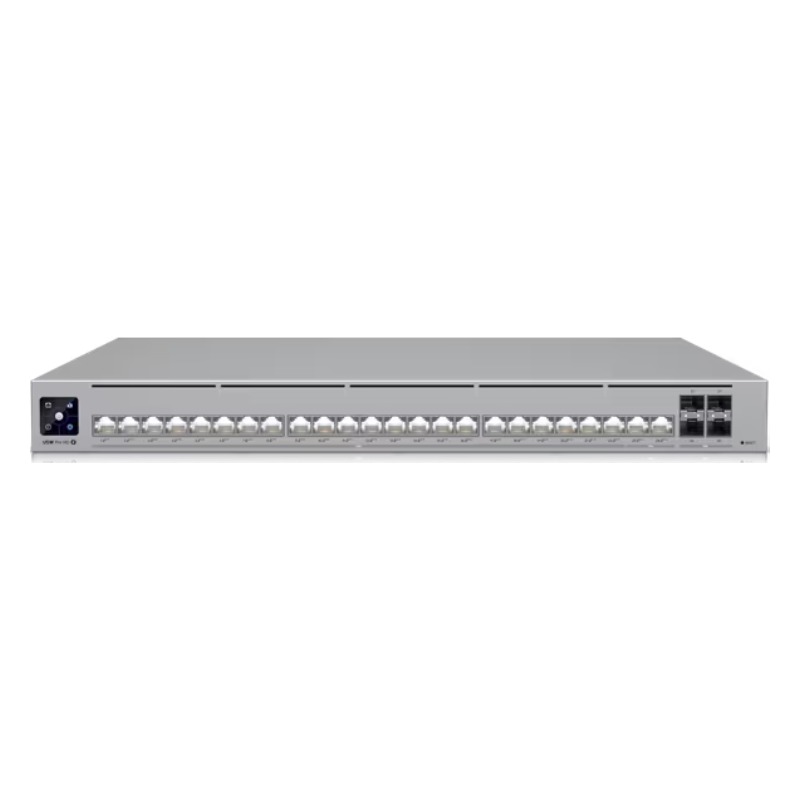

USW-Pro-HD-24-PoE - UniFi Pro HD 24 Switch 660W
PoE Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.
|
Overview |
|

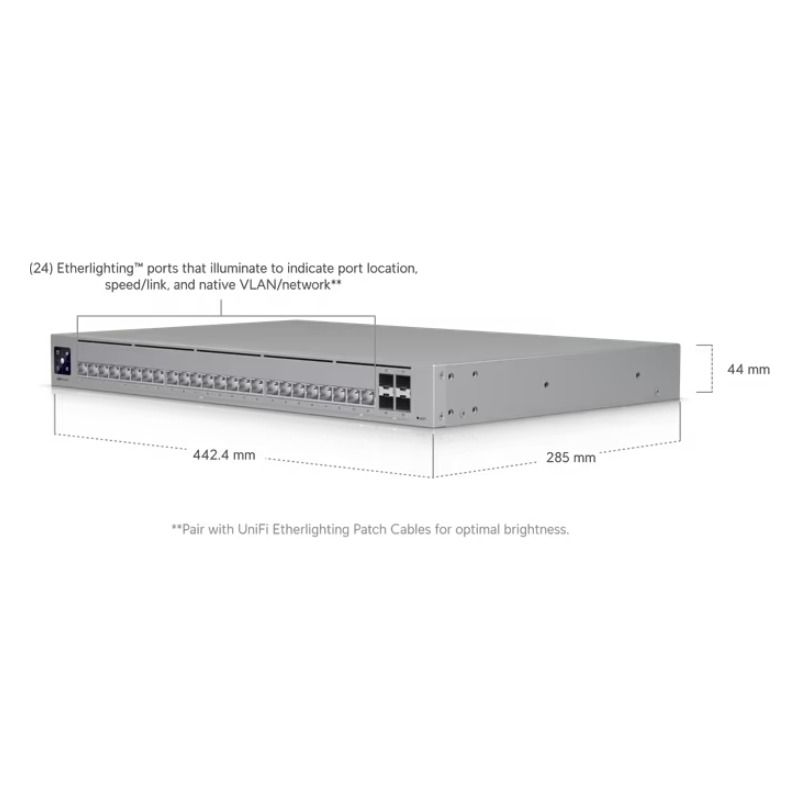

Dimensions |
442 x 400 x 44 mm |
|
Form Factor |
Rack mount (1U) |
|

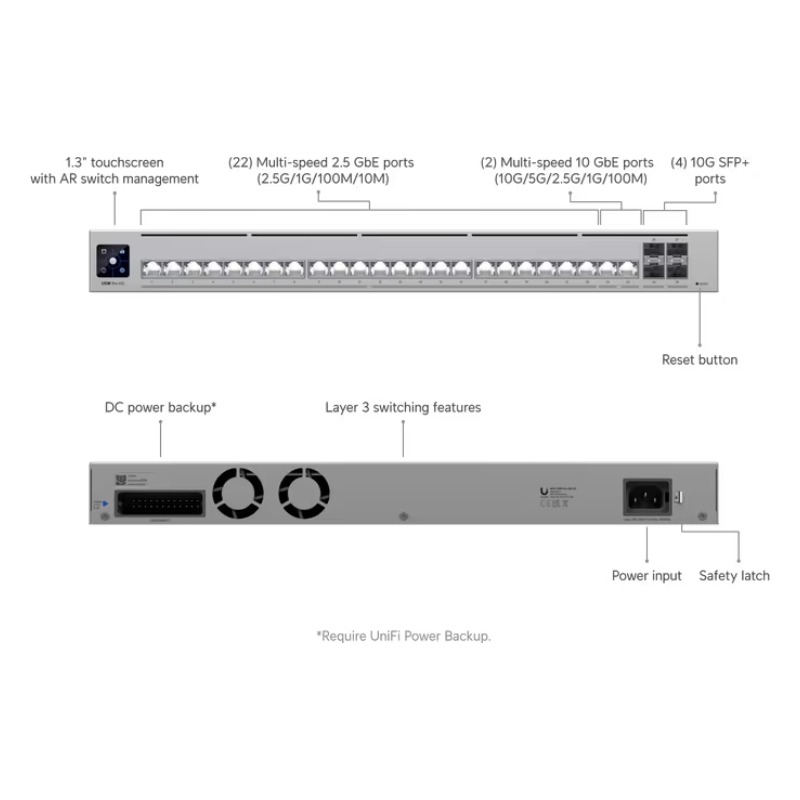

Port Layout: 2.5 GbE RJ45 |
22 (2.5G/1G/100M/10M), All PoE++ |
|
Port Layout: 10 GbE RJ45 |
2 (10G/5G/2.5G/1G/100M), All PoE++ |
|
Port Layout: 10G SFP+ |
4 (10G/1G) |
|
Max. PoE Output |
Up to PoE++ |
|
Total PoE Availability |
600W |
|
Redundancy |
DC Power Backup |
|
Layer 3 |
✓ |
|
Etherlighting™ |
✓ |
|
Performance |
|
Switching Capacity |
230 Gbps |
|
Total Non-Blocking Throughput |
115 Gbps |
|
Forwarding Rate |
171 Mpps |
|
Supported VLANs |
1,000 |
|
MAC Address Table Size |
32,000 |
|
L3 Table Size (ARP Entries) |
12,000 |
|
L3 Table Size (IPv4 Routes) |
12,000 |
|
Packet Buffer Size |
2 MB |
|
Access Lists (IPv4) |
128 |
|
Access Lists (MAC) |
128 |
|
Layer 3 Features |
|
DHCP Server (Local Networks) |
✓ |
|
DHCP Relay |
✓ |
|
Inter-VLAN Routing (Local Networks) |
✓ |
|
Static Routing (Local Networks) |
✓ |
|
Layer 2 Features |
|
LACP Port Aggregation |
✓ |
|
STP & RSTP |
✓ |
|
QoS (DSCP) |
✓ |
|
Pro AV Profiles |
Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron |
|
Advanced IGMP Configuration |
Querier, Fast Leave, Router Port |
|
IGMP Snooping |
✓ |
|
802.1X Control |
✓ |
|
MAC-Based ACLs & Device Isolation |
✓ |
|
DHCP Snooping & Guarding |
✓ |
|
Egress Rate Limit |
✓ |
|
Flow Control |
✓ |
|
Storm Control |
✓ |
|
Multicast & Broadcast Rate Limiting |
✓ |
|
MAC Address Blocking |
✓ |
|
IP-Based ACLs & Network Isolation |
✓ |
|
MAC-Based Port Restriction |
✓ |
|
Port Isolation |
✓ |
|
Port Mirroring |
✓ |
|
Jumbo Frames |
✓ |
|
LLDP-MED |
✓ |
|
Voice VLAN |
✓ |
|
Loop Protection |
✓ |
|
Hardware |
|
PoE Ports |
24 (PoE++) |
|
Max. PoE Wattage per Port (PoE) |
15.4W |
|
Max. PoE Wattage per Port (PoE+) |
30W |
|
Max. PoE Wattage per Port (PoE++) |
64W |
|
Max. Power Consumption (Excluding PoE) |
60W |
|
Max. Power Consumption (Including PoE) |
660W |
|

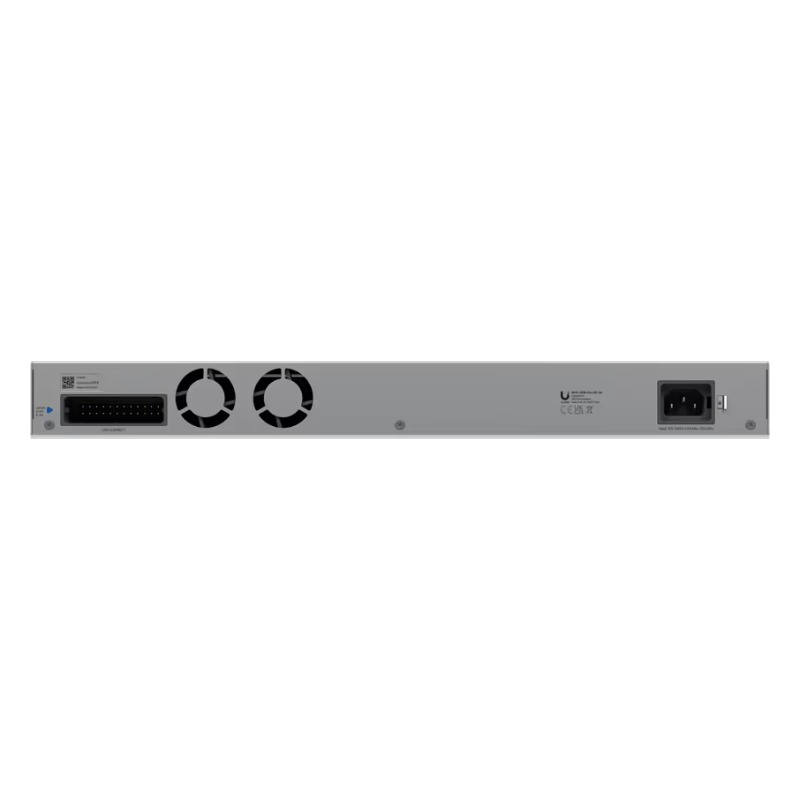

Power Method |
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input |
|
Power Input Method |
AC input |
|
Power Supply |
AC/DC, internal, 660W |
|
Supported Voltage Range |
100—240V AC |
|
Management |
Ethernet, AR |
|
Weight |
Without mounting brackets: 6.2 kg
With mounting brackets: 6.3 kg |
|
Enclosure Material |
SGCC steel |
|
Mount Material |
SGCC steel |
|
Supported Rack Depth |
600 - 1,200 mm |
|
LCM Display |
1.3" touchscreen |
|
Ambient Operating Temperature |
-5 to 40° C |
|
Ambient Operating Humidity |
10 to 90% noncondensing |
|
Etherlighting™ (Ethernet) |
✓ |
|
Etherlighting™ (SFP+) |
✓ |
|
NDAA Compliant |
✓ |
|
Certifications |
CE, FCC, IC |
|
Software |
|
Application Requirements |
UniFi Network Version 9.0.114 and later |

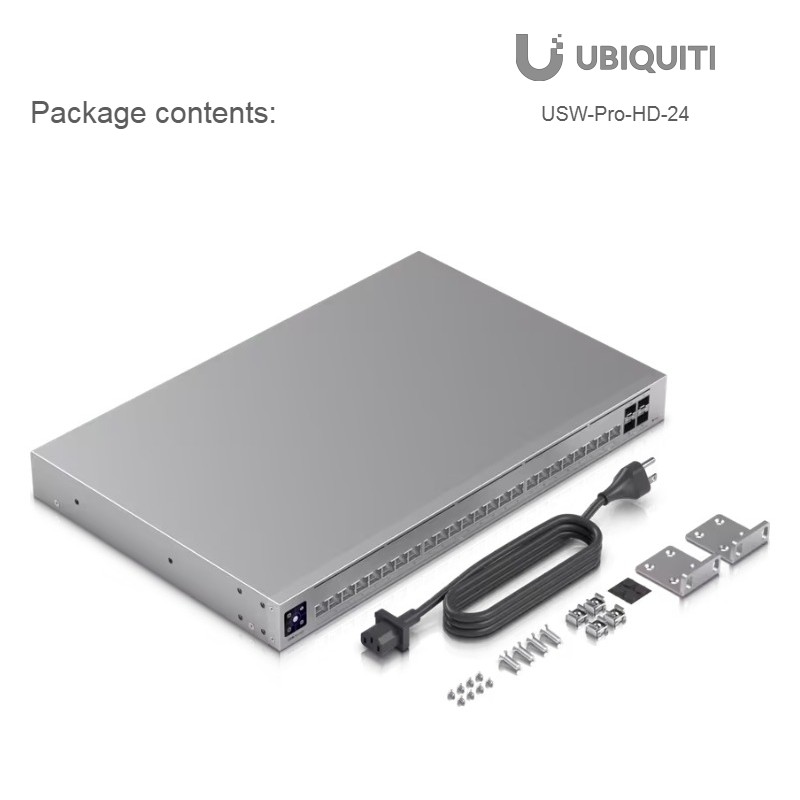

| Package Contents: |
|---|
| 1 x USW-Pro-HD-24-PoE
|
| 1 x AC Power Cable
|
| 1 x Rackmount kit |
|
