UACC-SFP-Wizard - UniFi SFP Wizard
Instantly reprogram, test, and unlock universal compatibility for every optical module — with full diagnostics and OTA updates built in.
SFP Wizard is a portable optical module programmer and diagnostic tool, enhanced through OTA updates via the UniFi mobile app.
Using SFP Wizard, you can copy SFP transceiver information from third-party modules to Ubiquiti SFP/QSFP modules and read DDM diagnostic information, including powering up a module's laser for a link check.
|

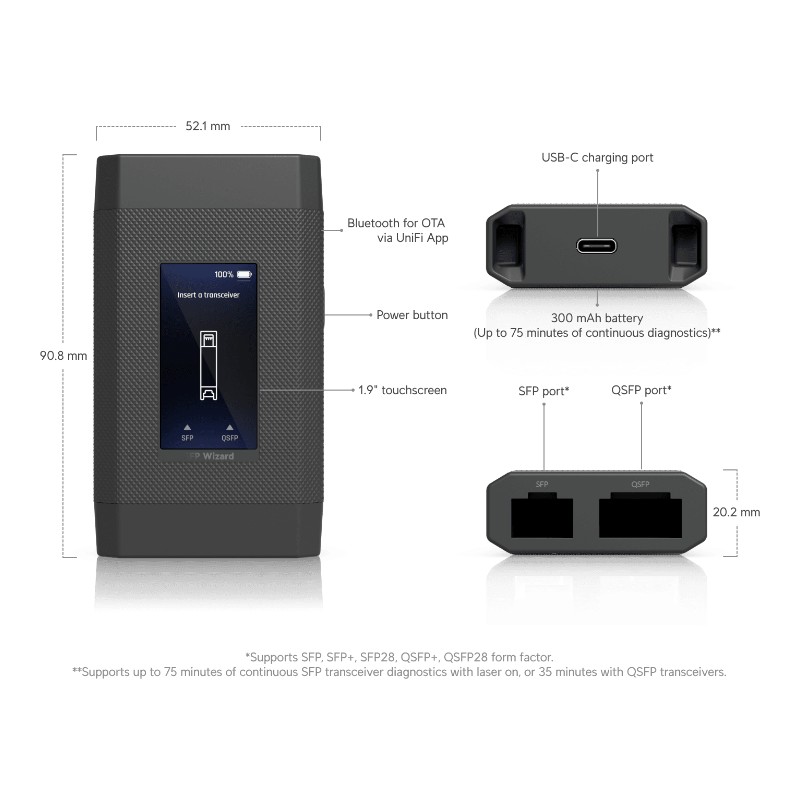

Specifications: |
|
Supported Form Factors |
SFP, SFP+, SFP28, QSFP+, QSFP28 |
|
Diagnostics |
SFP/QSFP transceiver diagnostics with laser control |
|
Networking Interface |
BLE (Bluetooth Low Energy) |
|
Power & Battery |
|
Power Method |
Rechargeable 3.7V DC, 300mAh Li-ion battery |
|
Battery Life (SFP) |
Up to 75 minutes (continuous with laser on) |
|
Battery Life (QSFP) |
Up to 35 minutes |
|
Charging |
USB-C (5V DC/0.5A) |
|
Max. Power Consumption |
0.6W |
|
Mechanical & Display |
|
Display |
1.9 inch touchscreen |
|
Buttons |
Power button |
|
Operating Temperature |
0 to 40° C |
|
Operating Humidity |
10 to 90% non-condensing |
|
Compliance & Software |
|
Software Requirements |
UniFi iOS 10.29.1+ / Android 10.30.2+ |
|
Compliance |
NDAA Compliant, FCC, IC, CE |

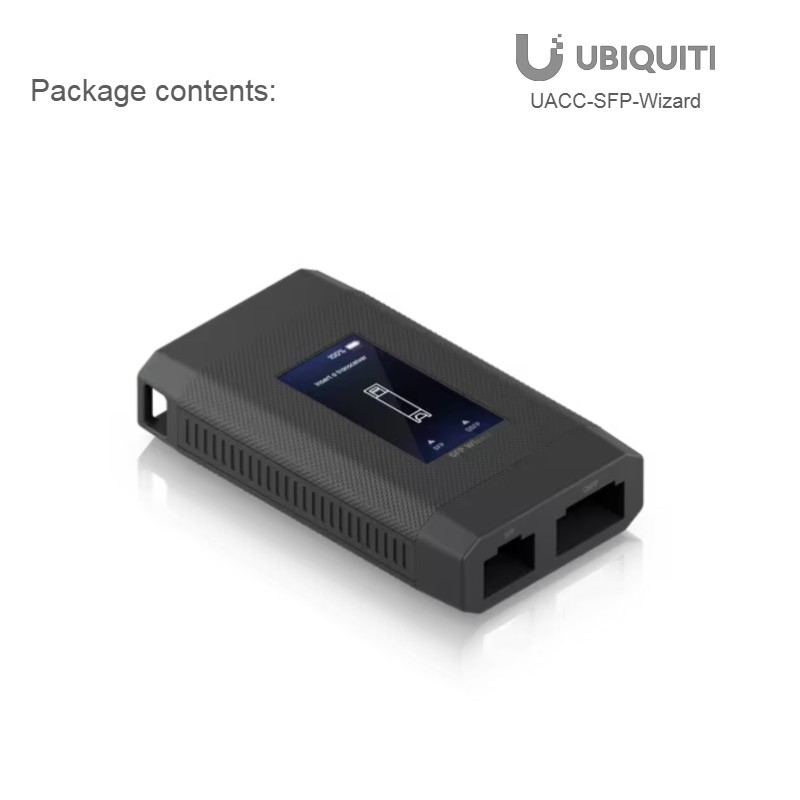

| Package Contents: |
|---|
| 1 x UACC-SFP-Wizard |
|
