Ubiquiti Wave-MLO6, Wave MLO6
[3676][Wave-MLO6]

Price: 613,72€

Order or Qty		Price
> 500€	5+	607,58€
> 1000€	10+	601,45€
> 2000€	20+	595,31€
> 5000€	40+	589,17€
> 10000€	100+	583,03€

Prices exclude VAT

No Stock

Order Qty:

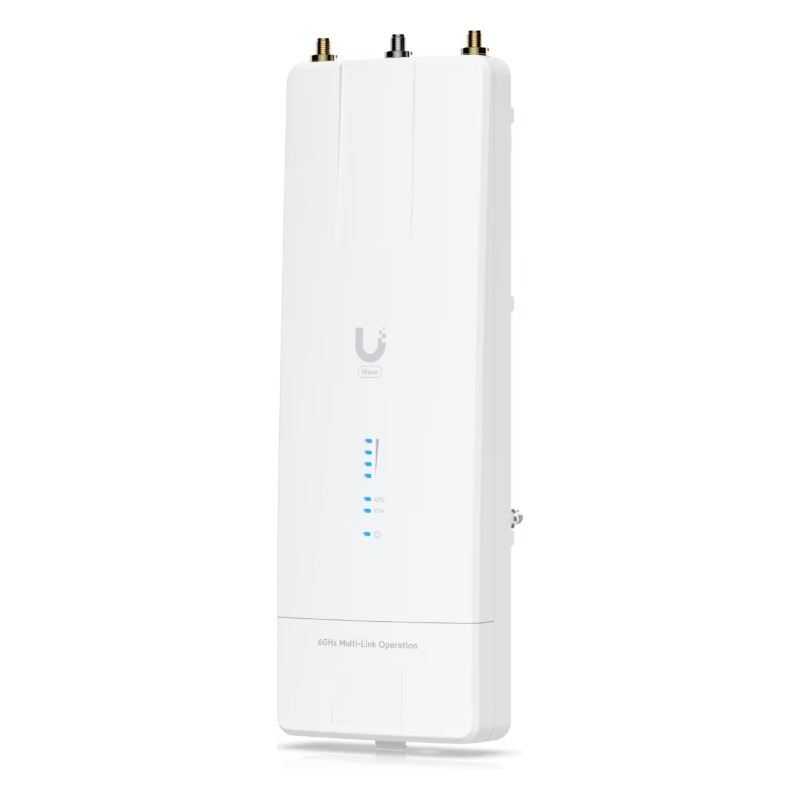

Wave-MLO - Wave MLO6

High-performance 5 + 6 GHz WiFi 7-based radios with Multi-Link Operation (MLO) technology for enhanced throughput and reliable connectivity.

This radio is engineered for extreme performance, utilizing the 6 GHz band and 4096QAM modulation to achieve throughput exceeding 8 Gbps.

Its inclusion of both a 10 GbE copper port and a 10G SFP+ port ensures that the physical network connection does not become a bottleneck for the wireless capacity.

Note. 6 GHz radio is disabled by default; permanent internet connection is required for 6 GHz link operation.

Product Links:
Datasheet	Installation Guide

Specifications:
Total Throughput	8+ Gbps
Max. Range	100 km
Operating Modes	PtP (Point-to-Point)
Encryption	WPA3-PSK (AES)
Radio & Frequency
Operating Frequency (5 GHz)	5180 – 5825 MHz
Operating Frequency (6 GHz)	5945 – 6875 MHz
Channel Bandwidth	Up to 320 MHz
MIMO	5 GHz: 2 x 2 6 GHz: 2 x 2
Max. TX Power	24 dBm per band
Modulation	Up to 4096QAM
Hardware & Networking
Networking Interface	1 x 10 GbE RJ45 port 1 x 10G SFP+ port
Processor	Quad-core IPQ5322 at 1.5 GHz
Memory	1 GB
GPS	Integrated (Waterproof connection)

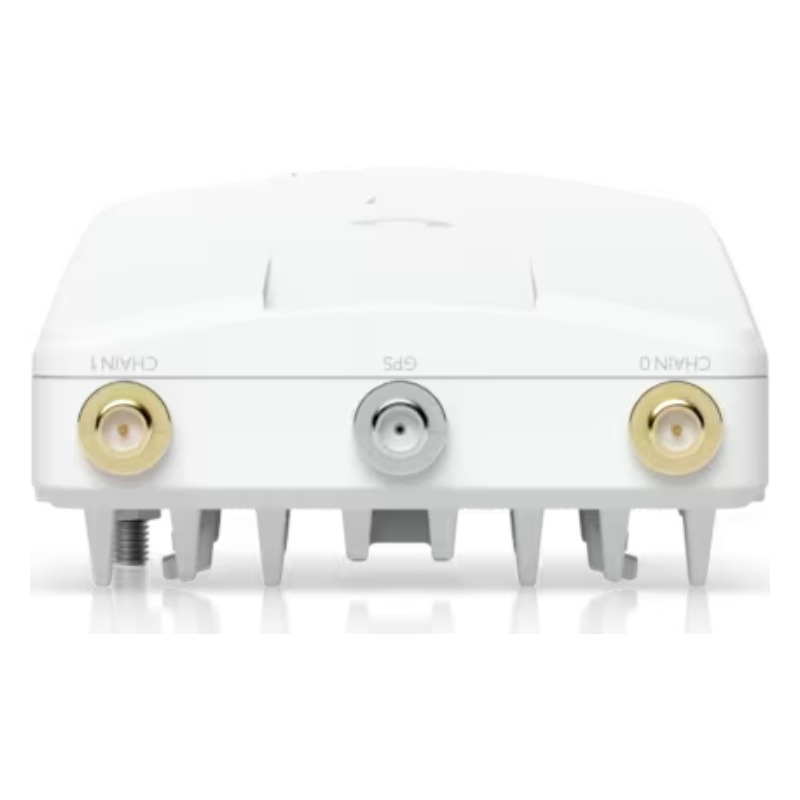

RF Connections	(2) RP-SMA (Waterproof)
Power & Electrical
Power Method	Passive PoE (2-pair or 4-pair)
Supported Voltage Range	44–54V DC or 22–27V DC
Max. Power Consumption	20W
Power Supply (Included)	54V DC, 0.56A, 10 GbE PoE adapter

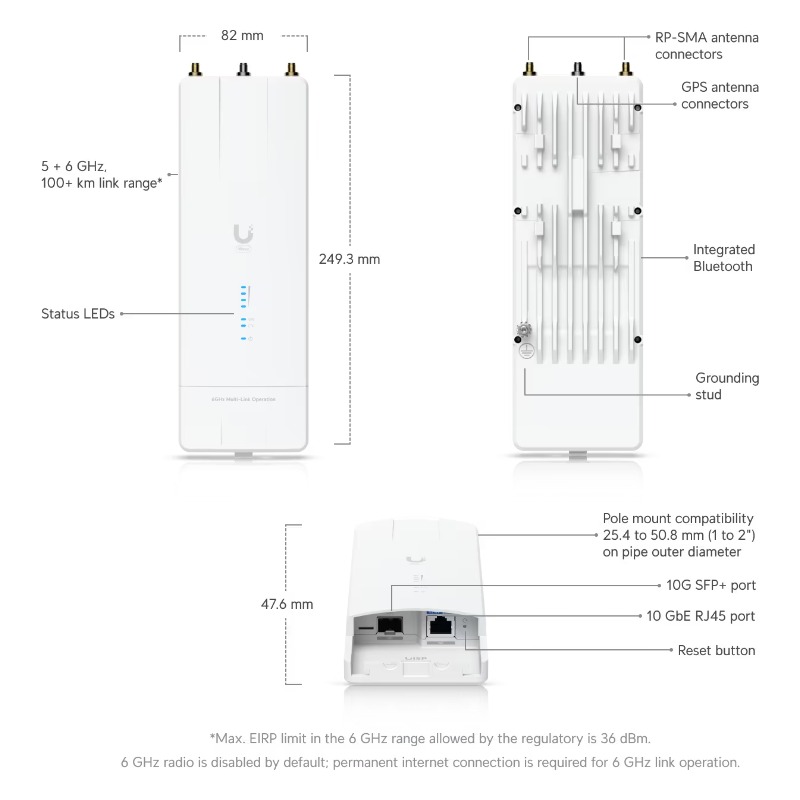

Mechanical & Environmental
Dimensions	249.3 x 82 x 47.6 mm
Weight (Without Mount)	575 g
Enclosure Material	Aluminum alloy, UV-resistant polycarbonate
Weatherproofing	IPX6
Mounting	Pole Mount (25.4—50.8 mm diameter)
Operating Temperature	-40 to 60° C
Compliance & Features
Smart Utilities	Antenna Alignment, Site Survey, Speed Test
Compliance	NDAA Compliant, FCC, IC

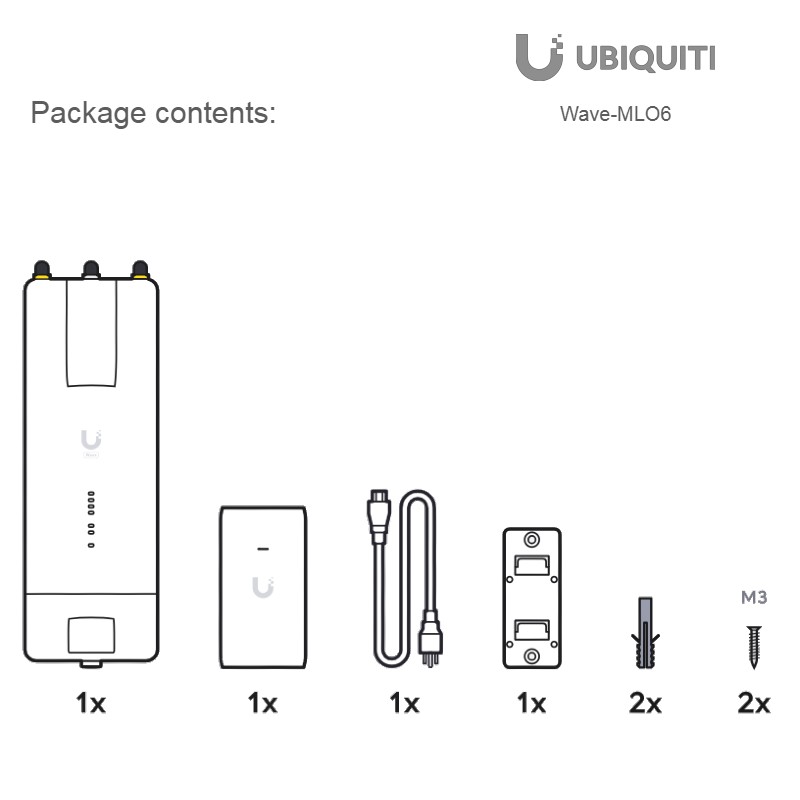

Package Contents:
1 x Wave-MLO6
1 x 10G PoE adapter 54V / 0.56A
1 x AC Cable
1 x ΡοΕ mount
1 x GPS antenna
1 x Antenna mount
2 x M3 screw kit
