UXG-Fiber - Gateway Fiber
Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.
 |

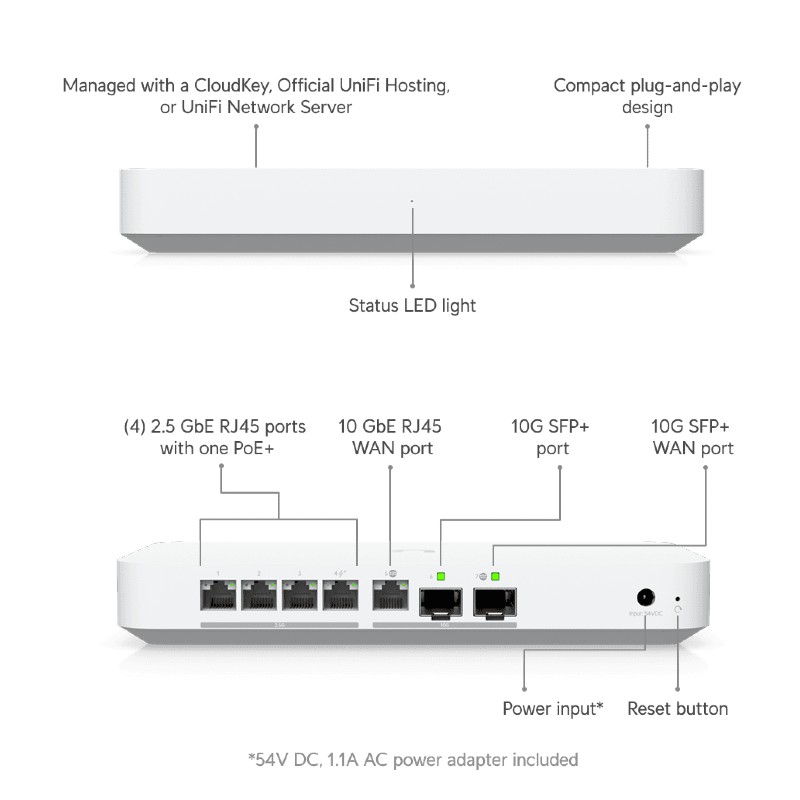

Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server |
 |
5 Gbps routing with IDS/IPS |
 |

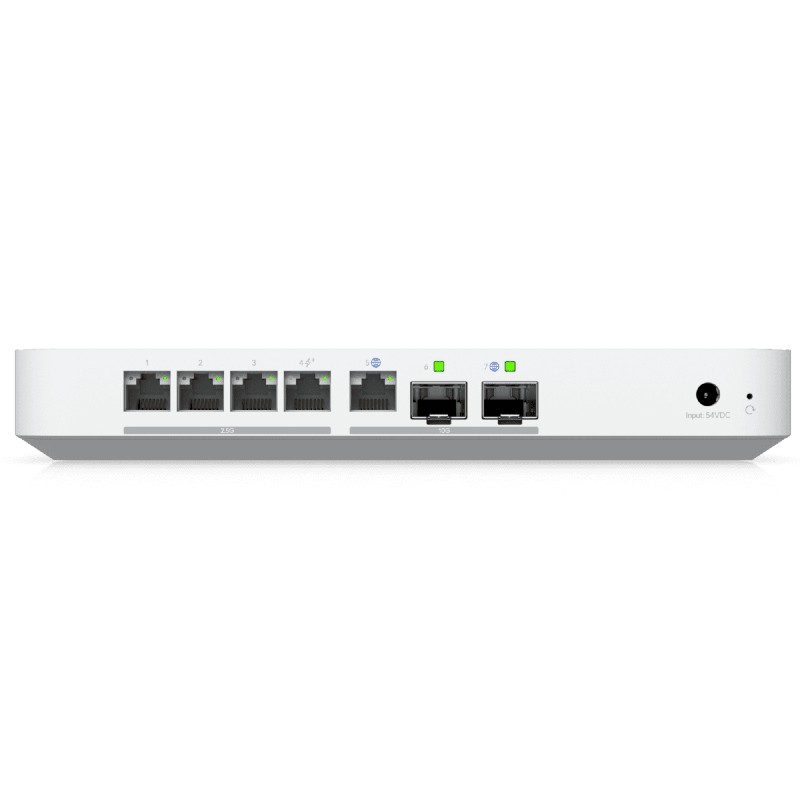

(1) 10G SFP+ and (1) 10 GbE RJ45 WAN port |
 |
(1) 10G SFP+ LAN port |
 |
Integrated 4-port switch with (1) PoE+ port |
|
Overview |
|

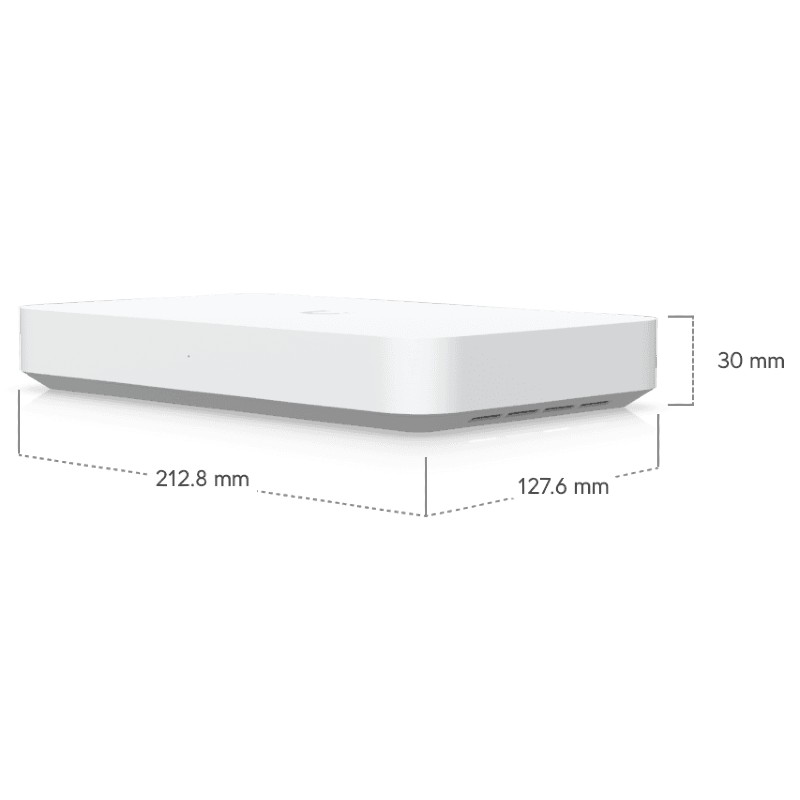

Dimensions |
212.8 x 127.6 x 30 mm |
|
Default WAN Ports |
(1) 10G SFP+ |
|
|
(1) 10 GbE RJ45 |
|
LAN Ports |
(1) 10G SFP+ |
|
|
(4) 2.5 GbE RJ45 |
|
IDS/IPS Throughput |
5 Gbps |
|
Form Factor |
Compact desktop |
|
Security |
|
Stateful Firewall |
Yes |
|
Application-Aware Layer 7 Firewall |
Yes |
|
DPI & Traffic Identification |
Yes |
|
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) |
Yes |
|
Content Filtering |
Yes |
|
Intrusion Prevention (IPS/IDS) |
Yes |
|
Ad Blocking |
Yes |
|
IDS/IPS Signatures |
55,000+ With CyberSecure |
|
VPN & SD-WAN |
|
License-Free SD-WAN |
Yes |
|
Site-to-Site VPN |
Site Magic, IPsec,OpenVPN |
|
VPN Server |
Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP |
|
VPN Client |
OpenVPN, WireGuard |
|
Networking |
|
Multi-WAN Load Balancing |
Yes |
|
Dynamic Routing |
OSPF |
|
Advanced QoS |
Yes |
|
Multicast DNS (mDNS) |
Yes |
|
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) |
Yes |
|
Integrated RADIUS Server |
Yes |
|
RADIUS over TLS (RadSec) |
Yes |
|
Additional Internet Failover with UniFi LTE Backup |
Yes |
|
Internet Quality and Outage Reporting |
Yes |
|
MAC Address Table Size |
4,000 |
|
Hardware |
|
PoE Budget |
30W |
|
Max. PoE Wattage per Port by PSE |
PoE+ |
|
Voltage Range PoE Mode |
50—57V |
|
Max. Power Consumption |
25W (Excluding PoE output) |
|
Power Method |
DC jack (54V DC/1.1A) |
|
Power Supply |
54V DC/1.1A (Adapter included) |
|
Supported Voltage Range |
100—240V AC |
|
Processor |
Quad-core ARM® Cortex®-A73 at 2.2 GHz |
|
System Memory |
2 GB |
|
Weight |
605 g |
|
Enclosure Material |
Polycarbonate |
|
Management |
|
Ethernet |
Yes |
|
Bluetooth |
Yes |
|
ESD/EMP Protection |
Air: ± 8kV, contact: ± 4kV |
|
Ambient Operating Temperature |
0°C to 40°C |
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
Certifications |
CE, FCC, IC |
|
Button |
(1) Factory-reset |

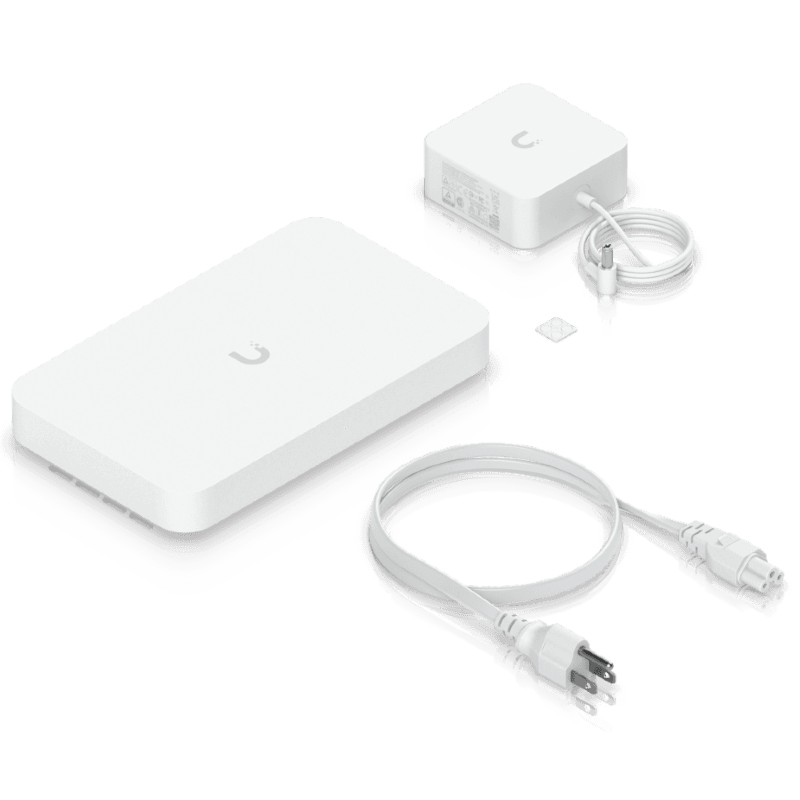

| Package Contents: |
|---|
| 1 x UXG-Fiber
|
| 1 x Power Supply 54V DC/1.1A
|
| 1 x AC Cable EU |
|
