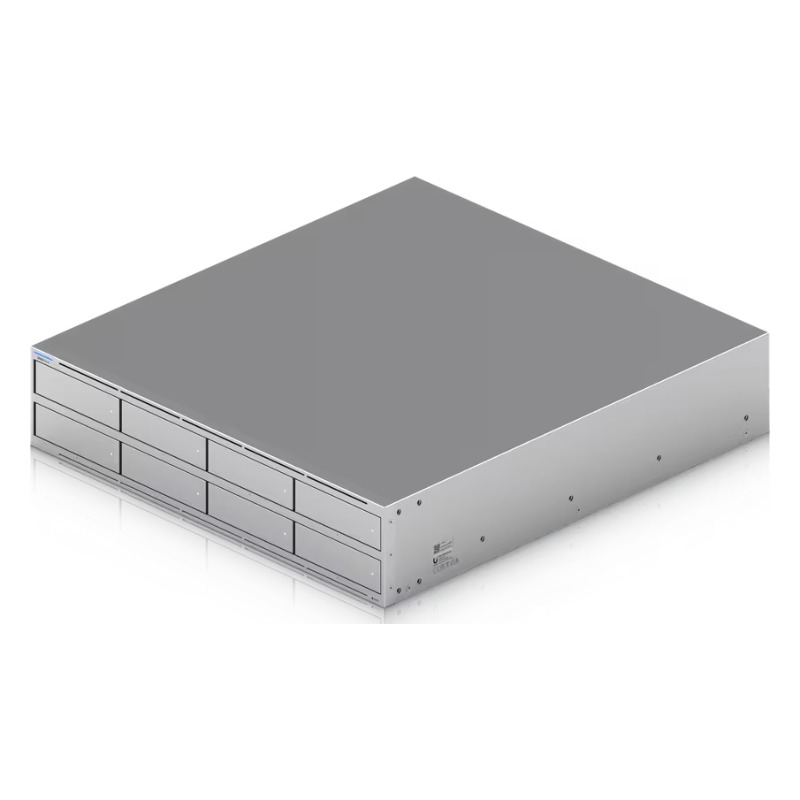

UNAS-Pro-8 - UNAS Pro 8
2U rack-mount NAS with (8) 2.5/3.5" HDD bays and (2) M.2 NVMe SSD cache slots, delivering faster access, lower latency, and high-availability 10 Gbps networking for large-scale file storage and sharing.
|
Overview |
|

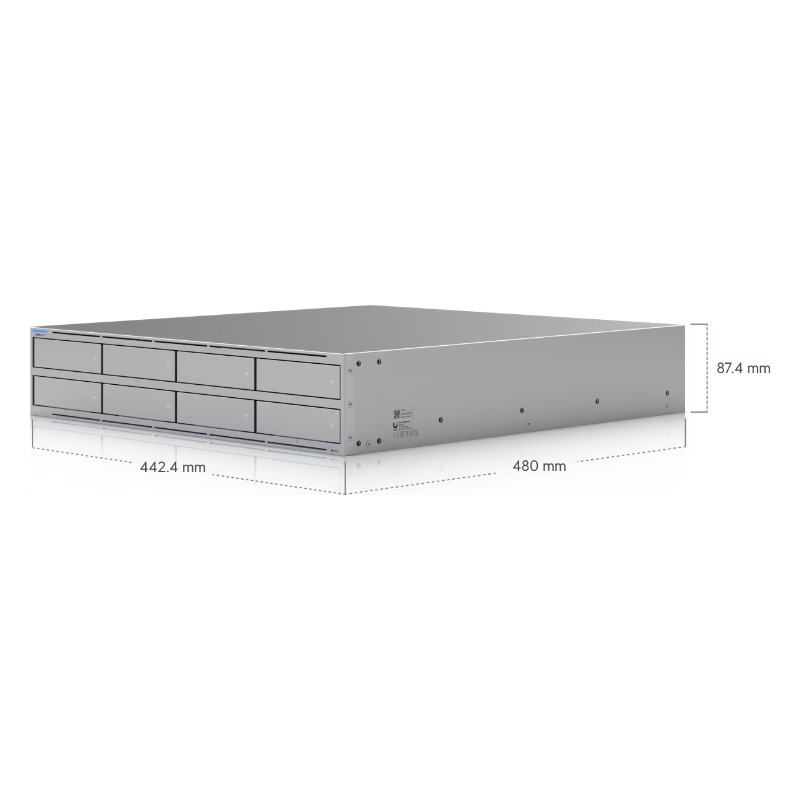

Dimensions |
442.4 x 480 x 87.4 mm |
|
Storage Capacity |
(8) 3.5" drive bays
(2) M.2 NVMe bays |
|

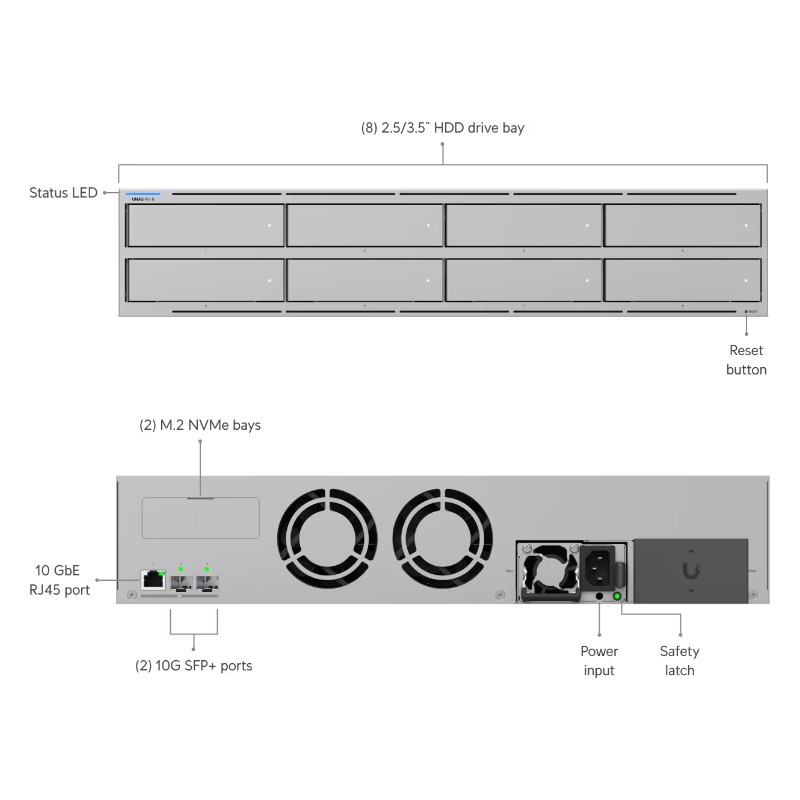

Networking Interface |
(2) 10G SFP+ (10G Only)
(1) 10 GbE RJ45 (10G/5G/2.5G/1G/100M) |
|
Power Redundancy |
✓ |
|
Form Factor |
Rack mount (2U) |
|
Hardware |
|
Hard Drive Capacity |
(8) 2.5/3.5" HDD / SSD support
(2) M.2 NVMe SSD support |
|
Max. Power Budget for Drives |
225W |
|
Max. Power Consumption |
250W |
|
Power Method |
(2) AC input, Hot-swappable power modules |
|
Power Supply |
(2) Hot-swappable AC/DC 550W power modules |
|
Processor |
Quad-Core ARM® Cortex®-A57 at 2.0 GHz |
|
Memory |
16 GB |
|
Management |
Ethernet |
|
RF Interface |
Bluetooth 4.1 |
|
Weight |
11.5 kg |
|
Enclosure Material |
SGCC steel |
|
Mount Material |
SGCC steel |
|
LEDs |
Ethernet✓
SFP+✓
HDD✓
System✓ |
|
Ambient Operating Temperature |
-5 to 40° C |
|
Ambient Operating Humidity |
5 to 95% noncondensing |
|
NDAA Compliant |
✓ |
|
Certifications |
FCC, CE, IC |
