Ubiquiti » airMAX ac Gen2 » LBE-5AC-Gen2

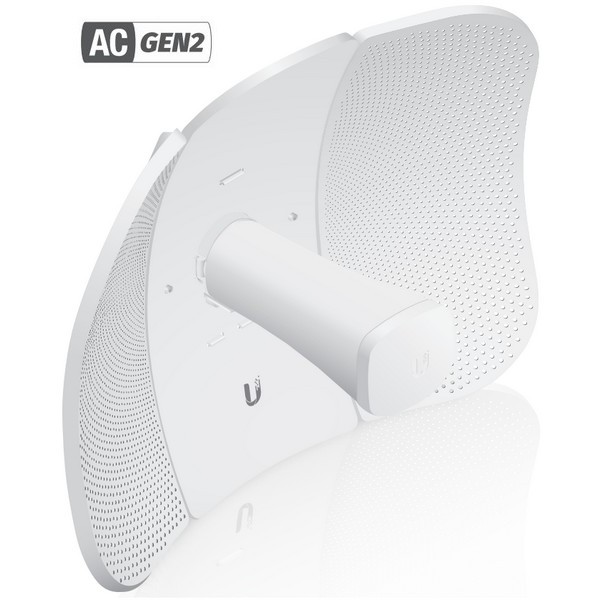

UBNT LBE-5AC-Gen2, 5 GHz LiteBeam ac, 23 dBi
[LBE-5AC-Gen2]
Price: 71,90€
 Order or Qty  Price
 > 500€  5+   71,18€
 > 1000€  10+   70,46€
 > 2000€  20+   69,74€
 > 5000€  40+   69,02€
 > 10000€  100+   68,31€

UBNT LBE-5AC-Gen2, 5 GHz LiteBeam ac, 23 dBi

In Stock: 13
Order Qty:

2x2 MIMO airMAX ac CPE : The LiteBeam AC is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing.

Management Wi-Fi Radio : The LiteBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

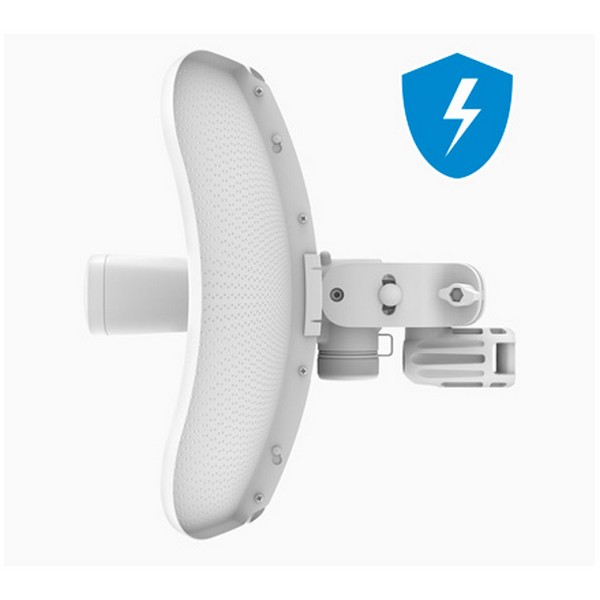

Improved Mounting and Surge Protection : Featuring enhanced protection against ESD events, the LiteBeam AC offers a more robust mount with separate azimuth and elevation adjustments.

Now with airOS 8 and airView : airOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

High-Gain, Directional, 2x2 MIMO Antenna : The LiteBeam AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

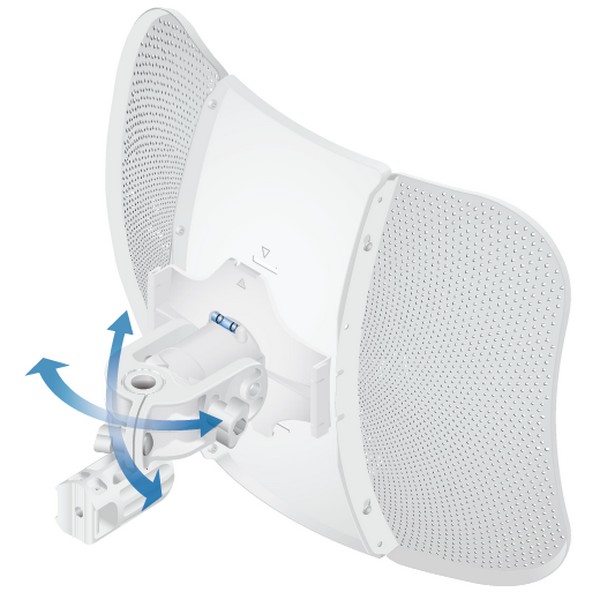

Breakthrough Industrial Design : Featuring the freedom of three-axis alignment, the LiteBeam AC fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.

Compact in Size, Light in Weight : A lightweight form factor contained within ultra-compact packaging, the LiteBeam AC is ideal for shipping and logistics.

Connectors and Interfaces
LAN speed:  (1) 10/100/1000Mbps
Gigabit LAN:  Yes
Hardware
RAM memory size [MB]:  64
CPU:  MIPS 74Kc
CPU frequency [MHz]:  650
Physical characteristics
Purpose:  Outdoor
Buttons:  Reset
Operating temperature [°C]:  -40 up to 70
Weight [g]:  980
Depth [mm]:  272
Width [mm]:  358
Height [mm]:  272
Power
Max. power consumption [W]:  7
Power over Ethernet:  24V DC
PoE type:  Input
Software
IPv6 support:  Transparent (bridge mode)
Operating mode:  Client, Client Router (wisp)
Default IP address:  192.168.1.20
Default login and password:  ubnt / ubnt
Features
Enclosure Characteristics Reflector (SGCC 0.6T) / Plastic: PC
Mounting Pole-Mounting Kit (Included)
Wind Loading 275 N @ 200 km/h (61.8 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection ± 24 kV Contact / Air
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC


Additional Images:



Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
