WR3000P - AX3000 2.5G Mesh Wi-Fi 6 Router 1.0
A PoE-powered WiFi 6 router with 2.5 Gbps internet connectivity, ideal for connecting a large number of devices and reducing latency.
It features a USB port, enabling fire sharing or third-party device powering.
Unlike standard models, this version features a WAN port with PoE power support via 802.3af/at or passive 44–57 V DC PoE.
 |
1.3 GHz Dual-Core CPU |
 |
4-Stream Dual-Band Wi-Fi 6 |
 |
2402 Mbps + 574 Mbps Wi-Fi |
 |
1x2.5GbE PoE + 4x1GbE Ethernet Ports |
 |
200 Connected Devices |
 |
Covers 130 m² |
 |
Cudy Mesh, VPN Server and Client |
 |
Cudy App, Cloud Control |
|
Specifications: |
|
Model Version |
WR3000P 1.0 |
|
CPU Details |
1.3 GHz Dual-Core, ARM Cortex-A53 |
|
Flash/ROM |
128 MB (1 Gbit) NAND |
|
DDR/RAM |
256 MB (2 Gbit) DDR3 |
|
Wireless Capabilities |
|
5 GHz Wi-Fi Speed |
2402 Mbps |
|
2.4 GHz Wi-Fi Speed |
574 Mbps |
|
5 GHz Wi-Fi Streams |
2T2R (2×2 MIMO) with an Extra Stream |
|
2.4 GHz Wi-Fi Streams |
2T2R (2×2 MIMO) |
|
Wi-Fi Antennas |
4× Fixed |
|
FEM or PA/LNA |
5 GHz: 3× Internal, 2.4 GHz: 2× Internal |
|
Beamforming |
True |
|
Range Performance |
|
Max Range Performance |
Max: 200 m (in open-space) |
|
Wall Performance |
Two wooden walls (< 10 cm) or One concrete wall (< 20 cm) or two concrete walls (< 10 cm) |
|
Interfaces |
|
Gigabit RJ45 Ports |
1x2.5GbE PoE + 4x1GbE Ethernet Ports |
|
Physical Buttons |
WPS Button, Reset Button |
|
LEDs |
Power, Internet, WAN, LAN, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi |
|
Power |
|
Power Methods |
DC |
|
DC Input / Adapter Output |
12V 1.5A |
|
Power Adapter Input |
100 ~ 240 V, 50/60 Hz AC |
|
Max Power Consumption |
11.5w |
|
Idle Power Consumption |
4.2w |
|
Mechanical & Environment |
|
Installation |
Desktop, Wall-mount |
|
Device Dimension |
173×123.8×33 mm |
|
Product Weight |
360.6 g |
|
Operating Temperature |
0 ℃ ~ 40 ℃ |
|
Humidity |
10% ~ 90% non-condensing |
|
Certifications |
FCC, CE |

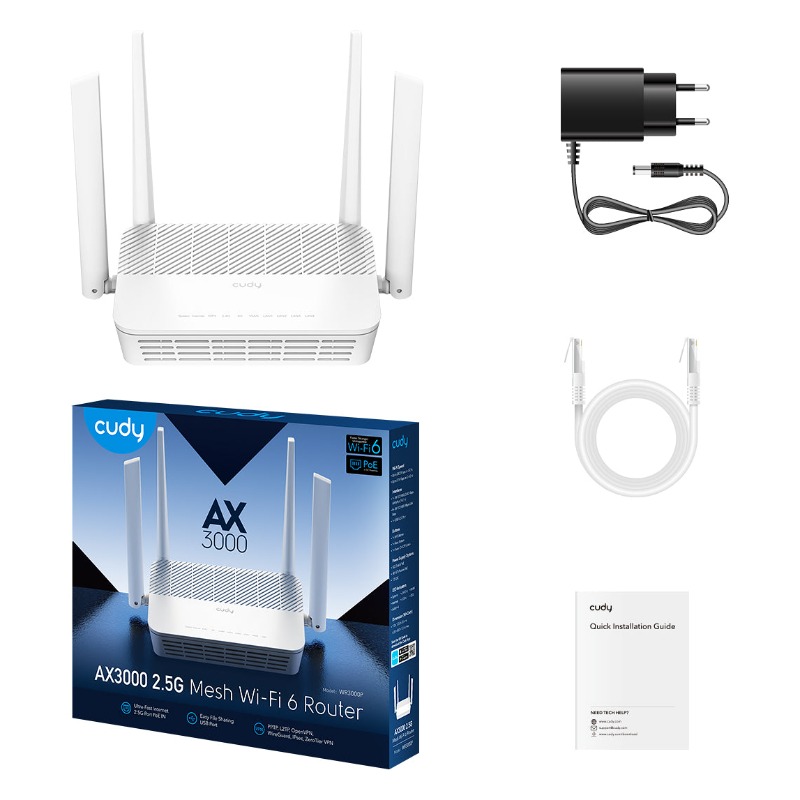

| Package Contents: |
|---|
| 1 x WR3000P v1.0
|
| 1 x 12v 1.0A Power Supply
|
| 1 x Ethernet Cable
|
| 1 x User Guide |
|
