Ubiquiti AF60-HD, airFiber 60 HD
Price: 356,07€
 Order or Qty  Price
 > 1000€  2+   348,94€
 > 2000€  4+   345,38€
 > 5000€  6+   341,82€
 > 10000€  8+   338,26€
Prices exclude VAT

Ubiquiti AF60-HD, airFiber 60 HD

In Stock: 2

Available quantity within
3-5 working days: 16
Order Qty:

airFiber 60 HD - Multi-gigabit, 60 GHz bridge with SFP+ support and a 2 km link range.

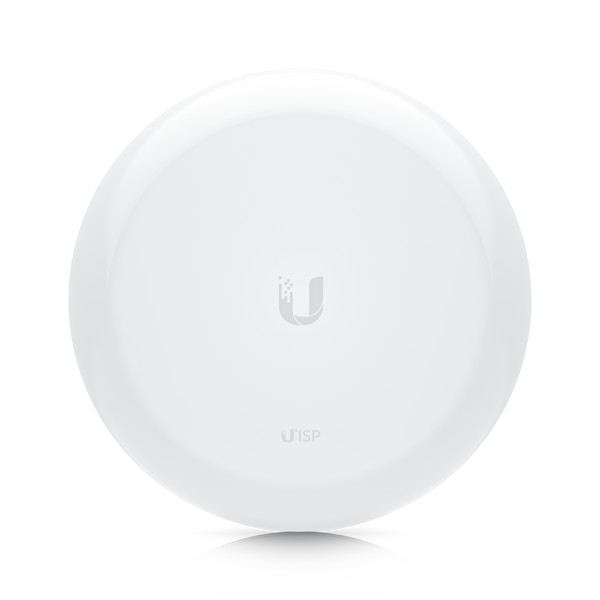

The airFiber 60 HD (AF60 HD) is a 60 GHz radio designed to create superior mid-range, point-to-point (PtP) links up to 2 km.

The AF60 HD delivers low-interference, low-latency throughput within the 60 GHz spectrum.

Compact and highly durable, the AF60 HD also features integrated GPS and a Bluetooth management radio to simplify setup, configuration, and monitoring.

This bridge is ideal for ISPs looking to maximize signal linking with cost-effective equipment.

Dimensions Ø189 x 89 mm
Weight Without mount: 1.8 kg
With mount: 2.95 kg
Enclosure materials Aluminum alloy, UV stabilized plastic
Mount material Stainless steel (SUS304)

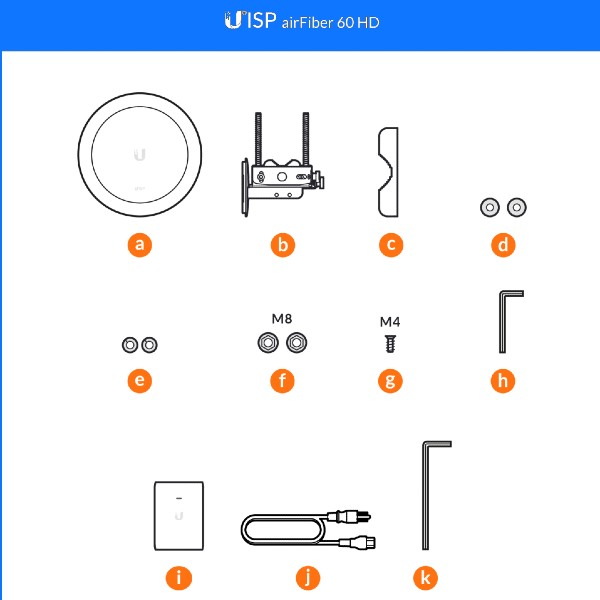

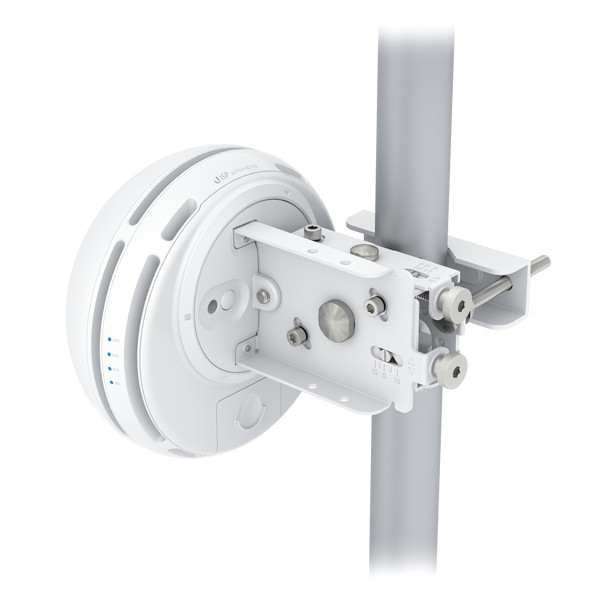

Mount 60G precision alignment pole mount (included)
Wind loading 64 N at 200 km/h
Weatherproofing IPX6
Processor Quad-Core ARM® Cortex® A72 at 1.6 GHz
Memory 2 GB DDR4

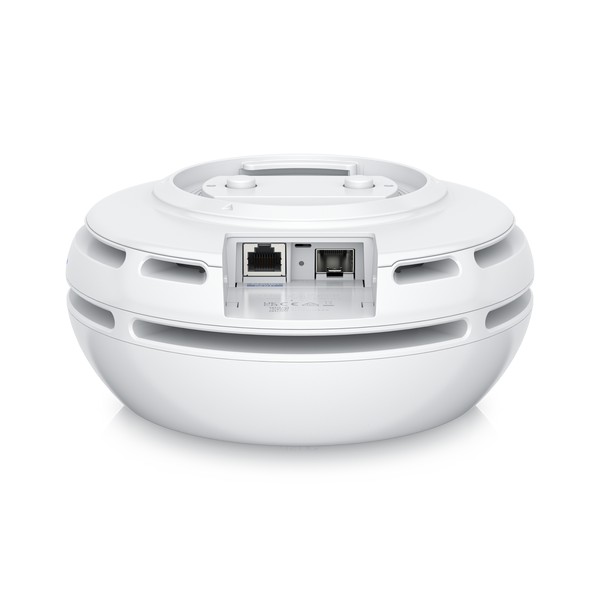

Networking interfaces (1) GbE RJ45 port
(1) 1/10G SFP+ port
Button Factory reset
RF connections Internal
Max. power consumption 29.31W
Power method Passive PoE
     4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
     2-Pairs (4, 5+; 7, 8-)
Power supply 48VDC, 0.65A gigabit PoE adapter (included)
Supported voltage range 48VDC ± 10%
Operating temperature -40°C to 55°C
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE, terragraph

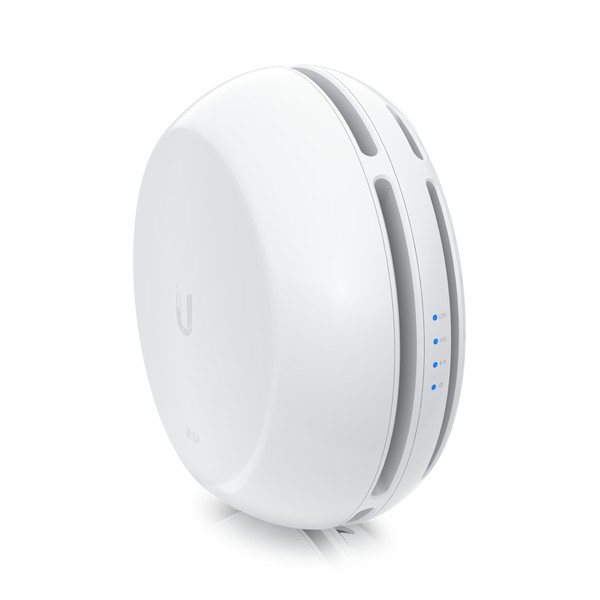

Power Flashing white: bootup in progress
White: not connected to UISP console
Blue: connected to UISP console
Ethernet Flashing blue: ethernet activity
GPS Blue: receiving at least (4) GPS satellite signals
60G Blue: active connection
Maximum throughput 60 GHz: 3.8 Gbps/6 Gbps (with channel bonding enabled)
Maximum range 2 km
Encryption WPA2-PSK (AES)
Uplink/Downlink ratio 50/50
OS airFiber®
Modes PtP only
Services UISP, ping watchdog, web server, SSH server,
NTP client, system log, device discovery
Utilities Beamform info, discovery utility, ping, trace route, speed test
Network Bridge mode
Wireless settings GPS sync used to populate UI/UX elements.
Management interface Bluetooth management for easy setup over UISP app WEB UI
Minimum software requirements Any modern WEB browser/iOS or Android based smartphone
Operating frequency* 57 to 66 GHz * Depends on regulatory region.
Channel bandwidth 2160 MHz/4320 MHz (with channel bonding enabled)
Operating channels 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz
Beamwidth HPOL: NaN (the antenna is only vertically polarized) VPOL: 3° Elevation: 3°
Electrical downtilt
