PoE » Desktop Adapter » HX-PA4805D
HX-PA4805D, 48V/0.5A 24W 10/100M PoE Adapter Desktop - 50cm cable
[3573][HX-PA4805D]
Price: 4,96€
 Order or Qty  Price
 > 500€  5+   4,86€
 > 1000€  10+   4,76€
 > 2000€  20+   4,66€
 > 5000€  40+   4,56€
 > 10000€  100+   4,46€
Prices exclude VAT

HX-PA4805D, 48V/0.5A 24W 10/100M PoE Adapter Desktop - 50cm cable
In Stock: 20
Order Qty:
UPC:728615668995

HX-PA4805D - 48V/0.5A 24W 10/100M PoE Adapter Desktop - 50cm cable

Output: 48V DC / 500mA
Input: 100 - 240VAC, 47 - 63 Hz, CE / UL / GS.
Origin: China

Powering Mode (+)Pins (-)Pins
2-Pair B 4,5 7,8

Product Links:
Datasheet Datasheet

Specifications:
Part # HX-PA4805D
Input Condition AC100~240V 50/60Hz  0.6A max
Input Rated Voltage 100Vac~200Vac
Input Voltage Rate 90Vac~264Vac
Input Rated Frequency 50/60Hz
Input Frequency Range 47Hz~63Hz
Input Current 0.6A Max
Input No Load Power Consumption 0.5 Watt Max @ 115Vac/230Vac
Efficiency 80% Min
Rated Output Voltage & Current 48v/0.5A
Output Line Regulation +-1%
Output Load Regulation +-5%
Output Over Shoot 10% Max
Output Ripple and Noise 1% Max
Output Rising Time 20ms Max @ 115Vac
Output Hold-Up Time 8ms Min @ 230Vac
Protection OCP OVP SCP OPP
Dielectric Withstand Voltage 3KV 5mA 60s
Leakage Current 0.25mA @ 230Vac

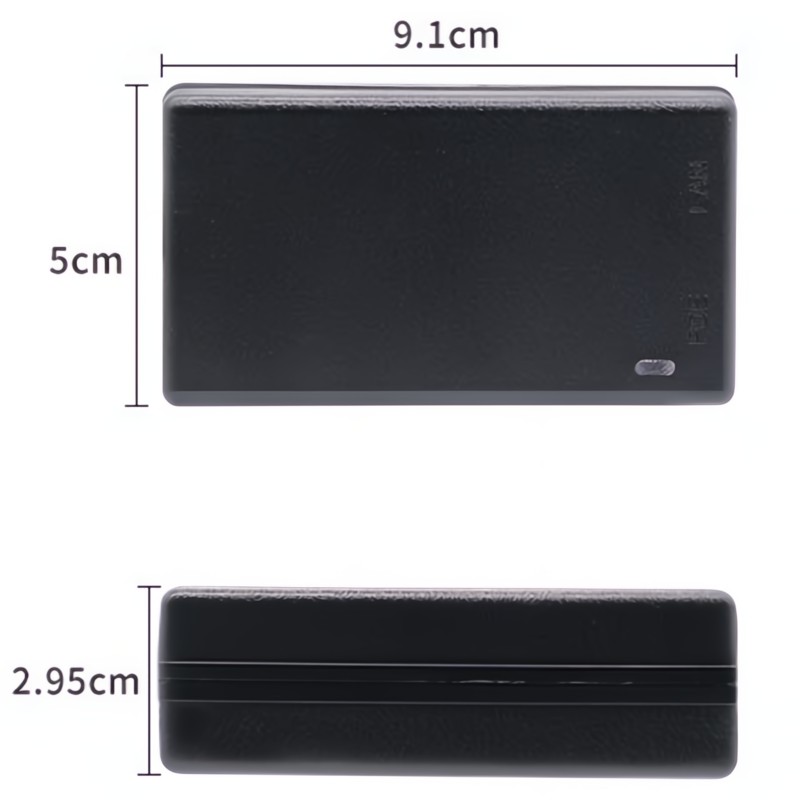

Dimension
91x50x30mm
Operating Temperature Range 0oC ~ +40oC
Storage Temperature Range -20oC ~ +85oC

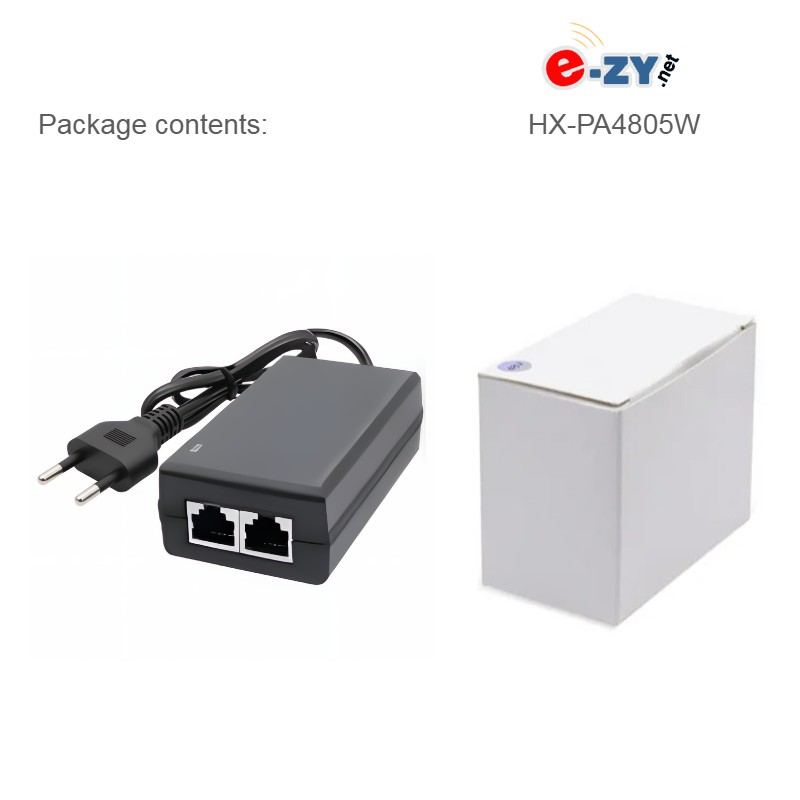

Package Contents:
1 x HX-PA4805D

Additional Images:
Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 12 month(s)
