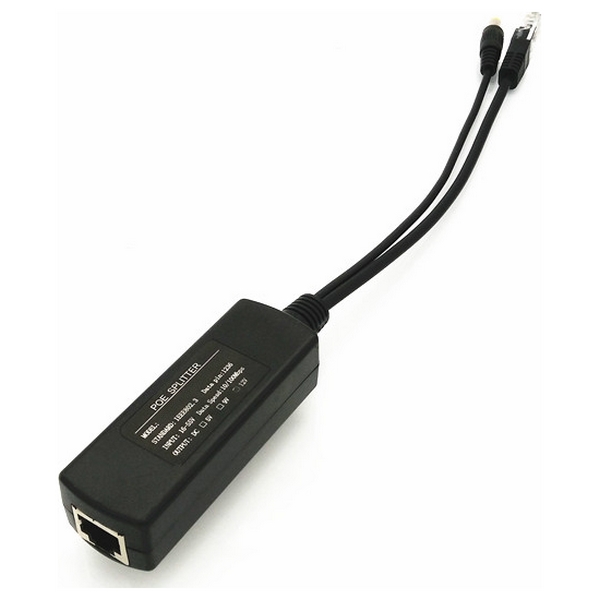

EZ-ML-102E is a Passive PoE splitter to power non-PoE enabled devices.

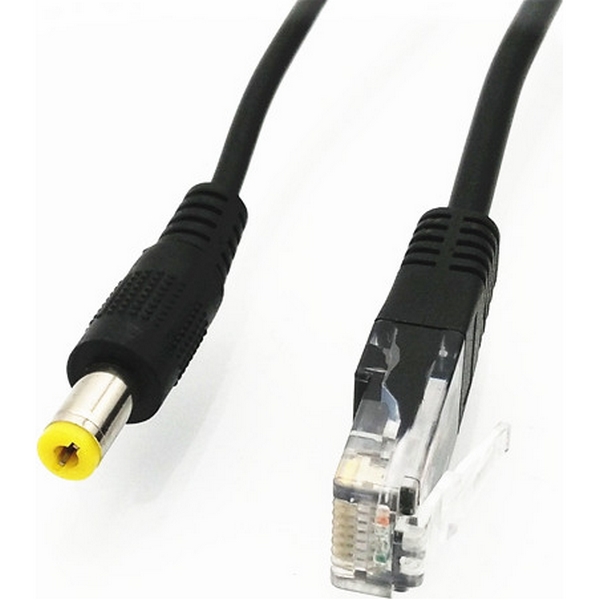

It accepts a wide range of DC input from 15v to 48v via Passive PoE (not 802.3af/at PoE) to output fixed 12v/2A via the DC Jack (5.5 x 2.1mm) and 10/100 RJ45 Jack.
This way a non PoE enabled device can be powered remotely via any PoE Injector or PoE Switch
|
Input / Output Specifications : |
|
DC Input Voltage Max |
48V DC |
|
DC Input Voltage Min |
15V DC |
|
DC Output Voltage |
12V DC |
|
Max Output Current |
2A Max. |
|
DC Jack |
5.5mm x 2.1mm |
|
General Specifications: |
|
Operating Temperature |
-10oC ~ +60oC |
|
Storage Temperature |
-20oC ~ +70oC |
|
Humidity |
Up to 90% |
|
Weight |
25gr |
|
Dimensions |
175mm * 28mm * 21mm |
|
|
Input Pins
RJ45 Plug
|
Output Pins
RJ45 Jack |
|
1 |
Tx(+) |
Tx(+) |
1 |
|
2 |
Tx (-) |
Tx (-) |
2 |
|
3 |
Rx (+) |
Rx (+) |
3 |
|
4 |
V+ |
N.C. |
4 |
|
5 |
V+ |
N.C. |
5 |
|
6 |
Rx (-) |
Rx (-) |
6 |
|
7 |
GND |
N.C. |
7 |
|
8 |
GND |
N.C. |
8 |
|
