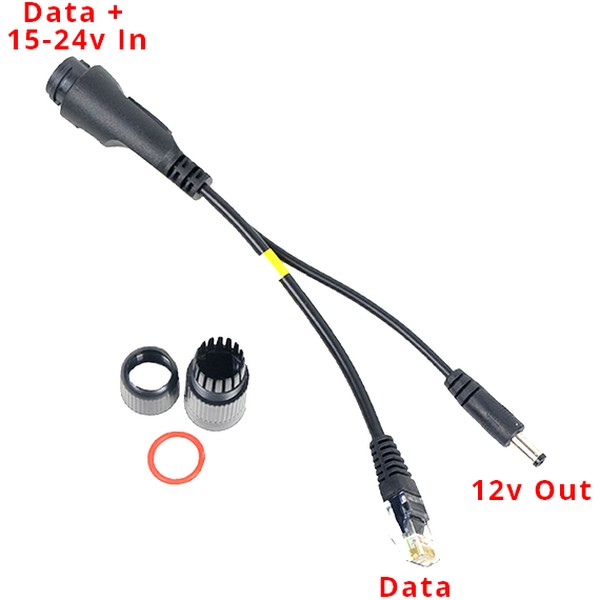

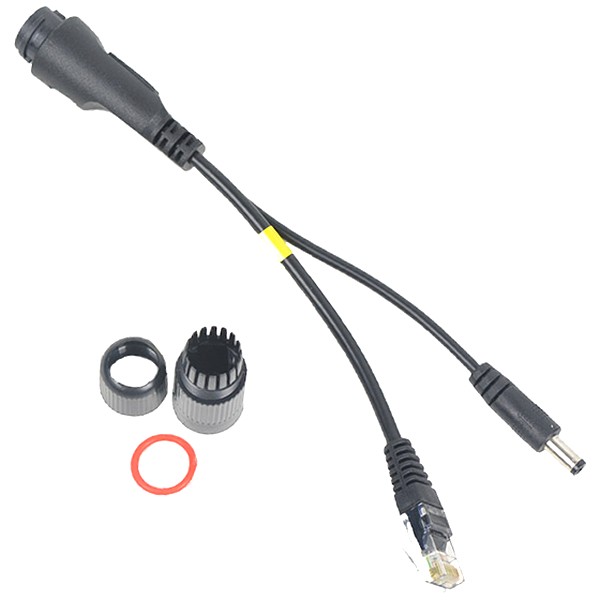

EZ-POE-24T12 is a Waterproof Passive PoE splitter to power non-PoE enabled devices.
It accepts a wide range of DC input from 15v to 24v via Passive PoE (not 802.3af/at PoE) to output fixed 12v/1.5A via the DC Jack (5.5 x 2.1mm) and 10/100 RJ45 Jack.
This way a non PoE enabled device can be powered remotely via any PoE Injector or PoE Switch
|
Specifications: |
|
DC Input Voltage Max |
24V DC |
|
DC Input Voltage Min |
15V DC |
|
DC Output Voltage |
12V DC |
|
Max Output Current |
1.5A Max. |
|

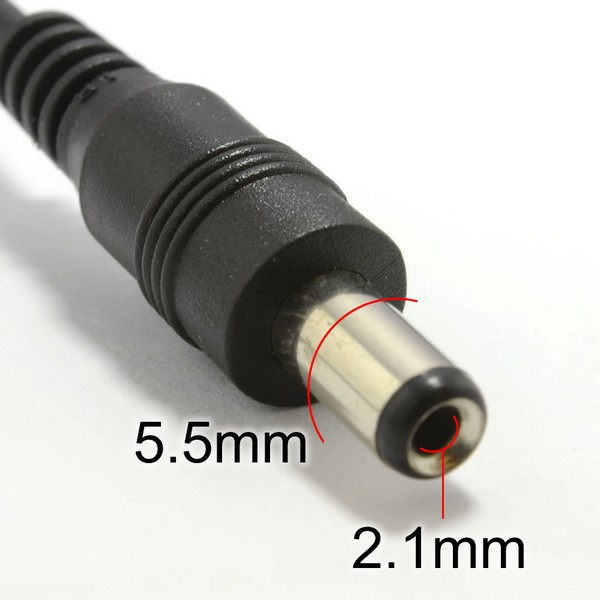

DC Jack |
5.5mm x 2.1mm |
|
Operating Temperature |
-10oC ~ +60oC |
|
Storage Temperature |
-20oC ~ +70oC |
|
Humidity |
Up to 90% |
|
Weight |
42gr |
|
Dimentions |
210mm * D25mm |
