FSPOE102A-P POE Extender switch is used to extend Ethernet and POE power transmission distance through Cat5e/Cat6 cable.

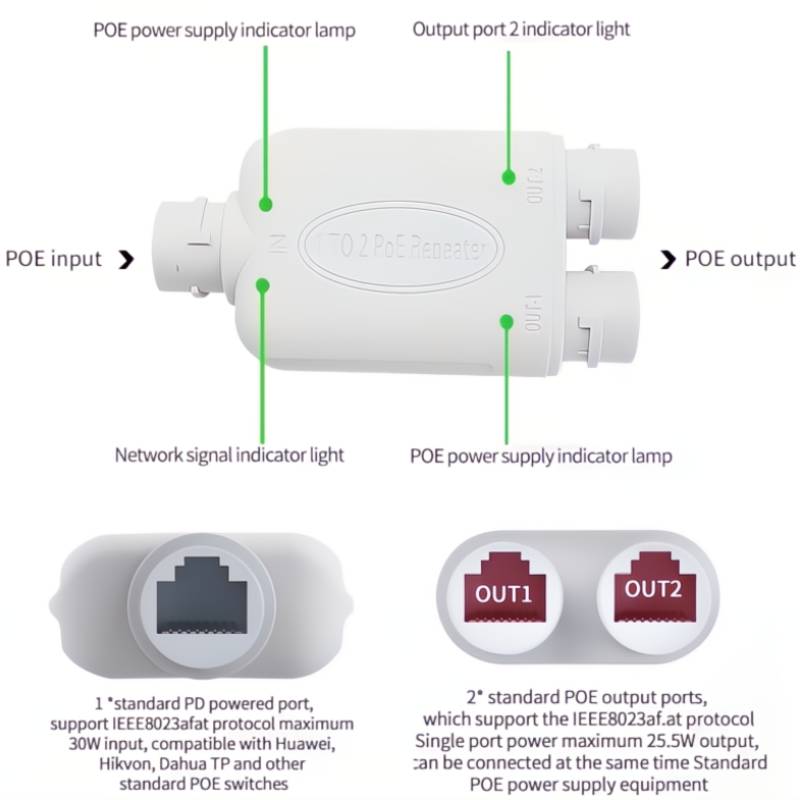

Features unique design, 1 port PoE In 30W max and 2 ports PoE-Out (25W total / per port).
FSPOE102A-P does not only extend Ethernet and power transmission, but also simplifies cabling by running one cable to power 2 POE devices, such as WiFi APs, IP camera, VoIP phone, door bell camera, etc.
|
Powering |
Mode |
+ Pins |
- Pins |
|
2-Pair |
B |
4,5 |
7,8 |
|
Specifications: |
|
Part No |
FSPOE102A-P |
|
Ports |
3 x 10/100Mbs |
|
Power: |
|
PoE type |
PoE in/out (48v) |
|
PoE-In |
802.3af/at 30W max |
|
PoE-Out |
802.3af 25W total |
|
PoE In |
PoE In (UpLink PoE) |
|
PoE Out |
PoE1-2 (PoE Out) |
|
PoE budget |
30W In / 25W Out |
|
Power Consumption |
<3W |
|
Physical: |
|
Chassis |
ABS + PC |
|
Fan |
No |
|
Operating Temperature |
-10°C to 60°C |
|
Operating Humidity |
0-95% Non-condensing |
|
Dimensions |
80 x 41 x 19 mm (body)
140 x 41 x 20 mm
|
|
Color |
White |
|
Weight |
52gr (body)
71gr |
| Package Contents: |
|---|
| 1 x FSPOE102A-P
|
| 3 x Outdoor Cable Gland KIT |
|
