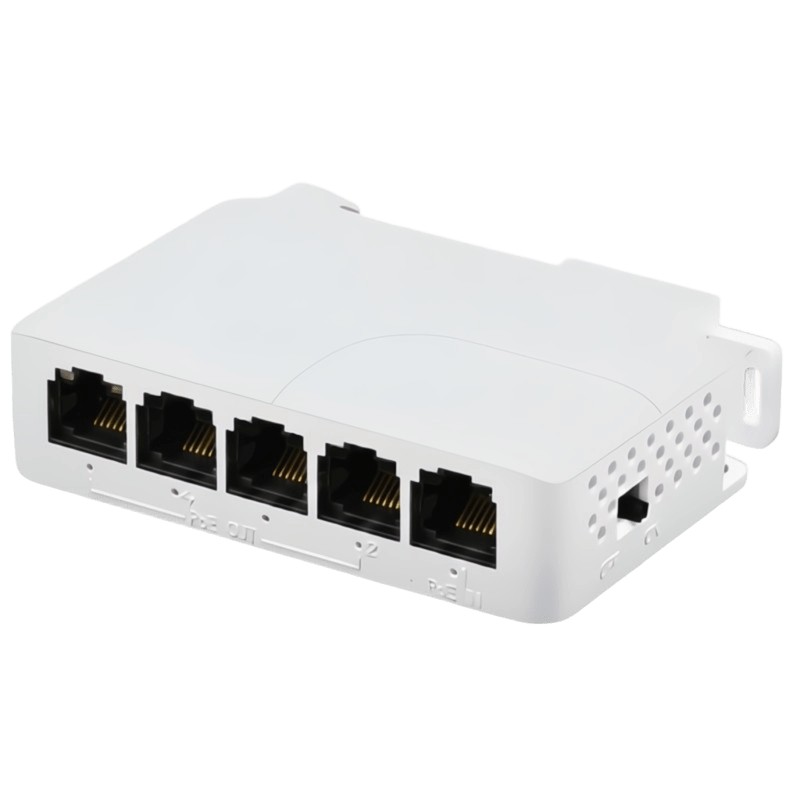

SST-BT14F POE Extender switch is used to extend Ethernet and POE power transmission distance through Cat5E/Cat6 cable.
Features unique design, 1 port PoE In and 3 ports PoE-Out, SST-BT14F can not only extend Ethernet and power transmission, but also simplify cabling by running one cable to power 3 POE devices, such as WiFi APs, IP camera, VoIP phone, door bell camera, etc.
When the DIP switch is at the ON position VLAN support is enabled, speed drops to 10M and the distance is extended to 250 meters
|
Port# |
PoE |
Power |
Powering |
Mode |
+ Pins |
- Pins |
|
1 |
In |
90W |
4-Pair |
A+B |
1,2,4,5 |
3,6,7,8 |
|
2 |
Out |
60W |
4-Pair |
A+B |
1,2,4,5 |
3,6,7,8 |
|
3-5 |
Out |
30W/port |
2-Pair |
A |
1,2 |
3,6 |
|
Specifications: |
|
Part No |
SST-BT14F |
|
Ports |
5 x 10/100 Mbps |
|
Power: |
|
PoE type |
PoE in/out |
|
PoE-In |
90W max port 1 |
|
PoE-Out |
60w max port 2 |
|
PoE-Out |
30w max/port 3-5 |
|
PoE budget |
90W |
|
Physical: |
|
Chassis |
ABS + PC |
|
Fan |
No |
|
Operating temp |
-10°C to 45°C |
|

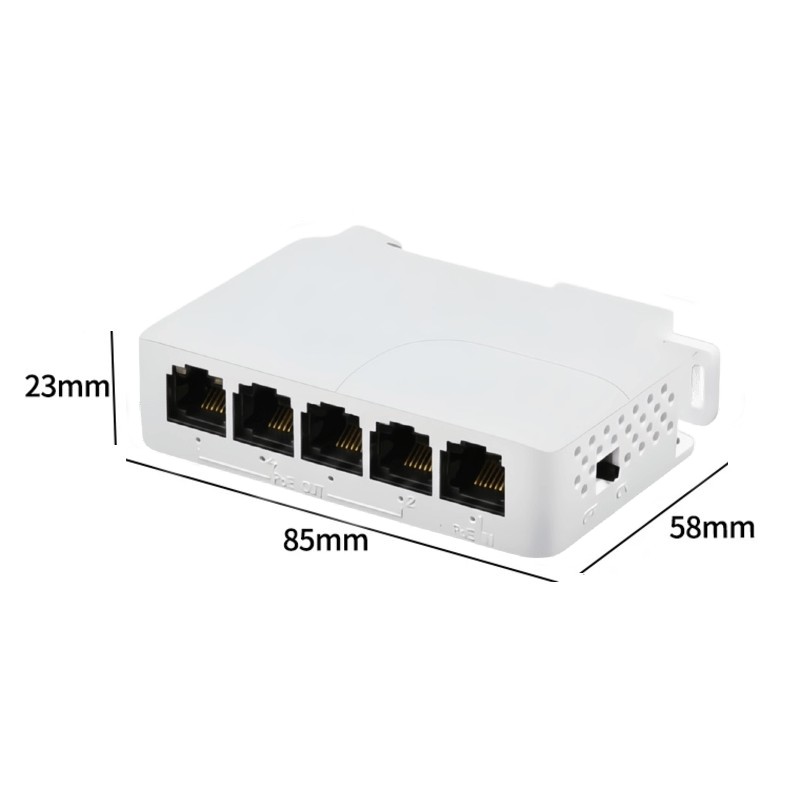

Dimensions |
88 x 58 x 23mm |
|
Weight |
65gr |
| Package Contents: |
|---|
| 1 x SST-BT14F |
|
