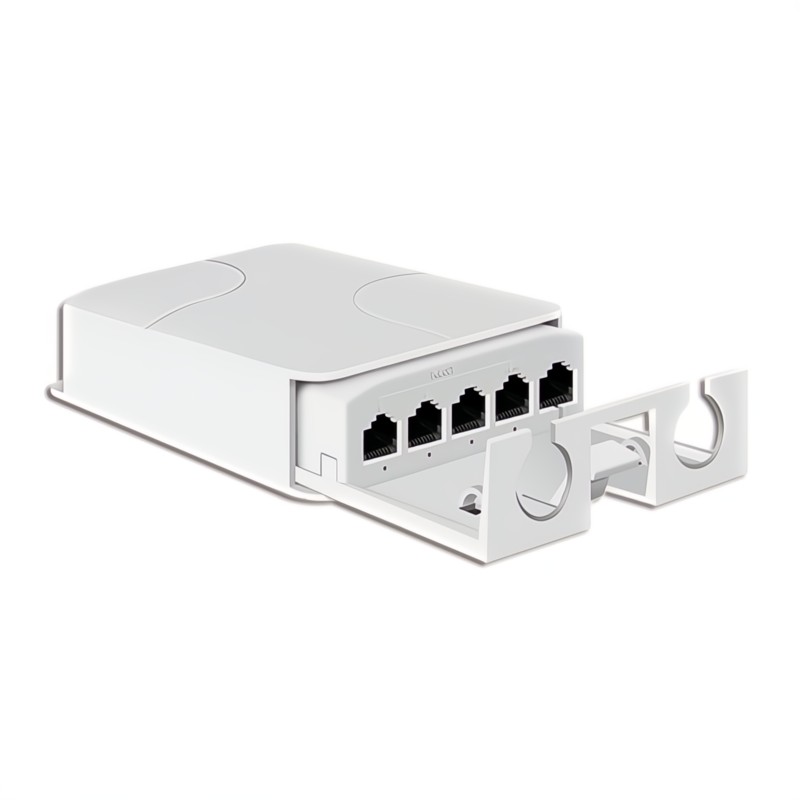

SST-BT14FL POE Extender switch is used to extend Ethernet and POE power transmission distance through Cat5E/Cat6 cable.
Features unique design, 1 port PoE In and 4 ports PoE-Out, SST-BT14FL can not only extend Ethernet and power transmission, but also simplify cabling by running one cable to power 4 POE devices, such as WiFi APs, IP camera, VoIP phone, door bell camera, etc.
|

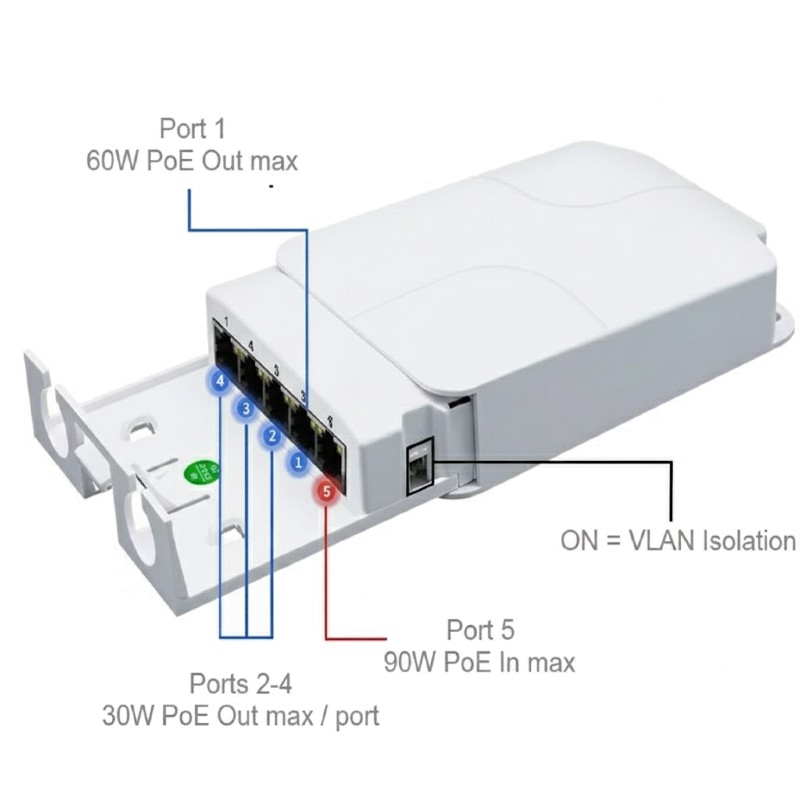

Port# |
PoE |
Power |
Powering |
Mode |
+ Pins |
- Pins |
|
5 |
In |
90W |
4-Pair |
A+B |
1,2,4,5 |
3,6,7,8 |
|
1 |
Out |
60W |
4-Pair |
A+B |
1,2,4,5 |
3,6,7,8 |
|
2-4 |
Out |
30W/port |
2-Pair |
A |
1,2 |
3,6 |
|
Specifications: |
|
Part No |
SST-BT14FL |
|
Ports |
5 x 10/100 Mbps |
|
Power: |
|
PoE type |
PoE in/out |
|
PoE-In |
90W max port 5 |
|
PoE-Out |
60w max port 1 |
|
PoE-Out |
30w max / port 2-4 |
|
PoE In |
PoE In port 5 |
|
PoE Out |
PoE Out ports 2-4 |
|
PoE budget |
90W |
|
Physical: |
|
Chassis |
ABS + PC |
|
Fan |
No |
|
Operating temp |
-10°C to 45°C |
|

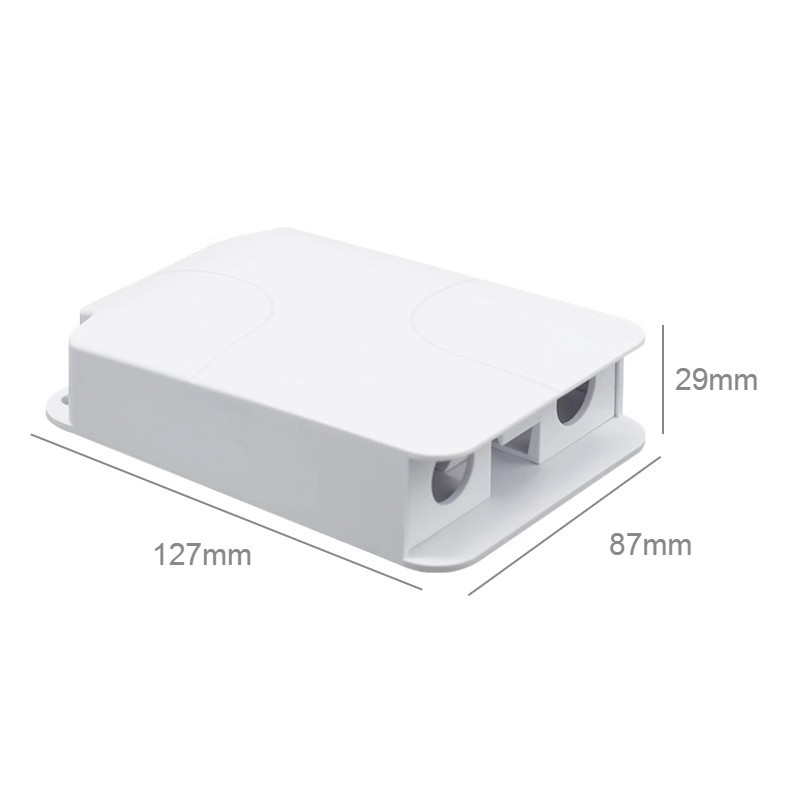

Dimensions |
127 x 87 x 29 mm |
|
Weight |
122 gr |
| Package Contents: |
|---|
| 1 x SST-BT14FL |
|
