Cambium Networks ePMP Force 180, 5 GHz

Available after:
6 Jan 2025
Order Qty:

ePMP Force 180, 5 GHz

The ePMP Force 180 is the second generation of ePMP Integrated Radio Modules. It has the exceptional reliability and quality that users have come to expect from the ePMP product line and adds some significant performance enhancements.

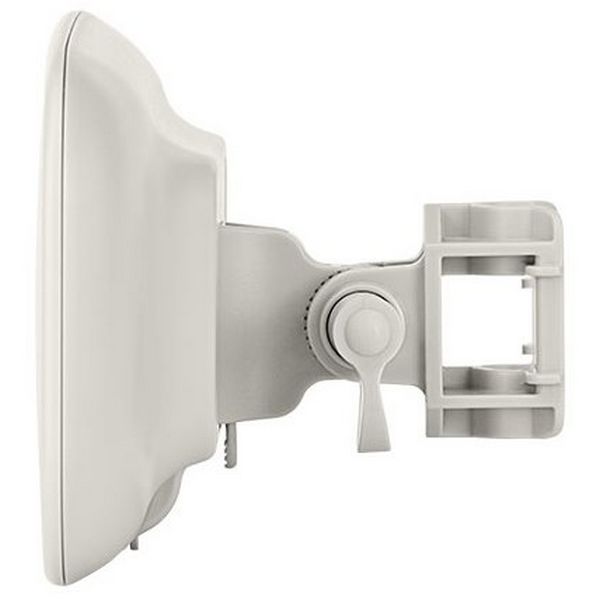

This radio comes in a small, sleek form factor but delivers high performance. The antenna gain is increased by 3 dB to 16 dBi which will provide a 40% increase in range. It comes equipped with a Gigabit Ethernet port so that nothing will limit this product in delivering the maximum throughput. The radio module is powered by PoE and the Ethernet port has the unique capability of being powered from a PoE injector that conforms to standard pinouts or from a PoE injector that conforms to Cambium pinouts. This makes it possible to upgrade existing radio locations to the Force 180 without changing the PoE injector. It also includes an adjustable mounting bracket that eases the task of installing and properly aligning the radio.

All the unique advantages of ePMP software such as eFortify™ and eCommand™ are available with the Force 180. eFortify enhances the performance of the ePMP 1000 in high noise environments. eCommand provides a suite of management features and tools to assist network operators in planning, provisioning and monitoring of their network. The ePMP Force 180 Integrated Radio is a compact and powerful platform that can operate as an Access Point, Subscriber Module or PTP radio.

Specifications
Connectors and Interfaces
LAN speed:  (1) 10/100/1000Mbps
Gigabit LAN:  Yes
GPS modul:  Yes
Physical characteristics
Purpose:  Outdoor
Operating temperature [°C]:  -30 up to 60
Weight [g]:  500
Depth [mm]:  119
Width [mm]:  251
Height [mm]:  124
Power
Power over Ethernet:  10 .. 30V DC
Power type:  PoE
PoE type:  PoE-In (only)
Max. power consumption [W]:  10
Software
IPv6 support:  Yes
Default login and password:  admin / admin
Wireless features
Wireless frequency:  5 GHz
WiFi standards:  802.11n, 802.11a
Transmission speed - WiFi 5GHz [Mb/s]:  300
Tx power 5GHz [dBm]:  30
Security:  128bit AES
5GHz MIMO:  2 x 2
Azimuth beam width (-6dB) [°]:  15, 30
Type of antenna:  Built-in
Internal antennas:  2
Antenna gain [dBi]:  16
