Cambium Networks cnPilot e425H wall plate

No Stock
Order Qty:

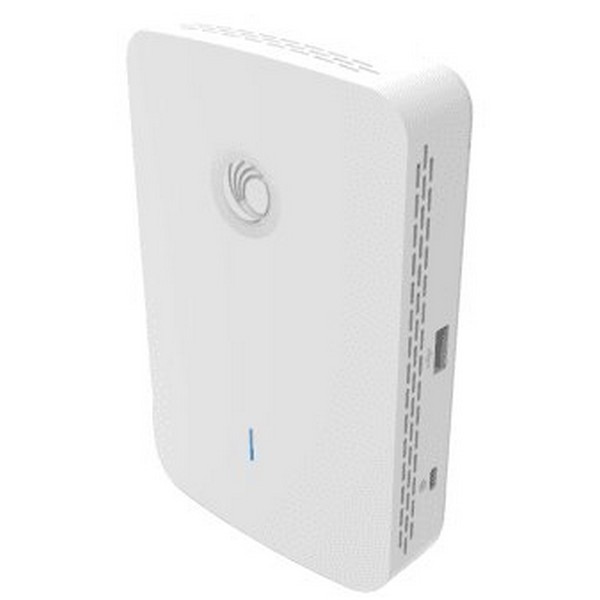

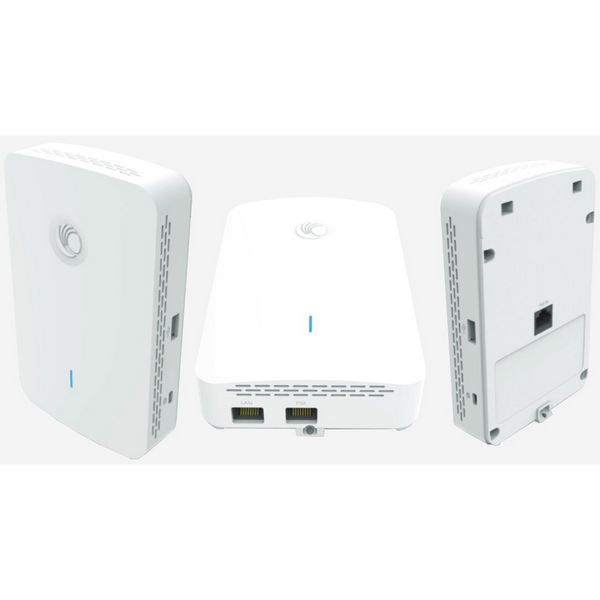

cnPilot e425H Wall Plate - 802.11ac Wave 2, Indoor Wall Plate

The Cambium Networks cnPilot™ e425H enterprise class indoor wall plate access point supporting 802.11ac Wave 2 standards based beamforming, is perfect for hotels and resorts, multi-dwelling units (MDUs) or just about any place indoor that needs a wall mounted AP with multiple Gig E ports to drive indoor Wi-Fi and wired port network access managed via portals.

Cambium Networks wall plate access points (AP) put personal Wi-Fi in the room where people and devices connect. Designed for discreet installation on a flat wall surface or over a wiring box. Both of these high-powered wall plate AP’s include enterprise-grade seamless roaming, automated RF control, beamforming and the latest 802.11ac Wave 2 technology.


Hotel guests connect to Wi-Fi before turning on the TV - Wi-Fi is a must-have to stay connected with coworkers, family and social media. With the e425 wall plate AP, the guest will be delighted with a perfect connection to all their devices. Customize the cloud-managed guest access with a fully configurable cloud portal with templates, point and click interface, or HTML CSS

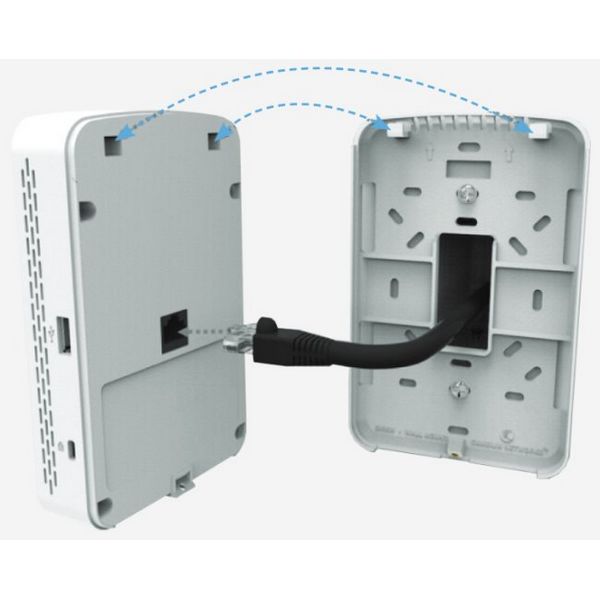

e425 and e430 install quickly over a standard wiring box, or to other boxes and surfaces using the optional mounting adapters. e425 has three gigabit Ethernet ports, while the e430 has four gigabit Ethernet ports. All ports support 802.1Q VLANs, IGMP, switched virtual interface layer 3 routing, DHCP, and firewall. Deliver 15 watts of operating power to an external device such as a VoIP phone, an in-room IoT hub or even another AP. VLAN and IP segmentation allows secure connections to a TV set-top box, laptop, printer, or any networked device

Connectors and Interfaces
LAN speed: (3) 10/100/1000Mbps
Gigabit LAN: Yes
USB: Yes
Physical characteristics
Purpose: Indoor
Operating temperature [°C]: 0 up to 40
Weight [g]: 268
Depth [mm]: 32
Width [mm]: 90
Height [mm]: 147
Power over Ethernet: 802.3af
PoE type: PoE-In (only)
Max. power consumption [W]: 9
Operating mode: Access Point
IPv6 support: Yes
Default IP address:, Dynamic from DHCP
Default login and password: admin / admin
Wireless features
Wireless frequency: 2.4 + 5 GHz (dual band)
WiFi standards: 802.11ac, 802.11n, 802.11a, 802.11b/g
Hotspot 2.0: Yes
Transmission speed - WiFi 2.4GHz [Mb/s]: 300
Transmission speed - WiFi 5GHz [Mb/s]: 866
Tx power 2.4GHz [dBm]: 25
Tx power 5GHz [dBm]: 25
2.4GHz MIMO: 2 x 2
5GHz MIMO: 2 x 2
Type of antenna: Built-in
Antenna gain [dBi]: 4
