Mimosa » 100-00074
Mimosa B24, one complete unit
[2573][100-00074]
Price: 749,63€
 Order or Qty  Price
 > 1000€  5+   742,13€
 > 2000€  10+   734,64€
 > 5000€  20+   727,14€
 > 10000€  40+   719,64€
Prices exclude VAT

Mimosa B24, one complete unit

Ships in:
3-5 working days
Quantity: 20
Order Qty:
UPC:708747437577
EAN:10000074

B24 - Backhaul

Reliable 24 GHz Unlicensed Gigabit Performance

The Mimosa B24 breaks the existing barriers of price, size, performance and power efficiency in the less crowded, unlicensed 24 GHz band.

Price Performance Leader

Delivering nearly a Gigabit of low latency IP traffic in a single direction, the Mimosa B24 is the industry’s price performance leader in unlicensed 24 GHz backhaul. Designed from the ground-up using reliable, high volume components, the B24 achieves incredible performance at a disruptive price that fits the economics of broadband providers and enterprises in suburban and urban markets.

Gigabit on Demand

To meet modern internet traffic needs where nearly 90% of the peak evening traffic demand can be in the download direction, the B24 dynamically adapts to changing demands using Auto-TDMA technology. Low-latency Gigabit throughput can be directed either upstream or downstream as needed to maximize spectrum utilization throughout the day. Legacy FDD radios are limited to symmetric traffic usage, leaving vast amounts of spectrum constantly underutilized.

Unparalleled Reliability

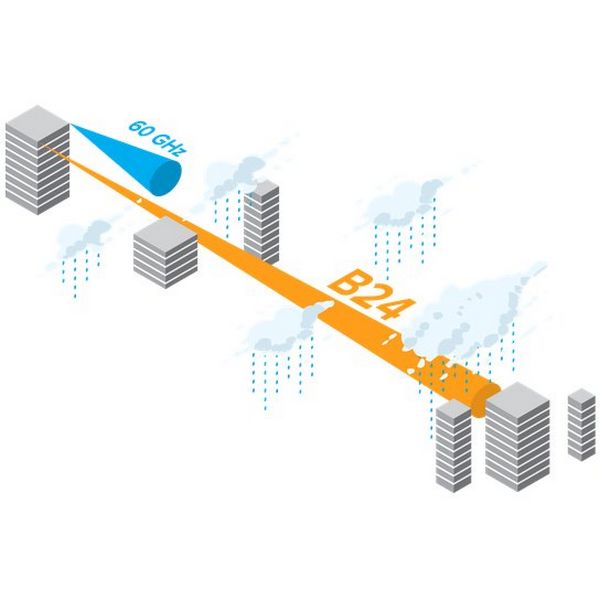

Don’t be distance-limited by higher frequency microwave technology. Use the B24 to avoid the congested 5 GHz spectrum and deliver superior reliability, even with rain, at practical distances up to 3 km (2 mi).

Going the Distance

How will the B24 perform for you? Use this simple link calculator to see what throughput you can expect based on distance, rain and your regulatory requirements. For more detailed link designs, please use the Mimosa Network Design Tool.

Easy to Install

Lightweight

Weighing in at just 2.7 kg (6 lbs), Mimosa’s B24 is incredibly easy to transport and install.

Specifications:
Connectors and Interfaces
LAN speed: (1) 10/100/1000Mbps
Optical interfaces: (1) 1000Mbps
GPS modul: Yes
Physical characteristics
Wind load [km/h]: 200
Radom: Yes
Designed for mast diameter [mm]: 28 up to 60
Operating temperature [°C]: -40 up to 55
Weight [g]: 2700
Depth [mm]: 134
Width [mm]: 260
Height [mm]: 260
Power
Power over Ethernet: 802.3at, 50V DC
Max. power consumption [W]: 19,5
Software
Default IP address: 192.168.1.20
Default login and password: Is set by the user at the first startup
Wireless features
Frequency range [MHz]: 24050 - 24250
Cross-Pol Isolation [dB]: 20
Maximum modulation: 256 QAM
Polarization: VH (slant)
F/B ratio [dB]: 30
Channel bandwidth [MHz]: 20, 40, 80
Transmission speed - 24GHz [Mb/s]: 750
Tx power 24GHz [dBm]: 4
Security: 128bit AES
Azimuth beam width (-6dB) [°]: 3, 3
Antenna gain [dBi]: 33


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
