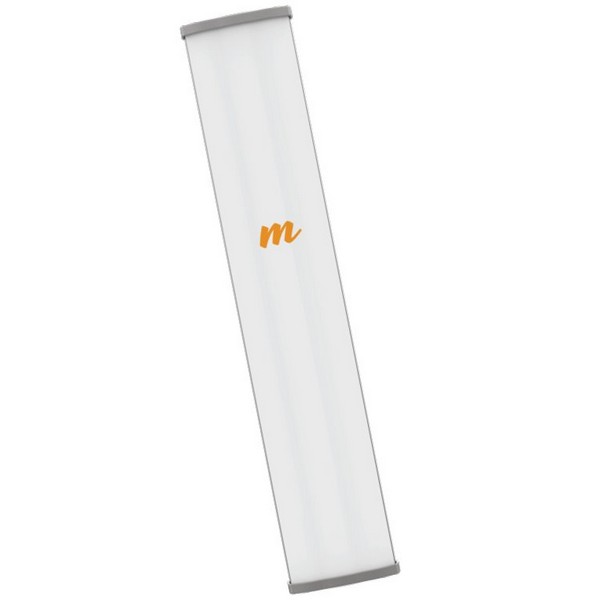

Mimosa N5-45x4 sector slant antenna 45°, 22dBi, 4x N female
[2578][100-00084]
Price: 256,82€
 Order or Qty  Price
 > 500€  5+   254,26€
 > 1000€  10+   251,69€
 > 2000€  20+   249,12€
 > 5000€  40+   246,55€
 > 10000€  100+   243,98€
Prices exclude VAT

Mimosa N5-45x4 sector slant antenna 45°, 22dBi, 4x N female

Ships in:
3-5 working days
Quantity: 27
Order Qty:
UPC:708747437409
EAN:10000084

N5-45x4 - Sector Antenna

The Mimosa N5-45 antennas, deliver all the gain and ground coverage of a sector antenna, with the amazing front-to-back and sidelobe performance of a horn. These 4.9-6.4 GHz, 45-degree sector antennas are custom-engineered for a variety of multipoint applications. All the beamforming gain and ground coverage of a sector. All the sidelobe rejection of a horn.

No Sidelobes

Using state-of-the-art RF design, the N5-45 antennas are custom-engineered to deliver a high-gain, 42o half-power beamwidth with non-existent side lobes.

Industry’s Highest Front-to-Back Ratio

With an front-to-back ratio of 43 dB, the N5-45 antennas utilize metalized end-caps and a precision engineered backplate extrusion to improve noise rejection.

Beamformed High Gain

The N5-45x4, paired exclusively with Mimosa’s 4x4 MIMO A5c access point, achieves +3 dB of beamforming gain in both downlink and uplink.

Specifications
Connectors and Interfaces
RF connectors: (4) N female
Physical characteristics
Wind load [km/h]: 200
Protection class: IP55

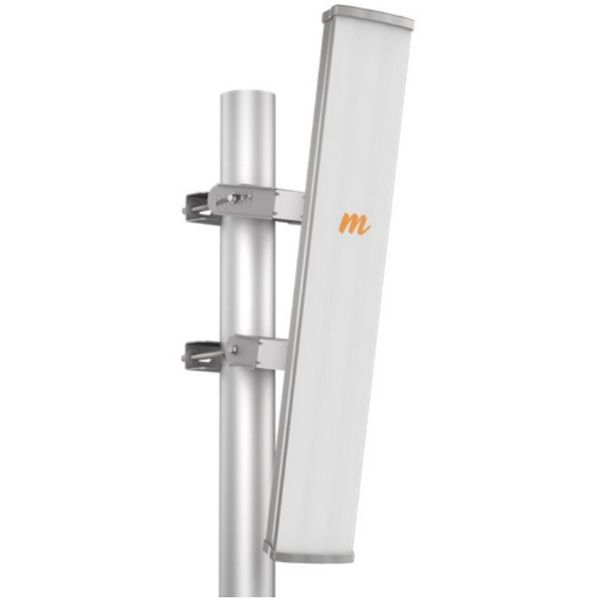

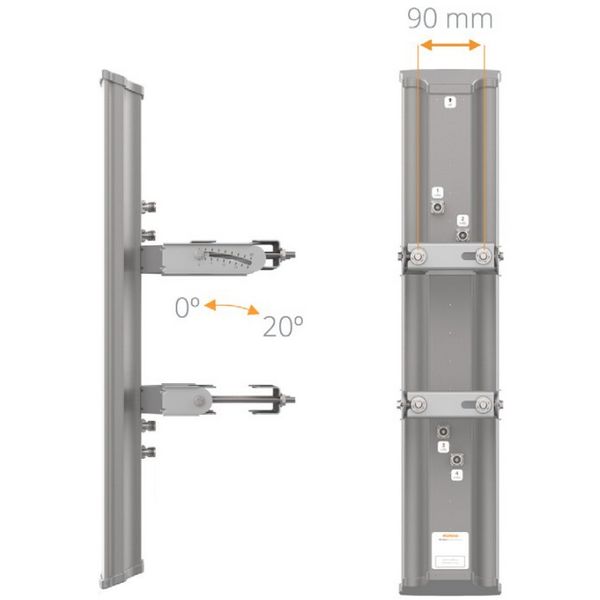

Designed for mast diameter [mm]: 38 up to 90
Purpose: Outdoor
Operating temperature [°C]: -40 up to 55
Weight [kg]: 4,1
Depth [mm]: 76
Width [mm]: 143
Height [mm]: 734
Wireless features
Cross-Pol Isolation [dB]: 30
MIMO, SISO: 4 x 4 (slant - 45° turned)
Polarization: VH (slant)
Wireless frequency: 5 GHz
Azimuth beam width (-6dB) [° C]: 42, 9
Antenna kind: Sector
Antenna gain [dBi]: 22
