Mimosa N5-X12, Horn Twist-on antenna, 12dBi (uses C5x unit)
[N5-X12]
Price: 17,10€
 Order or Qty  Price
 > 500€  5+   16,93€
 > 1000€  10+   16,76€
 > 2000€  20+   16,59€
 > 5000€  40+   16,42€
 > 10000€  100+   16,25€
Prices exclude VAT

Mimosa N5-X12, Horn Twist-on antenna, 12dBi (uses C5x unit)

Ships in:
3-5 working days
Order Qty:

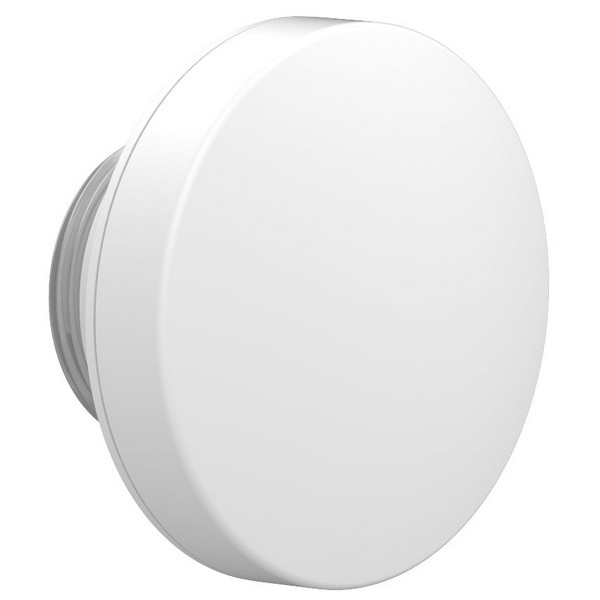

N5-X12 is symetric horn antenna with gain 12dBi and beamwidth angle 38° for use with C5x units. C5x is connected with antenna by Twist-on connector which eliminates loss on VF cables and connectors.

Antenna is Dual-Slant, polarizations are turn over by 45°. The is 1pc in package!

Specifications:
Connectors and Interfaces
RF connectors: Twist-on port (Mimosa)
Physical characteristics
Wind load [km/h]: 200
Purpose: Outdoor
Weight [kg]: 0,15
Depth [mm]: 67
Width [mm]: 76
Height [mm]: 76
Wireless features
MIMO, SISO: 2 x 2 (slant - 45° turned)
Polarization: VH (slant)
F/B ratio [dB]: 29
Wireless frequency: 5 GHz

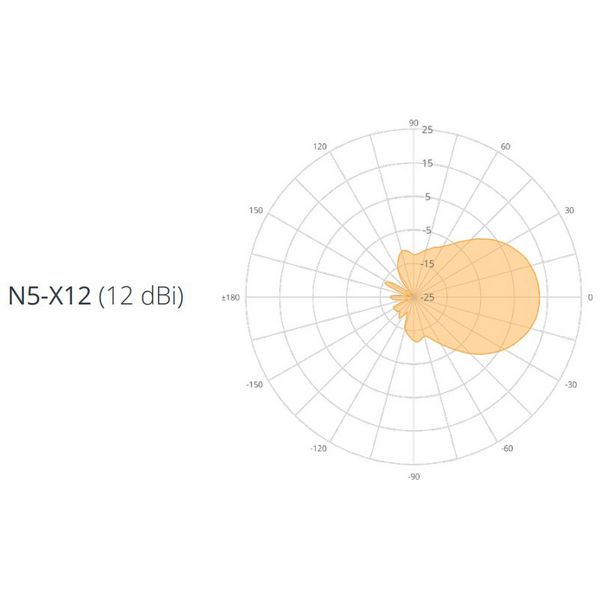

Azimuth beam width (-6dB) [°]: 38, 0,5

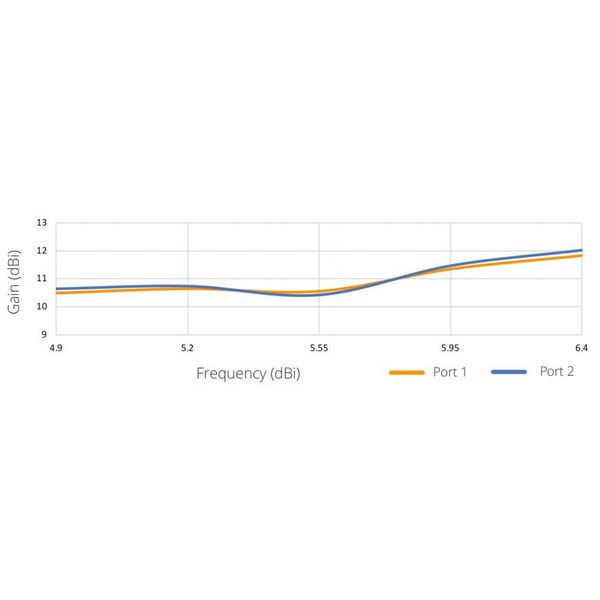

Antenna gain [dBi]: 12


Additional Images:
