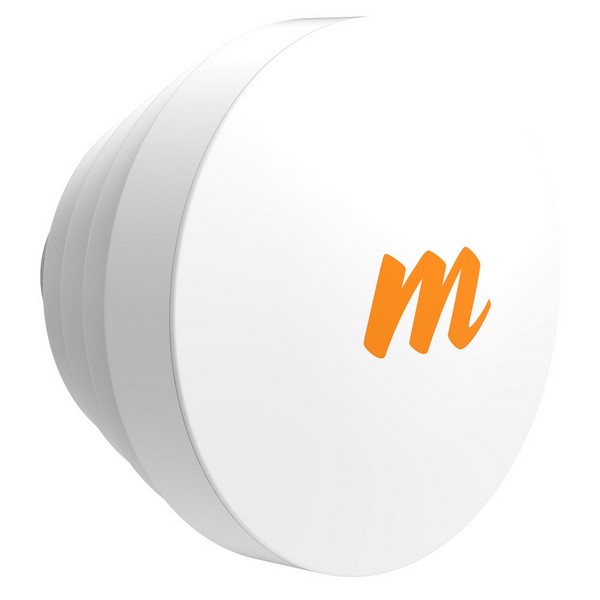

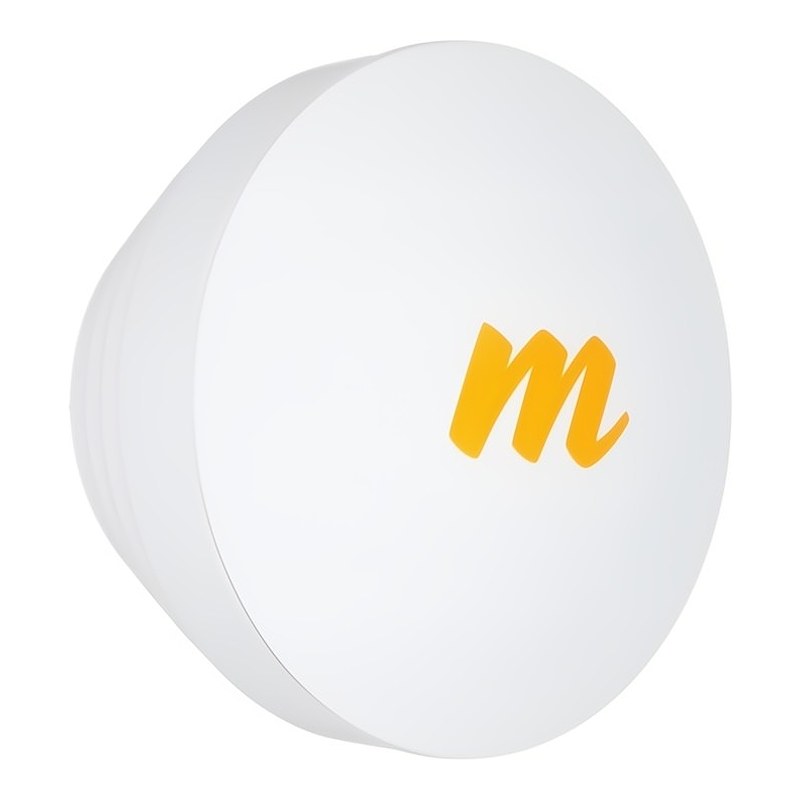

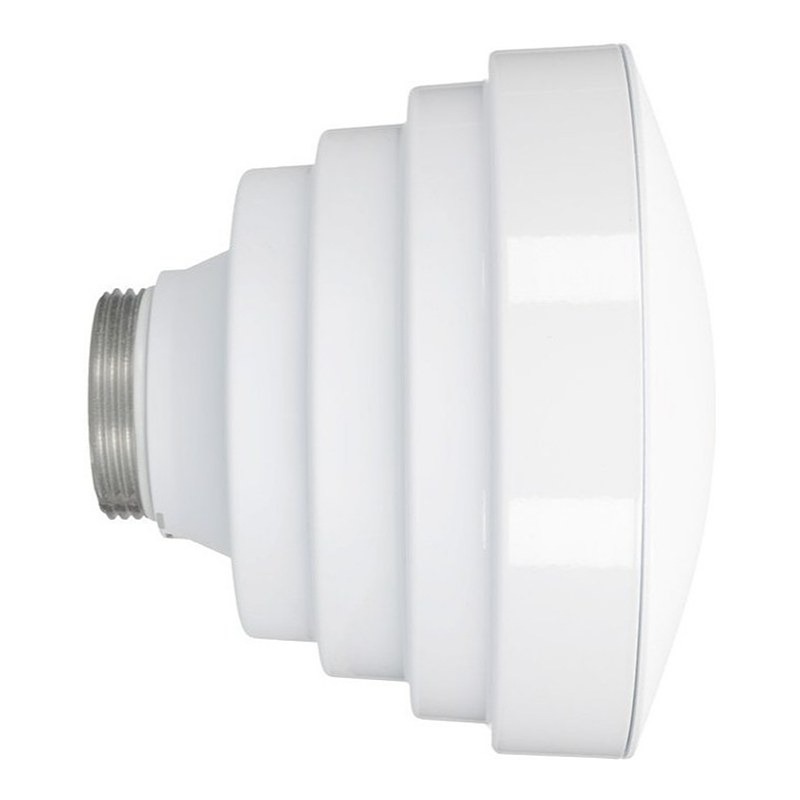

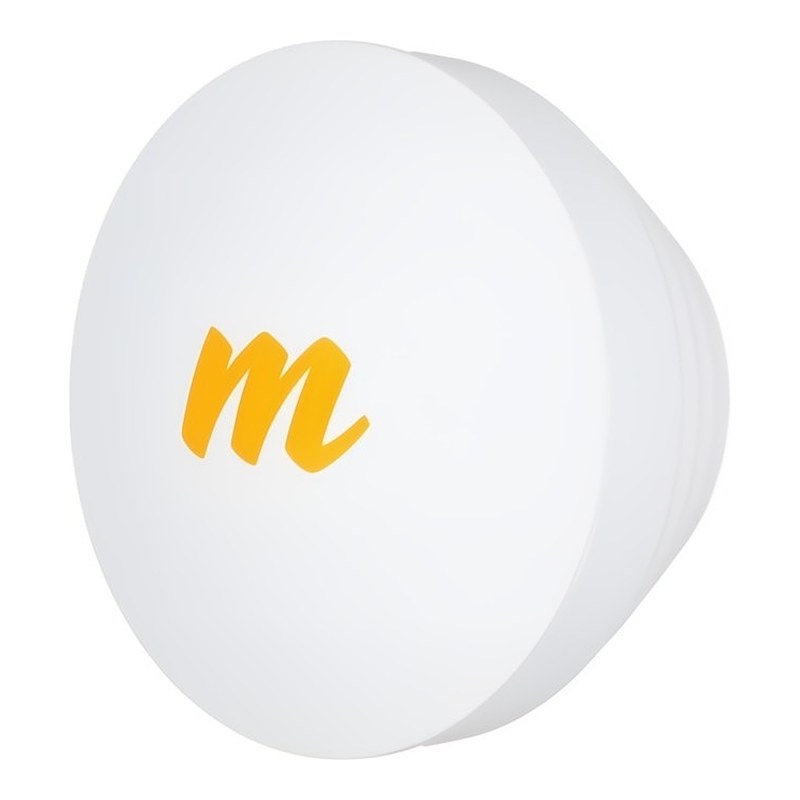

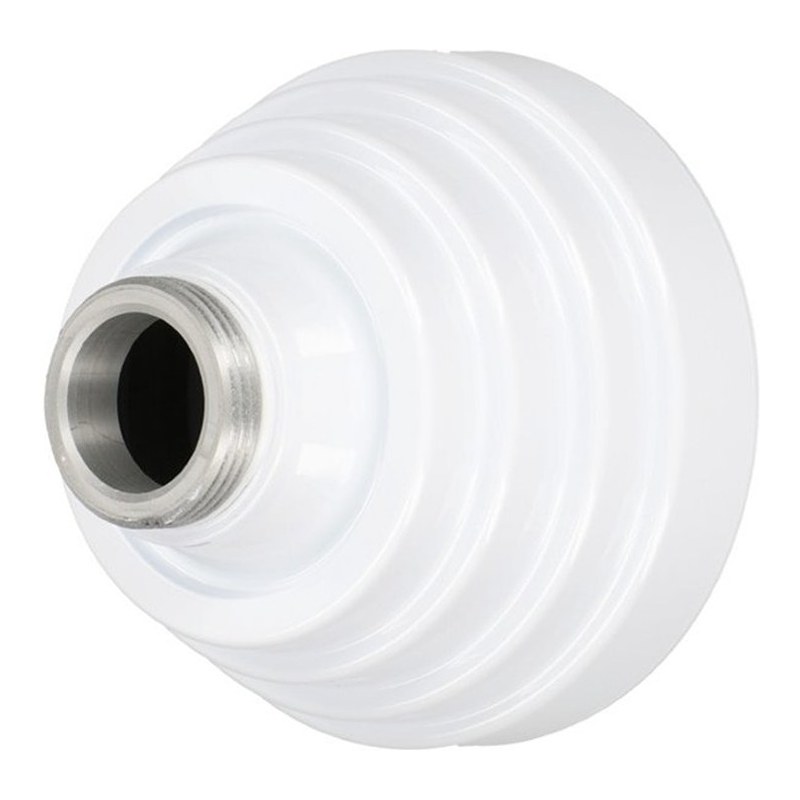

N5-X16 is symetric horn antenna with gain 16dBi and beamwidth angle 22° for use with C5x units. C5x is connected with antenna by Twist-on connector which eliminates loss on VF cables and connectors.
Antenna is Dual-Slant, polarizations are turn over by 45°. The is 1pc in package!
|
Specifications: |
|
Connectors and Interfaces |
|
RF connectors |
Twist-on port (Mimosa) |
|
Physical characteristics |
|
Wind load [km/h] |
200 |
|
Purpose |
Outdoor |
|
Weight [kg] |
0,6 |
|
Depth [mm] |
116 |
|
Width [mm] |
160 |
|
Height [mm] |
160 |
|
Wireless features |
|
MIMO, SISO |
2 x 2 (slant - 45° turned) |
|
Polarization |
VH (slant) |
|
Wireless frequency |
5 GHz |
|

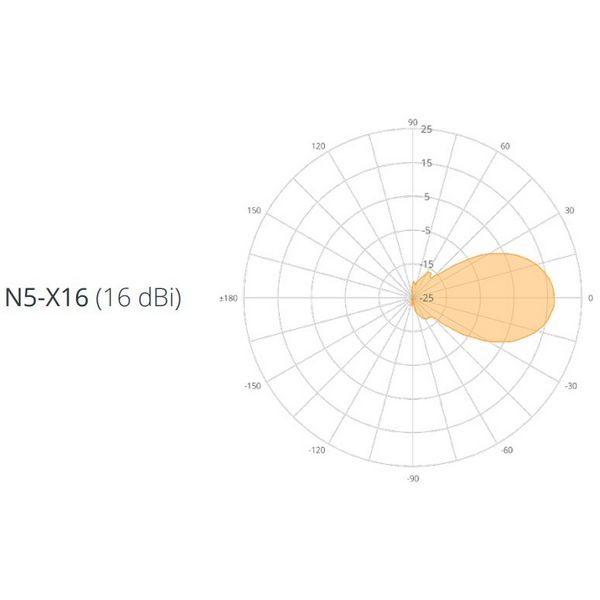

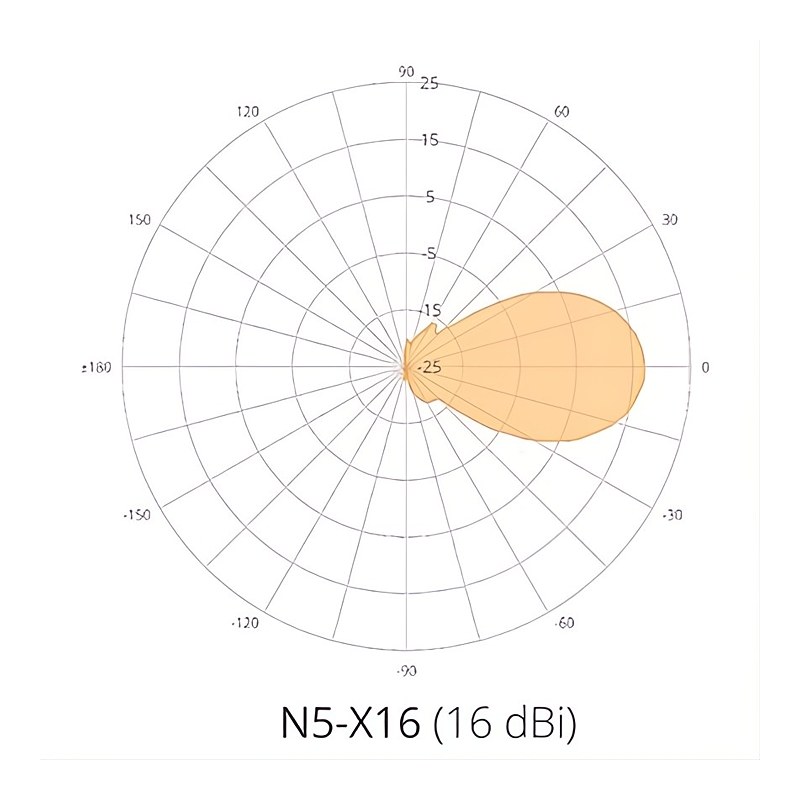

Azimuth beam width (-6dB) [°] |
22, 22 |
|
Antenna kind |
Sector |
|

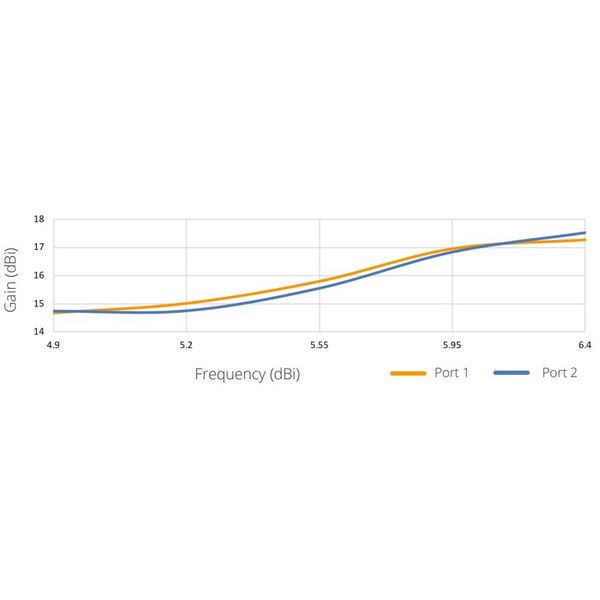

Antenna gain [dBi] |
16 |
