Mimosa » 100-00083
Mimosa N5-45x2, sector slant antenna 45°, 19dBi, 2x N female
[2588][100-00083]
Price: 183,84€
 Order or Qty  Price
 > 500€  5+   182,00€
 > 1000€  10+   180,16€
 > 2000€  20+   178,32€
 > 5000€  40+   176,49€
 > 10000€  100+   174,65€
Prices exclude VAT

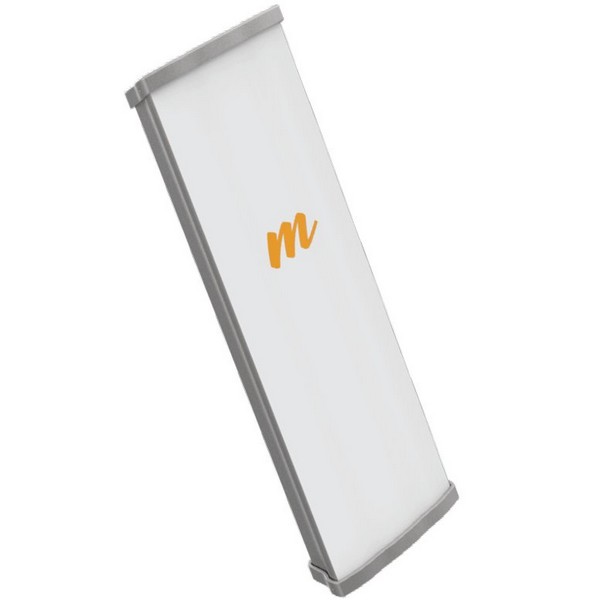

Mimosa N5-45x2, sector slant antenna 45°, 19dBi, 2x N female

Ships in:
3-5 working days
Quantity: 15
Order Qty:
EAN:10000083

N5-45x2

The Mimosa N5-45 antennas, deliver all the gain and ground coverage of a sector antenna, with the amazing front-to-back and sidelobe performance of a horn. These 4.9-6.4 GHz, 45-degree sector antennas are custom-engineered for a variety of multipoint applications. All the beamforming gain and ground coverage of a sector. All the sidelobe rejection of a horn.

No Sidelobes

Using state-of-the-art RF design, the N5-45 antennas are custom-engineered to deliver a high-gain, 42o half-power beamwidth with non-existent side lobes.

Industry’s Highest Front-to-Back Ratio

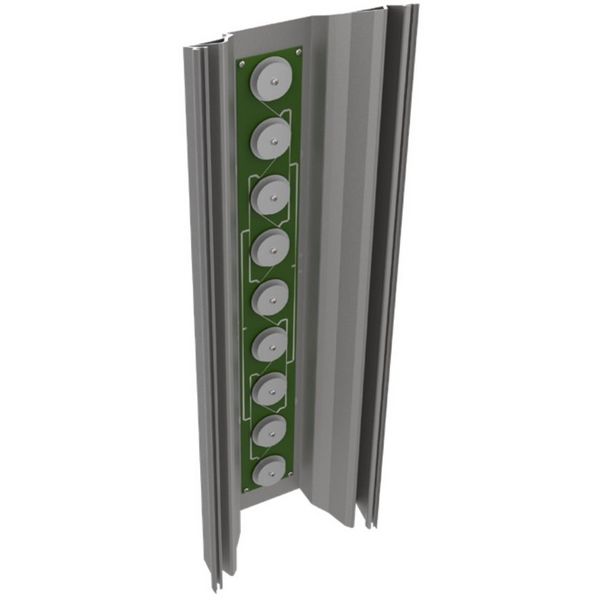

With an front-to-back ratio of 43 dB, the N5-45 antennas utilize metalized end-caps and a precision engineered backplate extrusion to improve noise rejection.

Supports Third-Party Access Points

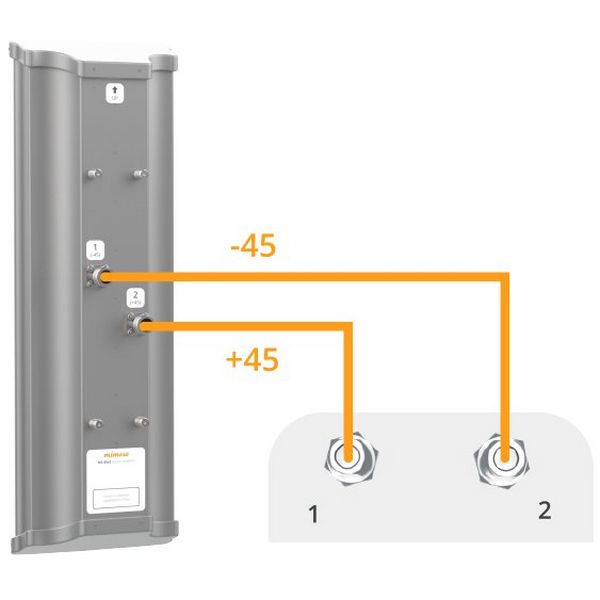

Improve performance and noise rejection by using the N5-45x2 with any 2x2 access point.

Specifications:
Connectors and Interfaces
RF connectors: (2) N female
Physical characteristics
Wind load [km/h]: 200
Designed for mast diameter [mm]: 38 up to 90
Purpose: Outdoor
Weight [kg]: 4,7
Depth [mm]: 76
Width [mm]: 143
Height [mm]: 427
Wireless features
Cross-Pol Isolation [dB]: 30
MIMO, SISO: 2 x 2 (slant - 45° turned)
Polarization: VH (slant)
Wireless frequency: 5 GHz
Azimuth beam width (-6dB) [°]: 45, 9
Antenna kind: Sector
Antenna gain [dBi]: 19


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
