Mimosa » 100-00037-01
Mimosa A5c, PTMP access point 802.11ac, 4x N female, Extended Frequency
Price: 610,58€
 Order or Qty  Price
 > 500€  5+   604,48€
 > 1000€  10+   598,37€
 > 2000€  20+   592,27€
 > 5000€  40+   586,16€
 > 10000€  100+   580,05€
Prices exclude VAT

Mimosa A5c, PTMP access point 802.11ac, 4x N female, Extended Frequency

Available after:
Order Qty:


The new model A5c-EF (Extended Frequency) can operate from the 4900MHz up to 6400MHz frequency spectrum, which is next 200MHz above further than the previous model.

Increased Capacity at Each Site.

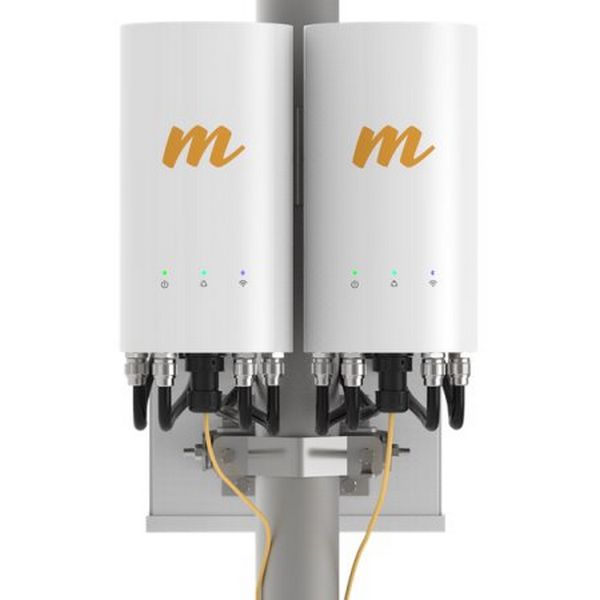

With integrated high precision GPS Sync technology, new A5c sectors can easily be added at existing Mimosa A5 and B5 sites and reuse the same channel. This saves valuable, scarce unlicensed spectrum resources when new A5c devices are installed “back-to-back” on the same tower or pole.

Ultra-High Client Capacity

TDMA techniques provide significant improvements when scaling the number of clients. By dynamically allocating timeslots and supporting Multi-User MIMO in the downstream direction and allocating upstream timeslots upon client request, network scale, spectrum efficiency and access point utilization are optimized to the highest degree possible.

Fiber Speeds

With client speeds capable of 500+ Mbps and access point capacity up to 1.5 Gbps, the A5 delivers the speeds consumers and business users demand at a fraction of the cost of delivering fiber-to- the-premises.

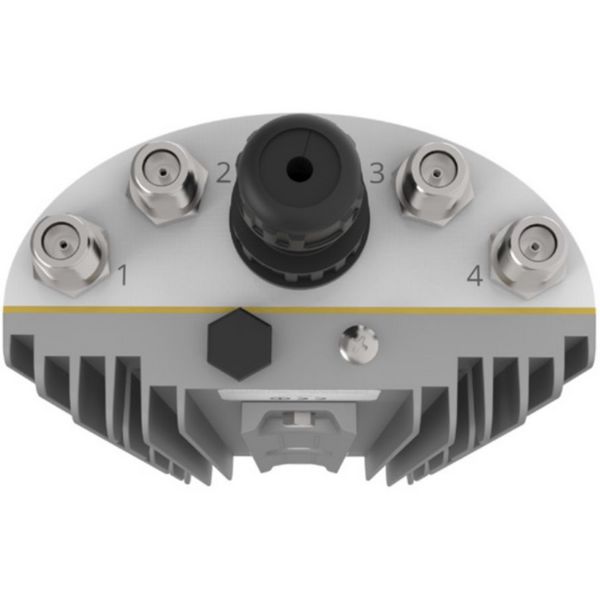

Connectors and Interfaces
RF connectors: (4) N female
LAN speed: (1) 10/100/1000Mbps
Gigabit LAN: Yes
GPS modul: Yes
Other features: WiFi management radio
Physical characteristics
Purpose: Outdoor
Operating temperature [°C]: -40 up to 55
Weight [g]: 1750
Depth [mm]: 85
Width [mm]: 151
Height [mm]: 300
Power over Ethernet: 802.3at
PoE type: PoE-In (only)
Max. power consumption [W]: 25
Operating mode: Access Point
Default IP address: Dynamic from DHCP,
Default login and password: Is set by the user at the first startup
Wireless features
Sensitivity [dBm]: -93
Maximum modulation: 256 QAM
Wireless frequency: 5 GHz
WiFi standards: Mimosa SRS, WiFi Interop
Transmission speed - WiFi 5GHz [Mb/s]: 1733
Tx power 5GHz [dBm]: 30
Security: WPA2 PSK & Enterprise 802.1x;Radius provisioning, COA, DM; 128-bit AESwith hardware acceleration
5GHz MIMO: 4 x 4
Type of antenna: Detachable
Detachable antennas: 4
