Mimosa » 100-00018

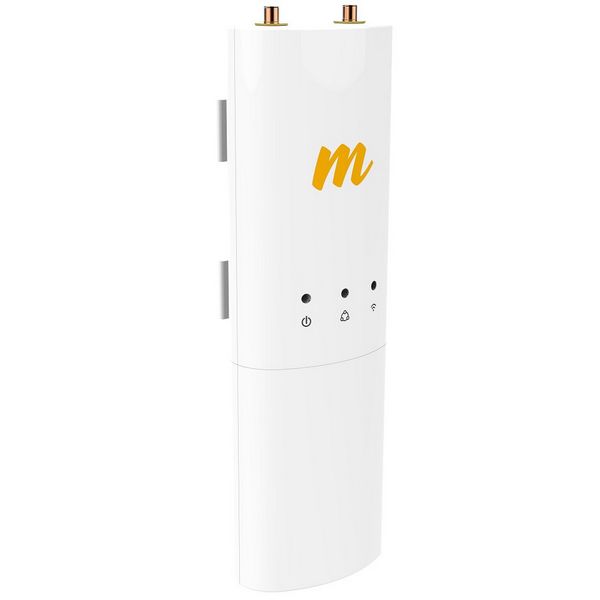

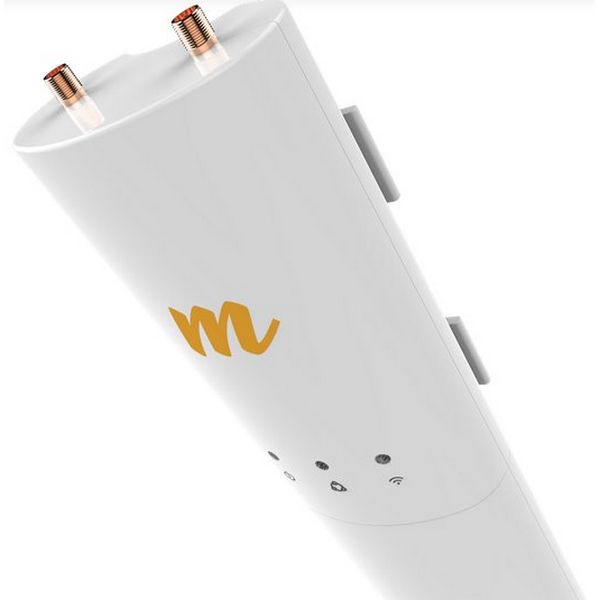

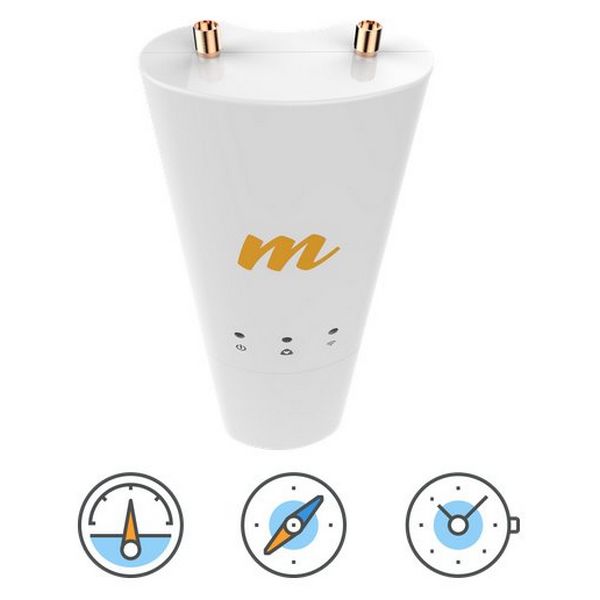

Mimosa C5c, PTP and PtMP unit, 2x RSMA female, without PoE injector
[2750][100-00018]
Price: 159,62€
 Order or Qty  Price
 > 500€  5+   158,03€
 > 1000€  10+   156,43€
 > 2000€  20+   154,84€
 > 5000€  40+   153,24€
 > 10000€  100+   151,64€
Prices exclude VAT

Mimosa C5c, PTP and PtMP unit, 2x RSMA female, without PoE injector

In Stock: 2

Available quantity within
3-5 working days: 99
Order Qty:
UPC:708747439731
EAN:10000018-01

C5c has been designed specifically to handle long-range backhaul (PTP), point-to-multipoint (PTMP) GigaPoP links, and PTMP MicroPoP links impaired by vegetation. Connectorized by design, the C5c mates with many popular antennas, delivering 500+ Mbps of TCP throughput.

The Mimosa C5c is a flexible connectorized client radio solution for accommodating long range and custom antenna solutions. Incorporating unique Multi-User MIMO technology and TDMA client technology for the Mimosa GPS sync enabled network, the C5c enables the fastest speeds and is the most scalable wireless access solution available today. The C5c is ideal for professionally installed rural fixed wireless and long range applications.

Flexible Antenna Options

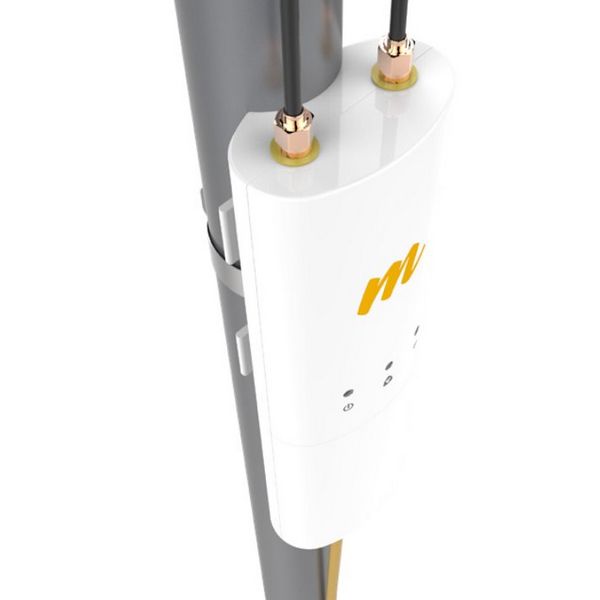

Connect to virtually any dual polarization antenna to custom engineer longer distance client links. The C5c has dual RP-SMA connectors for easy cabled antenna connectivity. It can be mounted to any pole via hose clamps or easily clipped onto antennas supporting compatible clip-on mounting bracket systems

Multi-User MIMO

A key component to scaling networks efficiently is leveraging innovative new Multi-User capabilities. With MU-MIMO, multiple clients on the same access point are coordinated by the access point to simultaneously share spectrum “spatially” via unique antenna beamforming. Each client device shares spatial geographic information with its associated Mimosa A5 device to allow coordination of the shared spectrum. This radically improves multipoint access scaling and spectral efficiency.

TDMA GPS Sync Client

The C5c offers client-side support for the Mimosa A5 multipoint GPS sync enabled TDMA protocol. This ensures each client device precisely receives and transmits under the timing control of the access point and can dynamically request upstream bandwidth. As opposed to alternative (fixed) timeslot protocols, upstream bandwidth and latencies are allocated on demand which enables significantly higher overall upstream network bandwidth utilization.

Specifications:
Connectors and Interfaces
RF connectors: (2) RSMA female
LAN speed: (1) 10/100/1000Mbps
Gigabit LAN: Yes
Physical characteristics
Purpose: Outdoor
Operating temperature [°C]: -40 up to 55
Weight [g]: 295
Depth [mm]: 44
Width [mm]: 65
Height [mm]: 188
Power
Power over Ethernet: 24 .. 56V DC
PoE type: PoE-In (only)
Max. power consumption [W]: 12,9
Software
Operating mode: Client, Bridge
Default IP address: 192.168.1.20
Default login and password: Is set by the user at the first startup
Wireless features
Sensitivity [dBm]: -93
Wireless frequency: 5 GHz
WiFi standards: Mimosa SRS, WiFi Interop
MU-MIMO: Yes
Transmission speed - WiFi 5GHz [Mb/s]: 866
Tx power 5GHz [dBm]: 27
Security: WPA2 PSK & Enterprise 802.1x;Radius provisioning, COA, DM; 128-bit AESwith hardware acceleration
5GHz MIMO: 2 x 2
Type of antenna: Detachable
Detachable antennas: 2


Additional Images:

Return for:
Refund: Store Credit: Repair:
20 day(s) 40 day(s) 24 month(s)
